Tribute DX 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Locations
>>

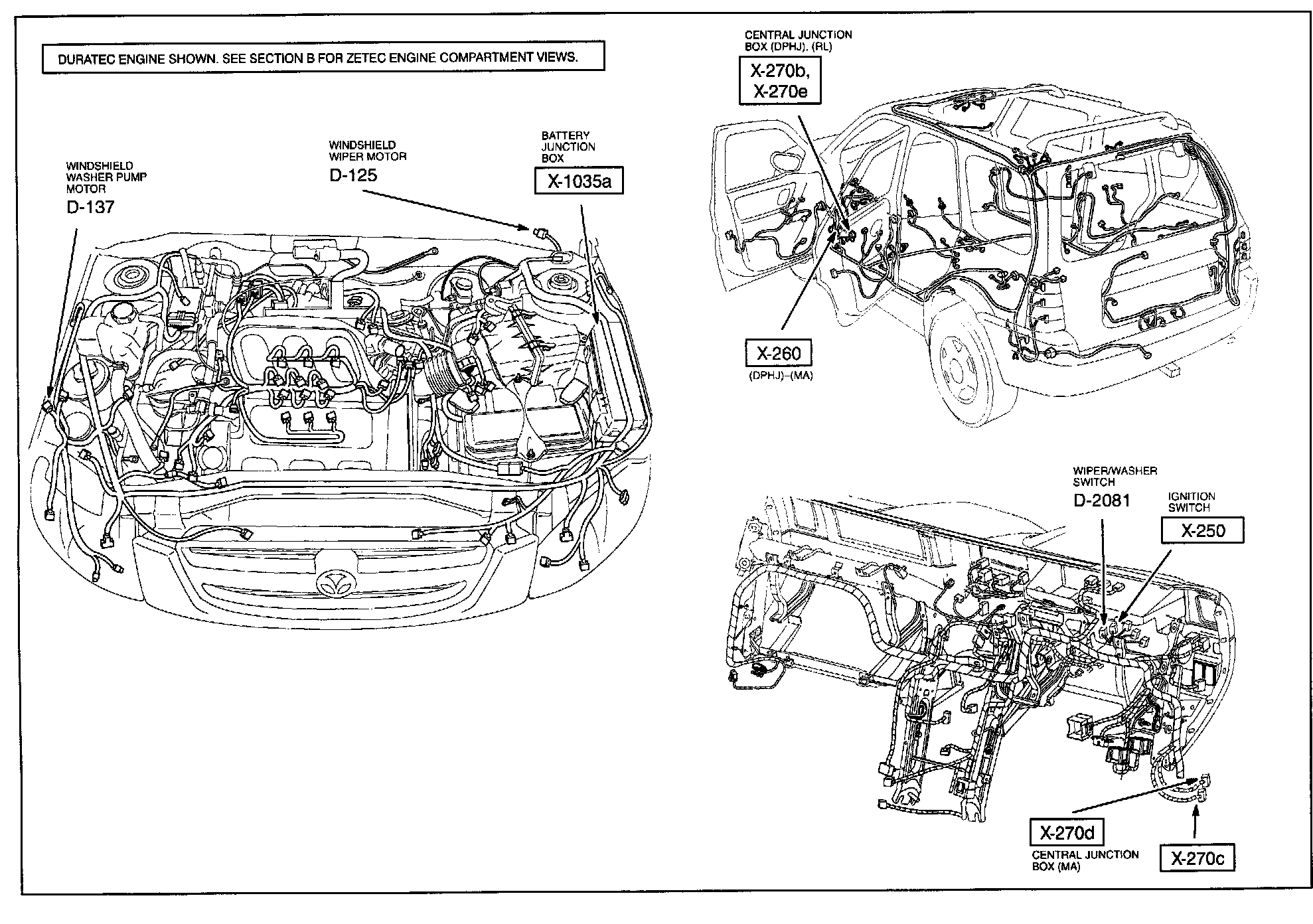

Connector Locations
Connector Locations
D-a - Interval Wiper/Washer Harness/connector Symbols:
D-b - Interval Wiper/Washer Harness/Connector Symbols:
