Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2001 >> Tribute DX 4WD L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

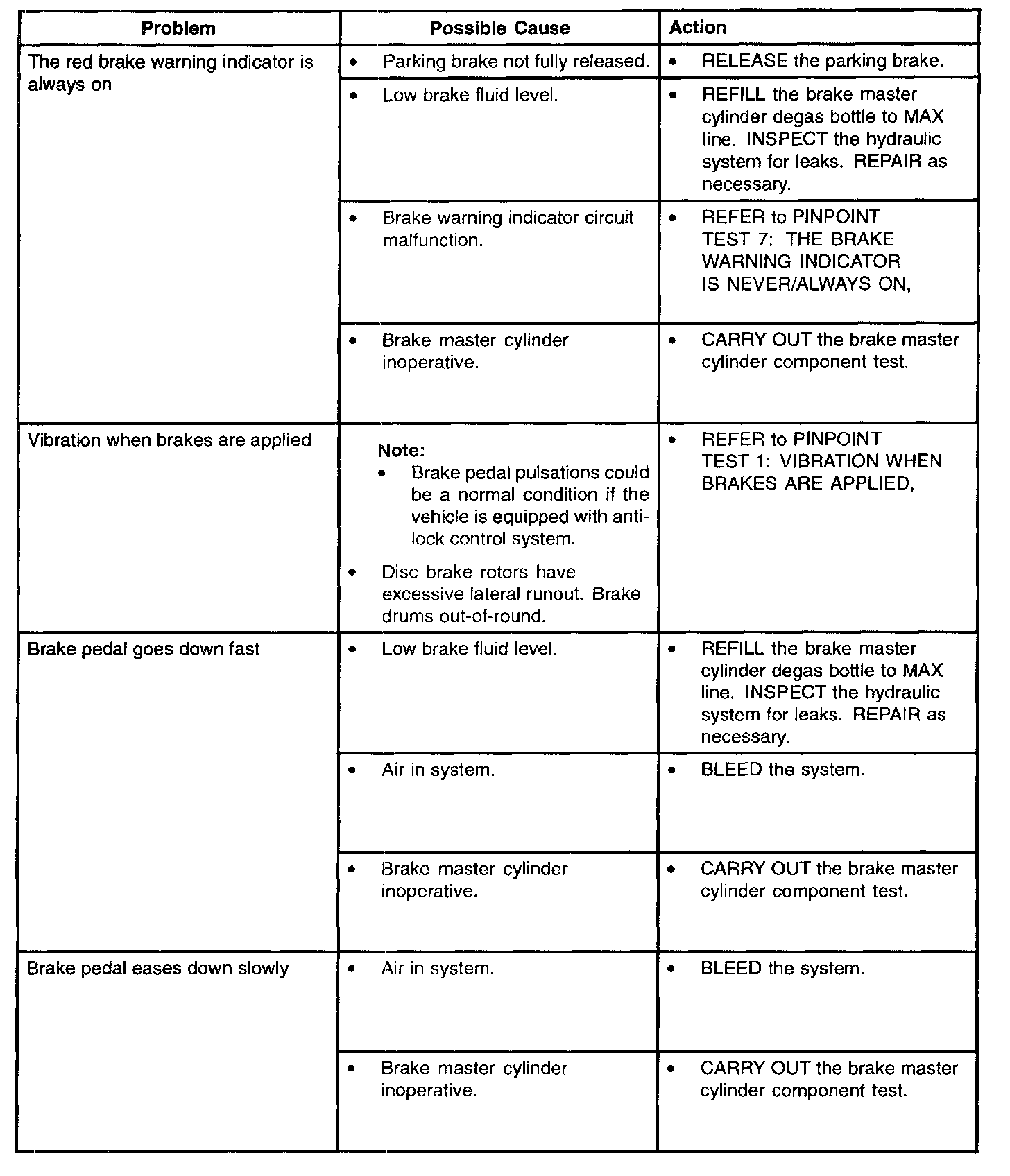

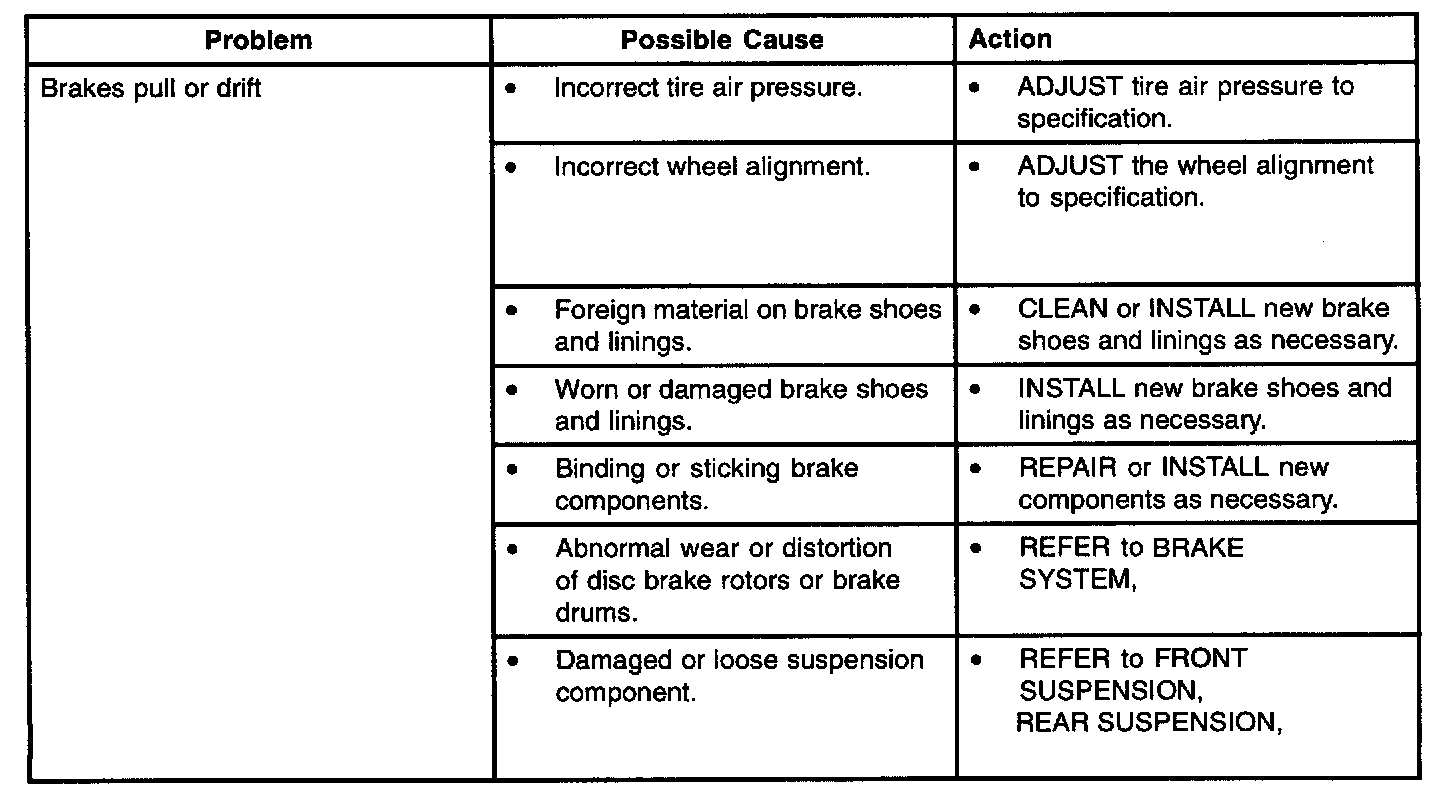

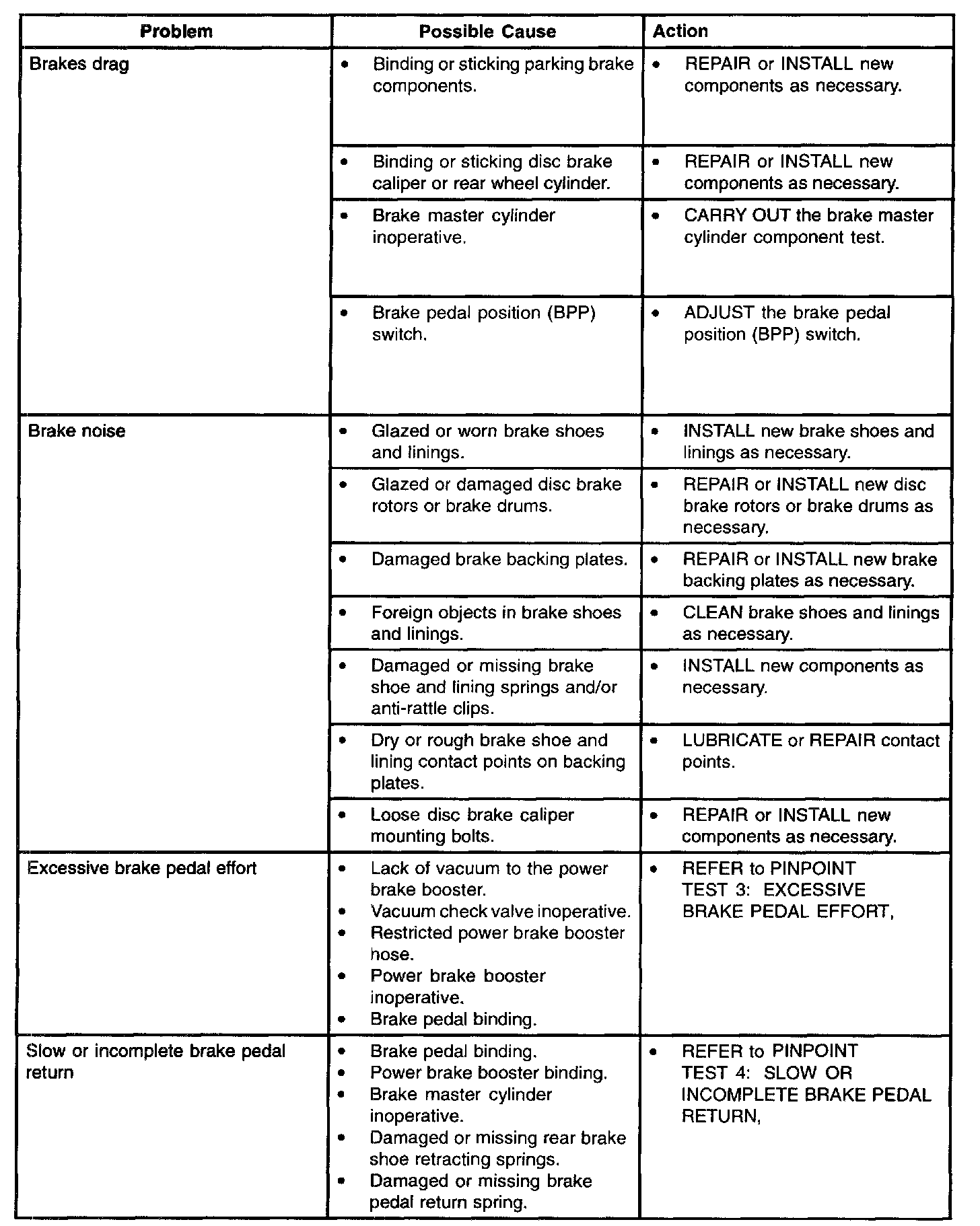

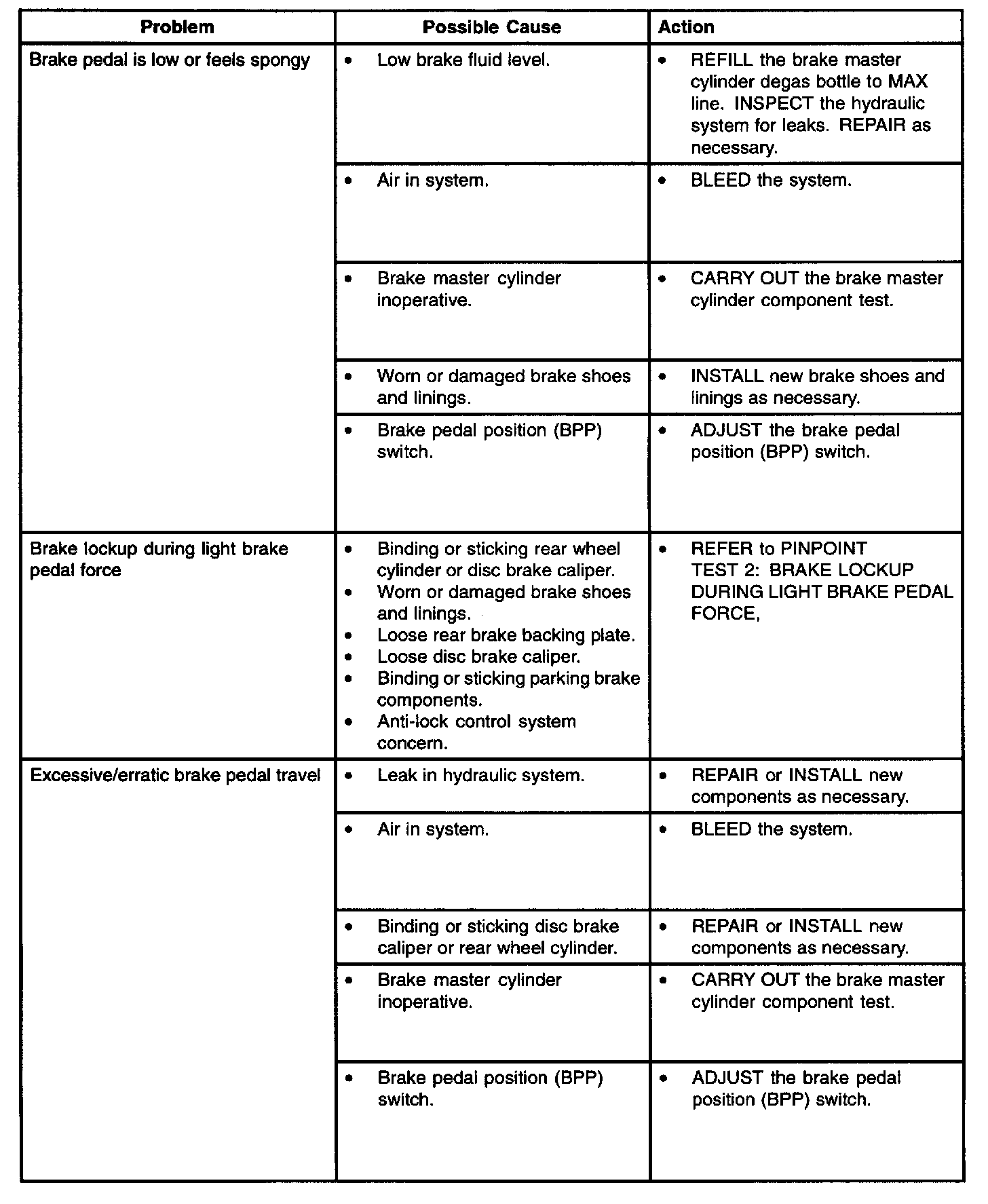

TROUBLESHOOTING INDEX





Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4
