Backup Lamp: Service and Repair

REAR LAMP ASSEMBLY

Removal and Installation

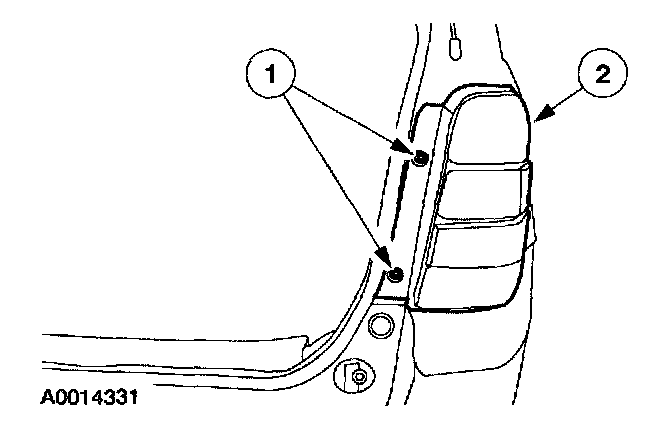

1. Remove the rear lamp assembly.
1. Remove the bolts.
2. Pull straight back to remove the rear lamp assembly.
3. Disconnect the electrical connectors.

2. To install, reverse the removal procedure.
