Electrical Diagrams

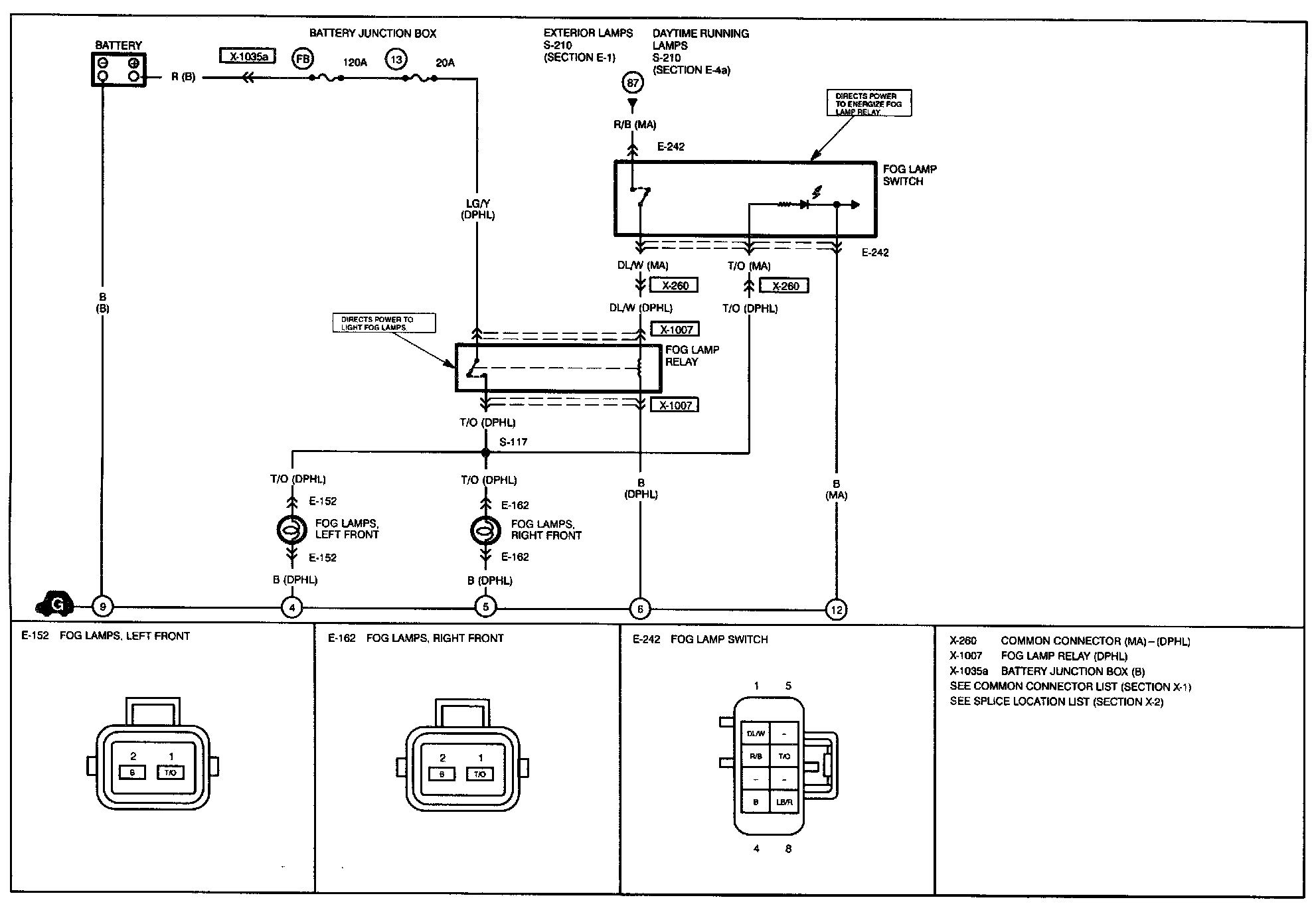

E-2 - Exterior Lamps Circuit (Fog Lamps):

E-4a - Exterior Lamps Circuit (Fog Lamps):

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
