Mazda
>>
2001
>>
Tribute ES 2WD V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Locations
>>
Connector Locations
Connector Locations

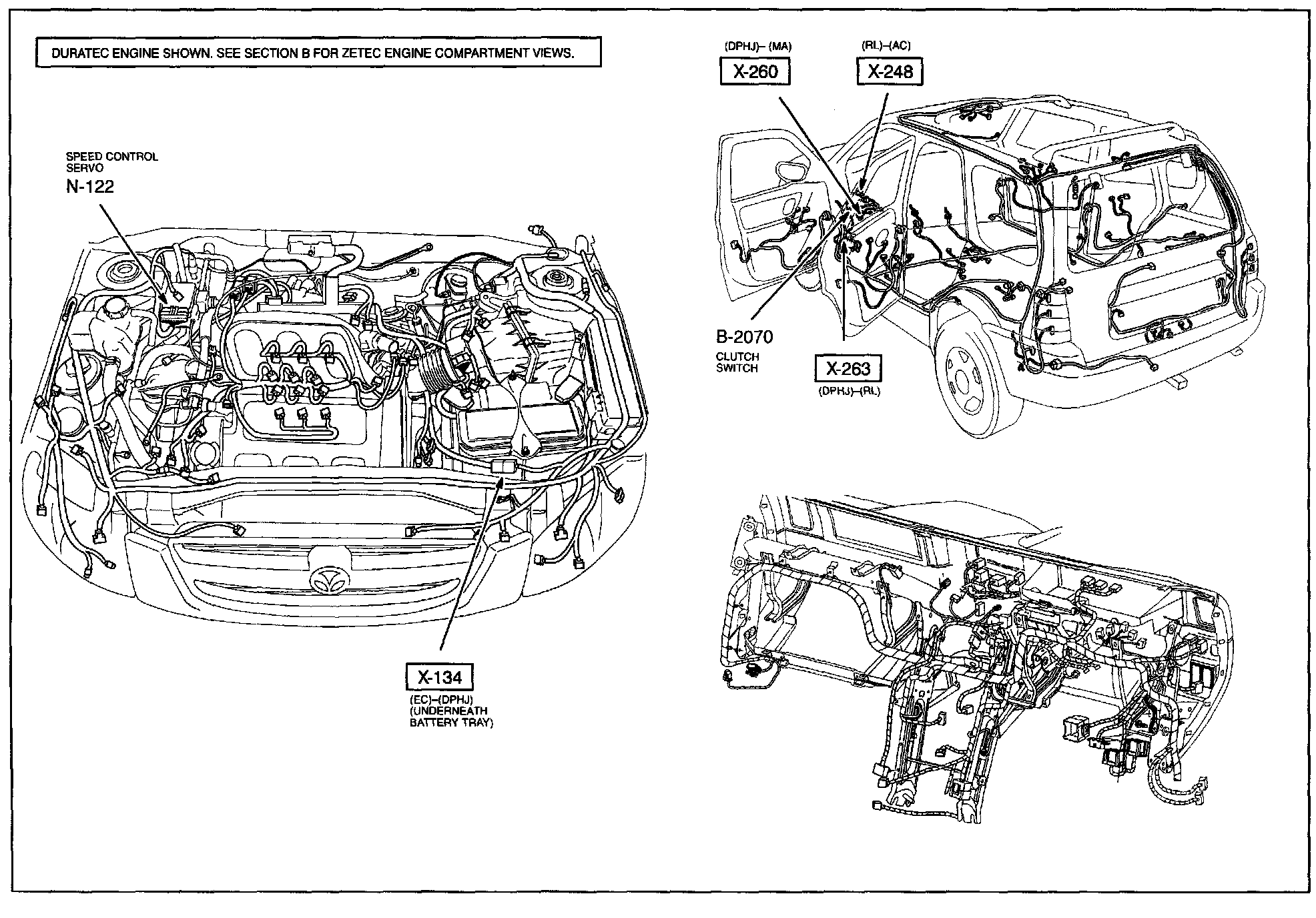

N-a - Cruise Control Harness/Connector Symbols:

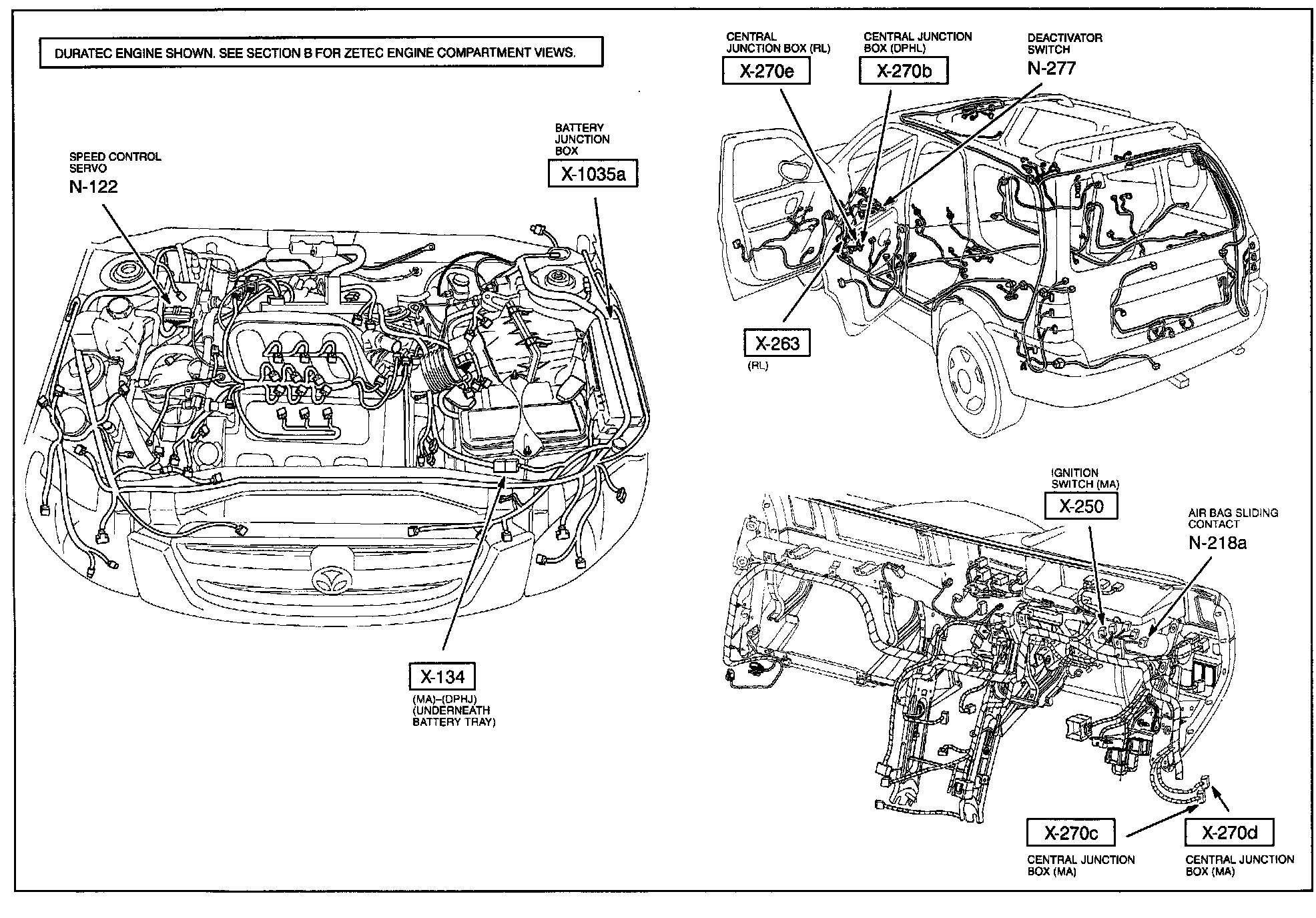

N-b - Cruise Control Harness/Connector Symbols:
