A/C Compressor Removal and Installation

Removal and Installation

CAUTION: To prevent refrigerant system contamination, if you are installing a new A/C compressor because the A/C compressor has failed internally, you must use the following procedures:

NOTE: Installation of a new suction accumulator is not necessary when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. If an A/C Flusher is available, carry out the air conditioning (A/C) system flushing general procedure.
2. If the A/C Flusher is not available, carry out the refrigerant system filtering following air conditioning (A/C) component installation general procedure. For additional information, see REFRIGERANT SYSTEM FILTERING FOLLOWING AIR CONDITIONING (A/C) COMPONENT INSTALLATION.
3. Install a new A/C evaporator core orifice.
4. Remove the drive belt.

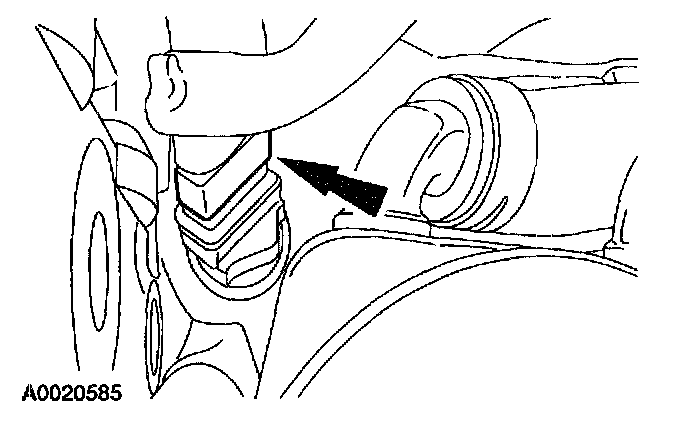

5. If equipped, disconnect the engine block heater electrical connector.

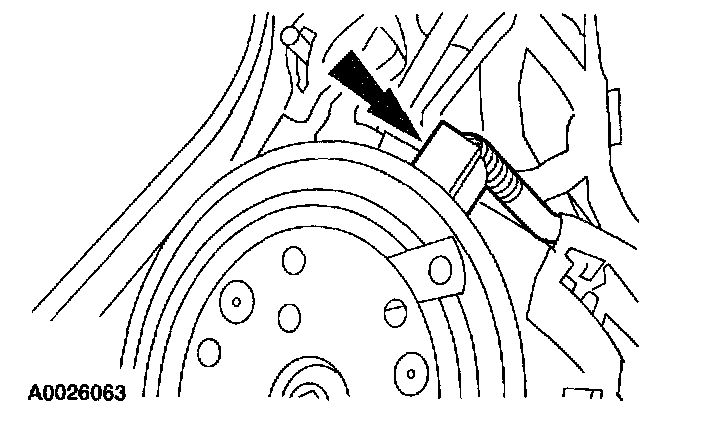

6. Disconnect the A/C clutch field coil elctrical connector.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

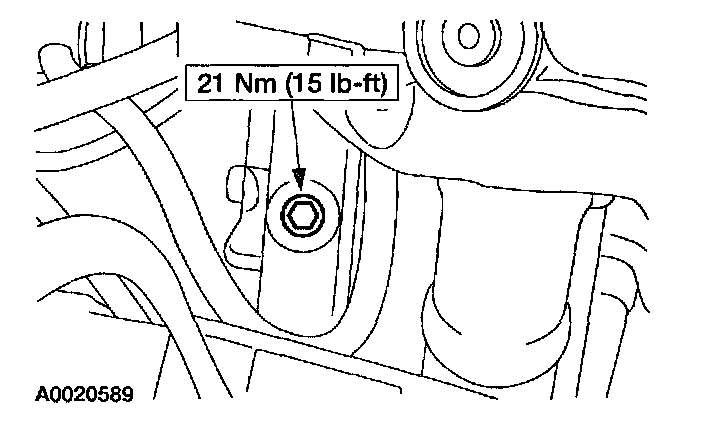

7. Remove the A/C manifold and tube assembly bolt from the top of the A/C compressor and disconnect the A/C manifold and tube assembly.




8. Remove the bolts and the A/C compressor.
9. To install, reverse the removal procedure.
1. Lubricate the new A/C compressor with the correct amount of PAG Compressor Oil. For additional information, see REFRIGERANT OIL ADDING.
2. Lubricate the new A/C manifold O-ring seals with PAG Compressor Oil.
3. Apply Pipe Sealant with Teflon(R) to the threads of the A/C manifold and tube assembly bolt.

10. Recharge the A/C system.
