Upper Module

UPPER MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the audio unit.

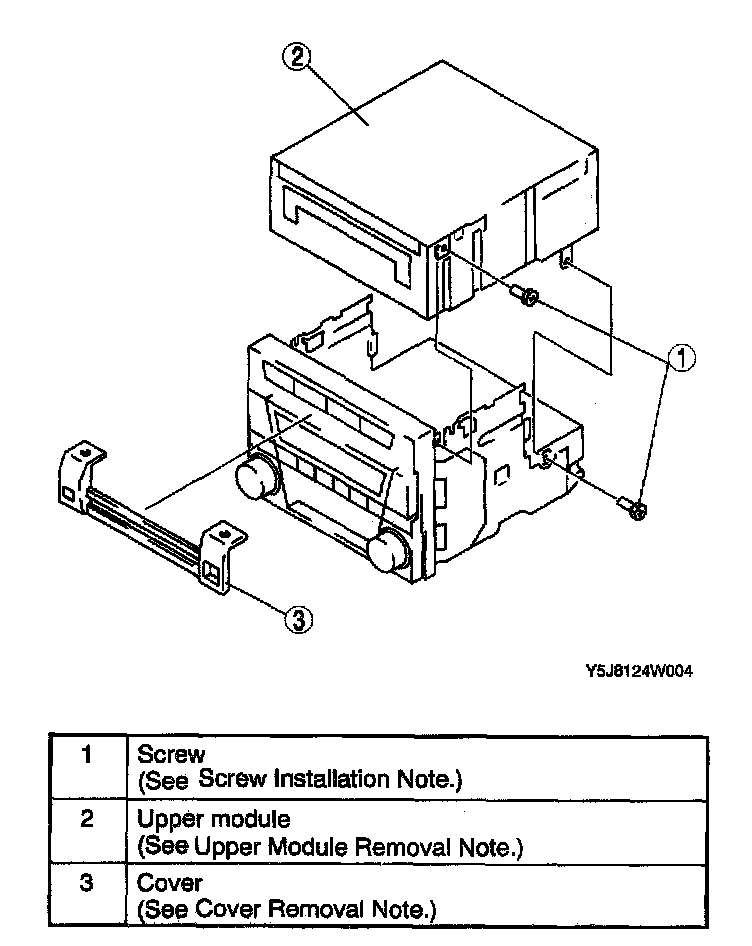

3. Remove in the order indicated in the table.
4. Install in the order of removal.

Upper Module Removal Note




1. Insert a screwdriver into the hole stamped mark.
2. To remove upper module, lift it by pushing down the screwdriver's handle.

Cover Removal Note




1. Insert a tape-wrapped screwdriver between the cover and the base unit, then unhook the hook A.
2. To unhook the hook B, pull the cover upward.

Screw Installation Note

CAUTION: If an undesignated screw is used, the inside of the upper module could be damaged. When installing the module, be sure to use a designated screw (red).
