Front Console

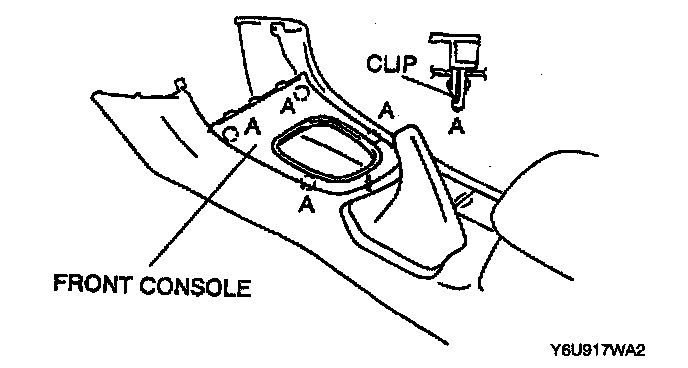

FRONT CONSOLE REMOVAL/INSTALLATION

1. Remove the shift lever knob if equipped with the MTX.

2. Pull the front console to disengage clips A from the rear console.
3. Install in the reverse order of removal.
