Keyless Entry Module: Description and Operation

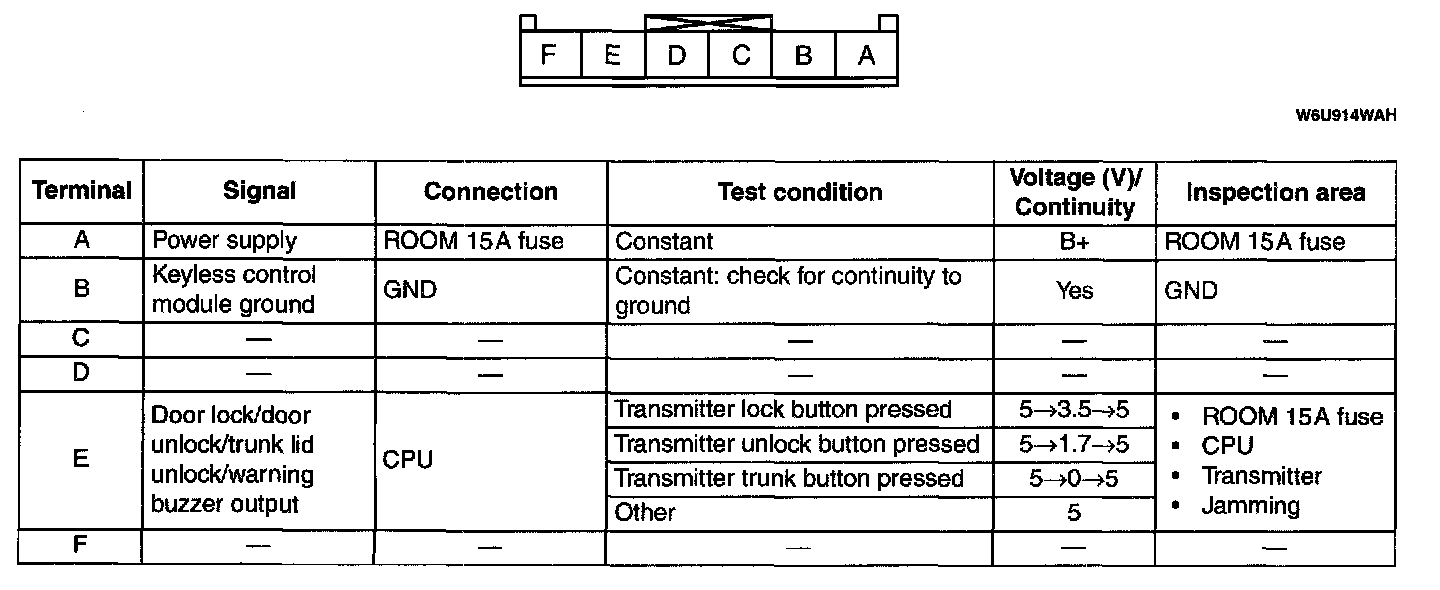

Keyless Control Module Terminal Voltage Table (Reference):
