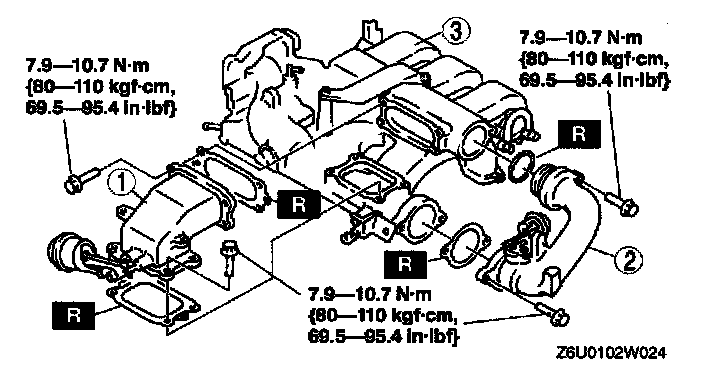

Intake Manifold Component Disassembly/Assembly
INTAKE MANIFOLD COMPONENT DISASSEMBLY/ASSEMBLY 1.
Disassemble in the order indicated below.
1.
VRIS shutter valve body component
2.
Air intake pipe component
3.
Intake manifold 2.
Assemble in the reverse order of disassembly.
