Air Register: Service and Repair

SWING LOUVER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION.)

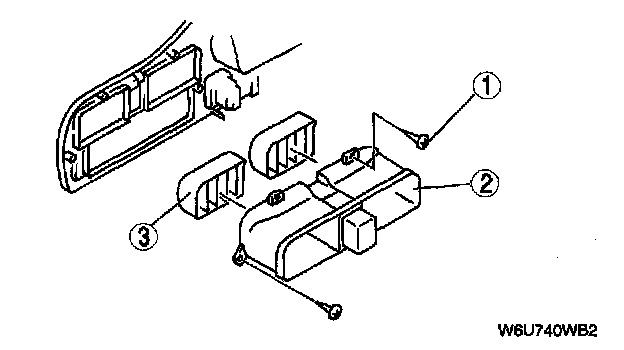

3. Remove in the order indicated below.
1. Screw
2. Swing louver
3. Vent grille

4. Install in the reverse order of removal.
