Combination Switch: Service and Repair

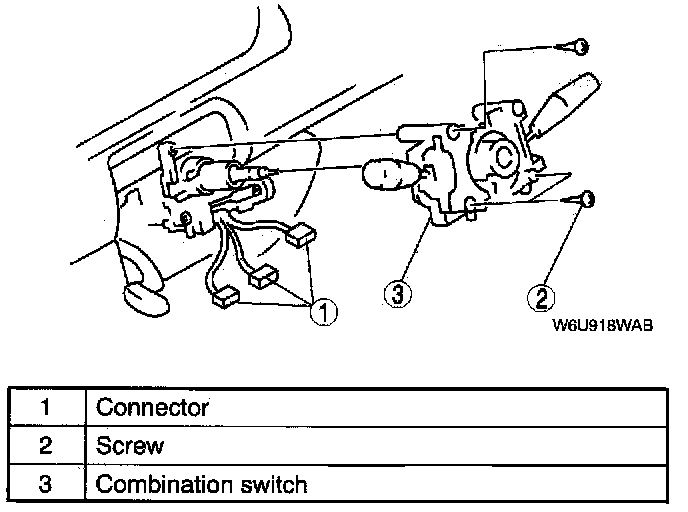

COMBINATION SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module.
3. Remove the steering wheel.
4. Remove the column cover.
5. Remove the clock spring. (See CLOCK SPRING ADJUSTMENT.)




6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.

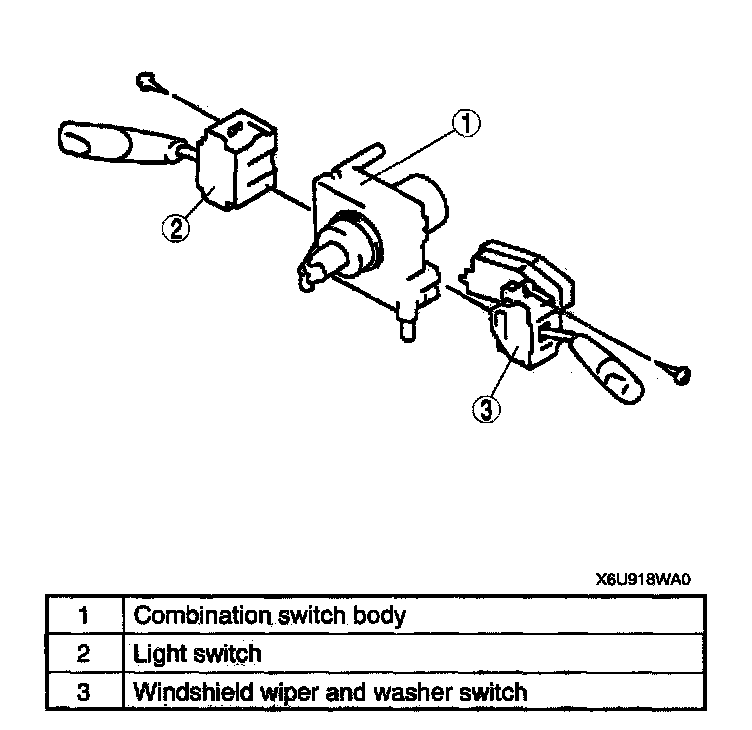

COMBINATION SWITCH DISASSEMBLY/ASSEMBLY




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
