Vehicle Speedometer Sensor

VEHICLE SPEEDOMETER SENSOR INSPECTION

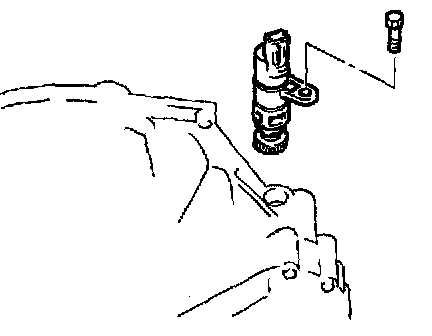

1. Remove the vehicle speedometer sensor.

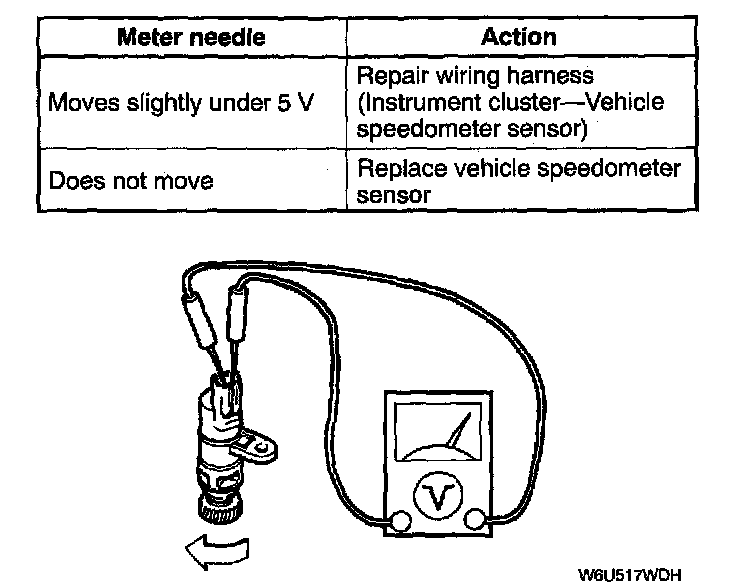

2. Measure the voltage between terminals of the vehicle speedometer sensor while rotating the driven gear.
3. Install the vehicle speedometer sensor.
