Clutch Switch: Testing and Inspection

CLUTCH SWITCH INSPECTION

Inspection of Output Voltage

1. Disconnect the PCM connector.

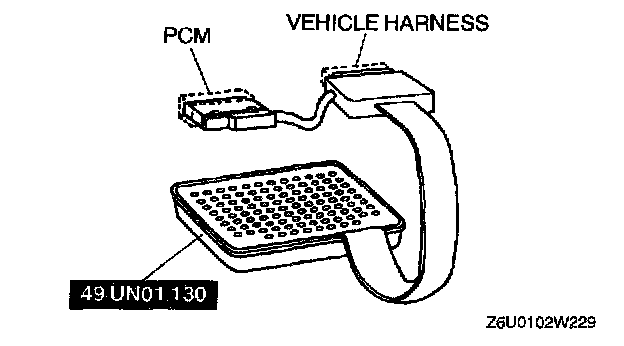

2. Connect the SST (104 Pin Breakout Box) to the PCM as shown.
3. Tighten the connector bolt.

Tightening torque: 7.9 - 10.7 N.m {80 - 100 kgf.cm, 69.5 - 95.4 in.lbf}

4. Turn the ignition switch to ON.

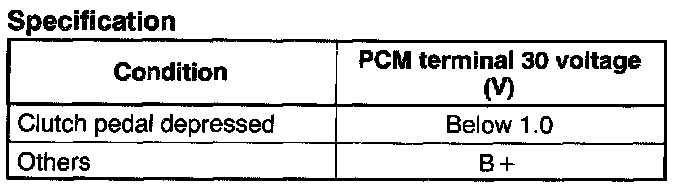

Specification:

5. Measure the voltage at PCM terminal 30.
- If not as specified, check the related harness and clutch switch continuity.

Inspection of Continuity

1. Disconnect the clutch switch connector.

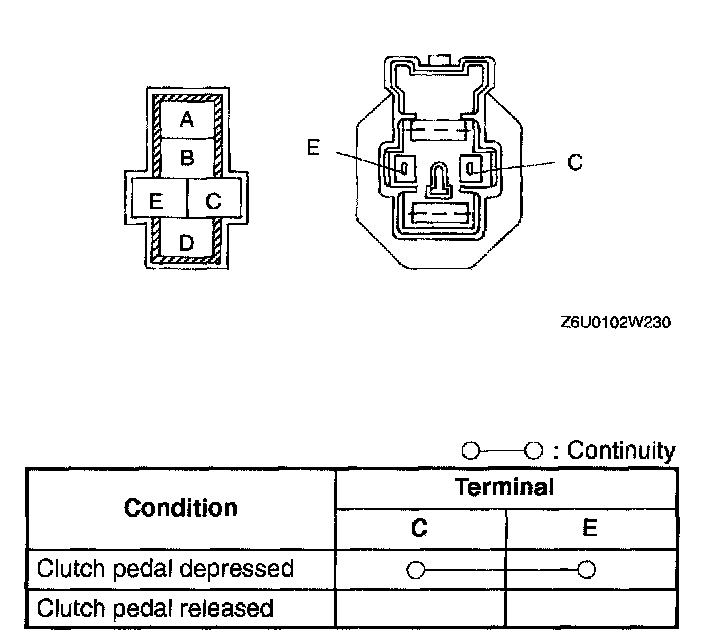

2. Check continuity of the clutch switch using an ohmmeter.
- If okay, inspect related harness and connectors.
