Ignition System: Testing and Inspection
SPARK TEST WARNING: High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the spark test. 1.
Disconnect the
fuel pump relay connector.
2.
Verify each high-tension lead and connector is connected properly.
3.
Inspect the
ignition system using the following procedure.

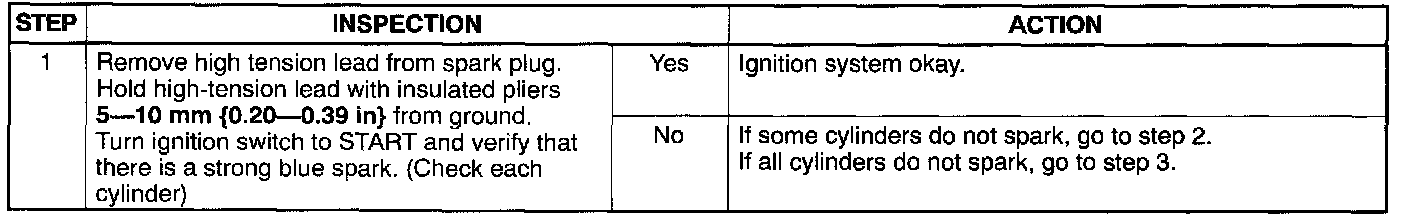

Step 1:

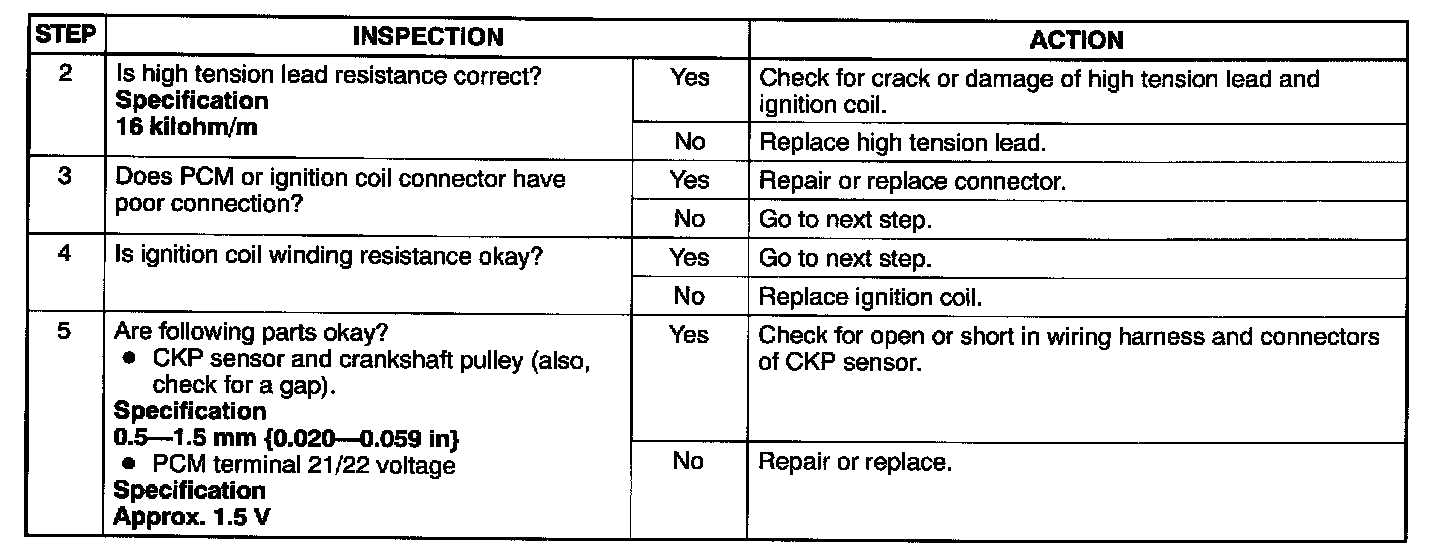

Step 2 - 5:
