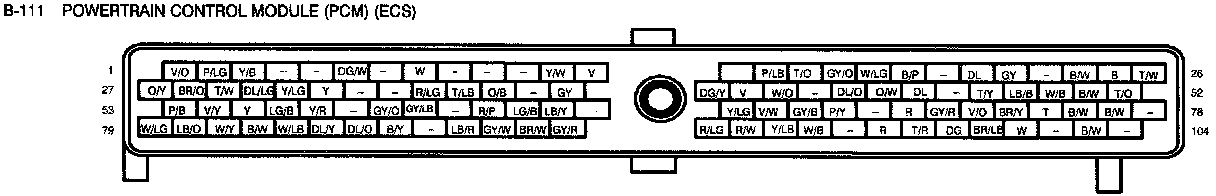

Engine Control Module

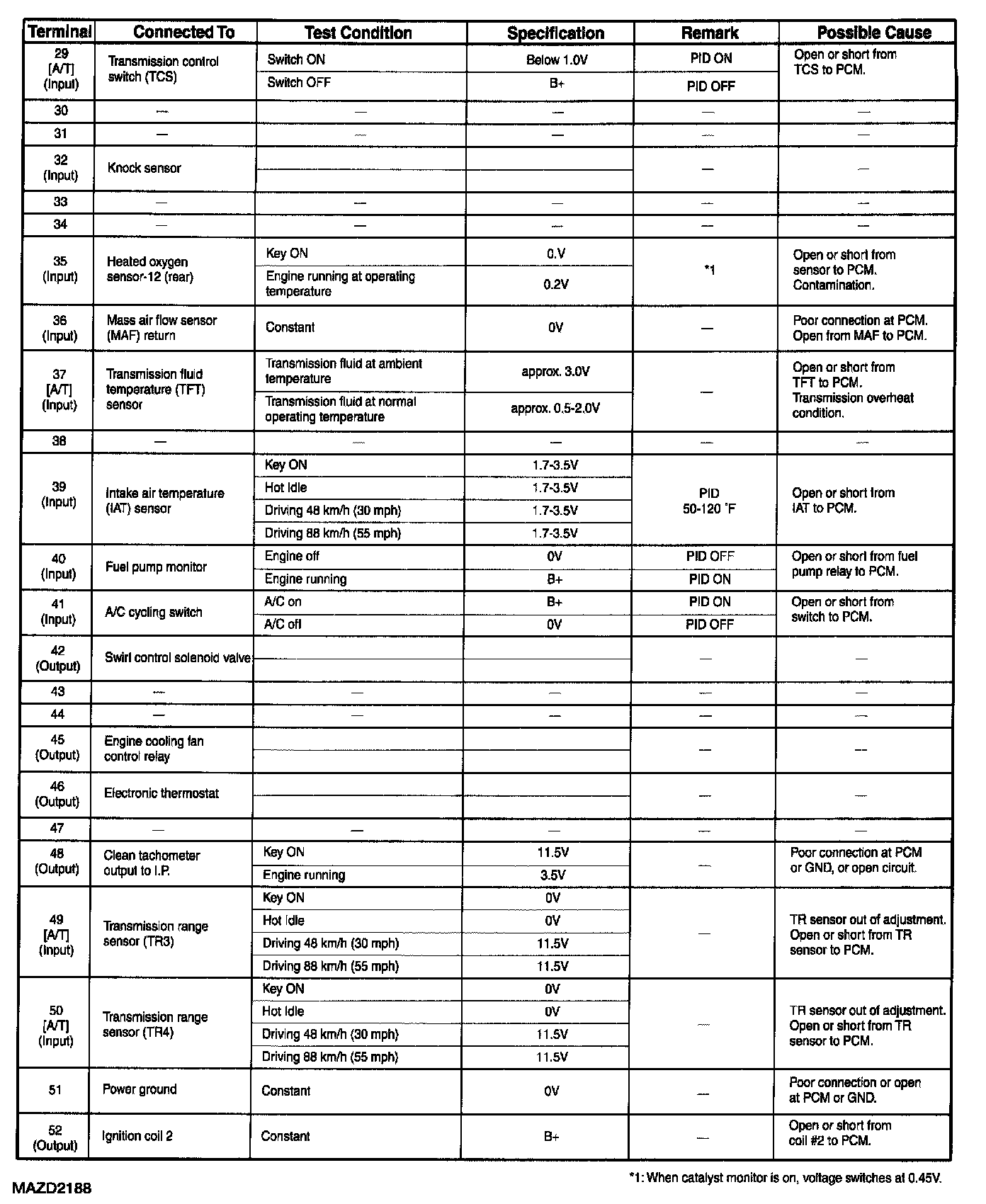

Terminal 1 - 28:






Terminal 29 - 52:

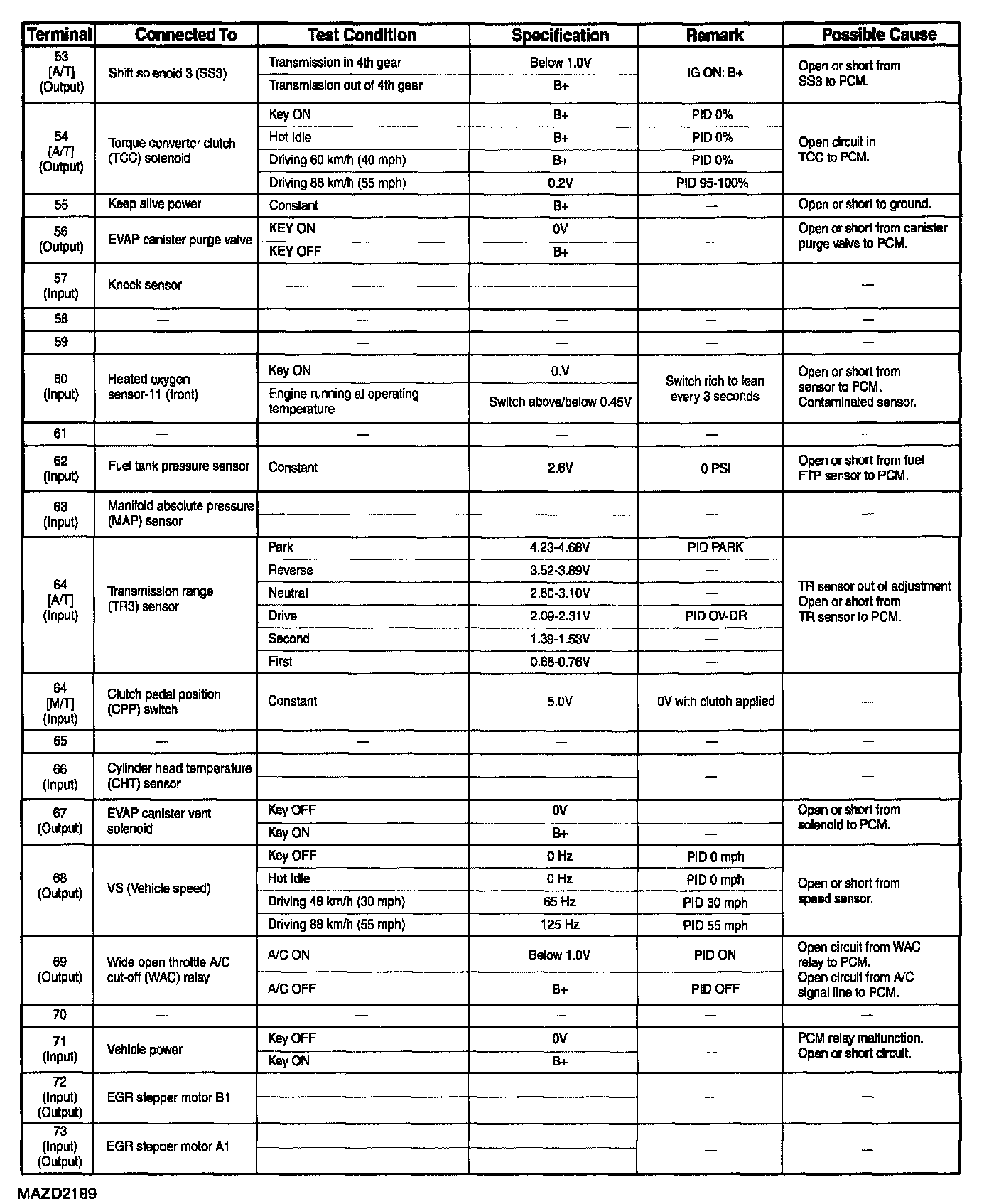

Terminals 53 - 73:

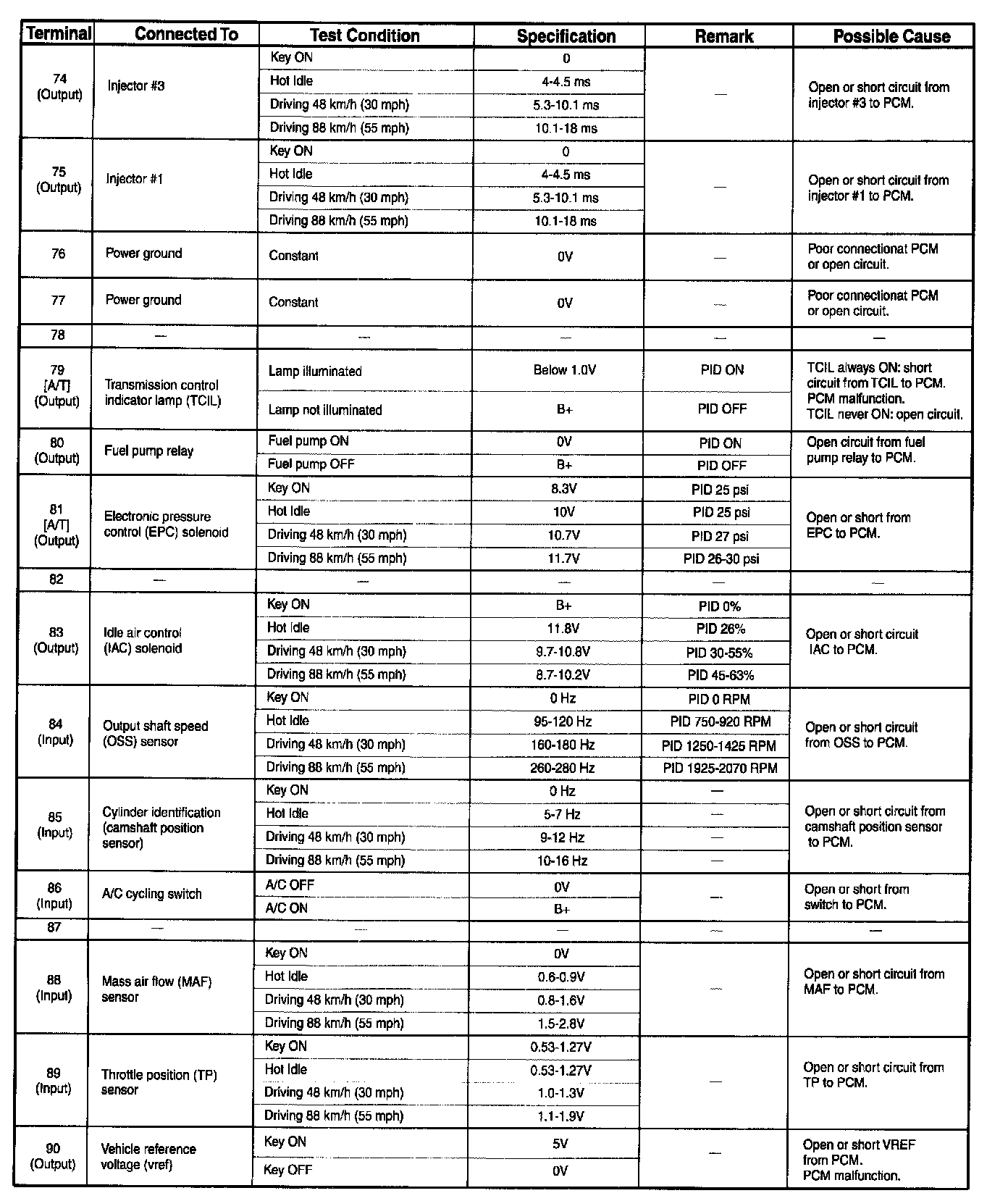

Terminal 74 - 90:

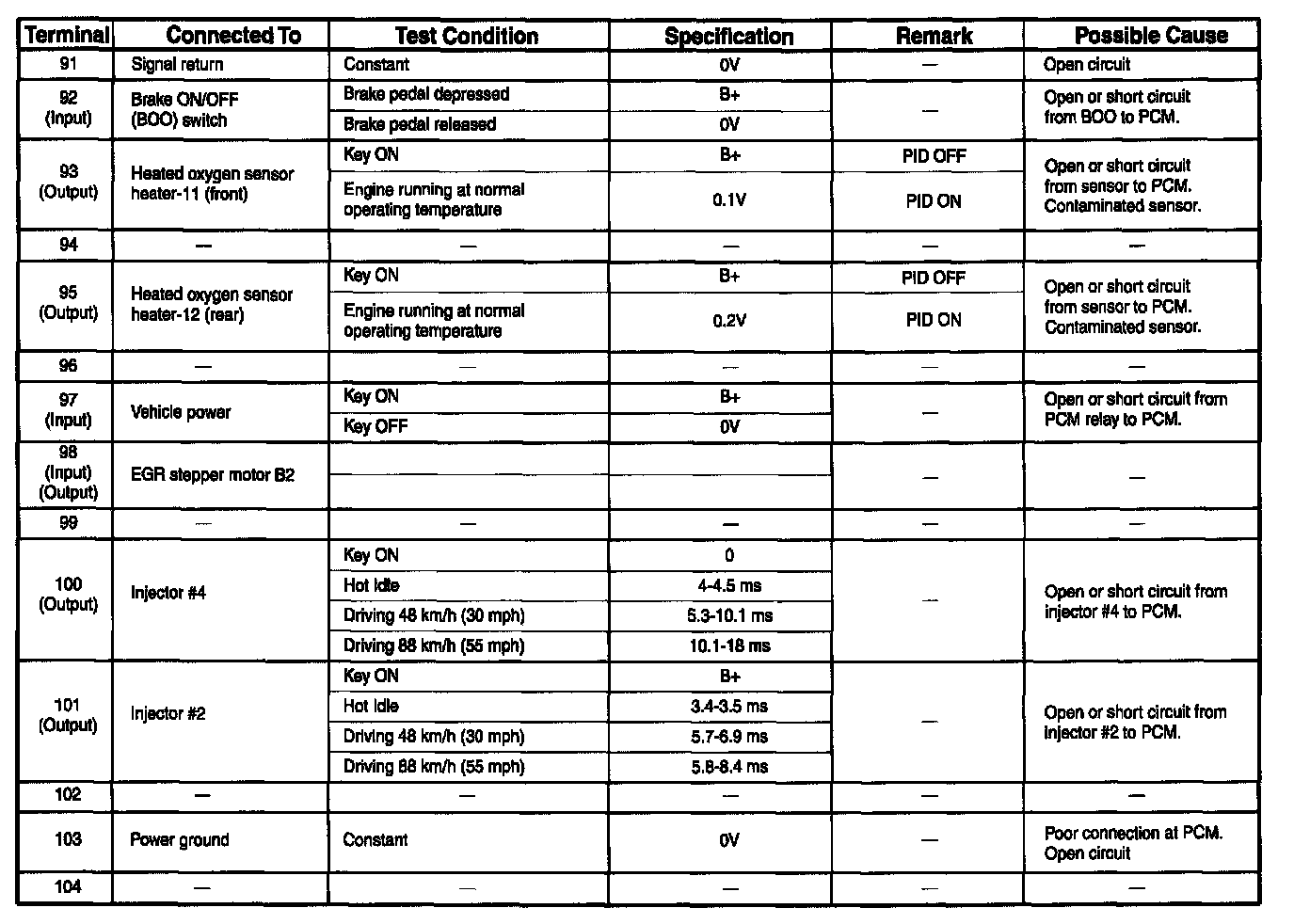

Terminal 91 - 104:
