Symptom Troubleshooting Chart

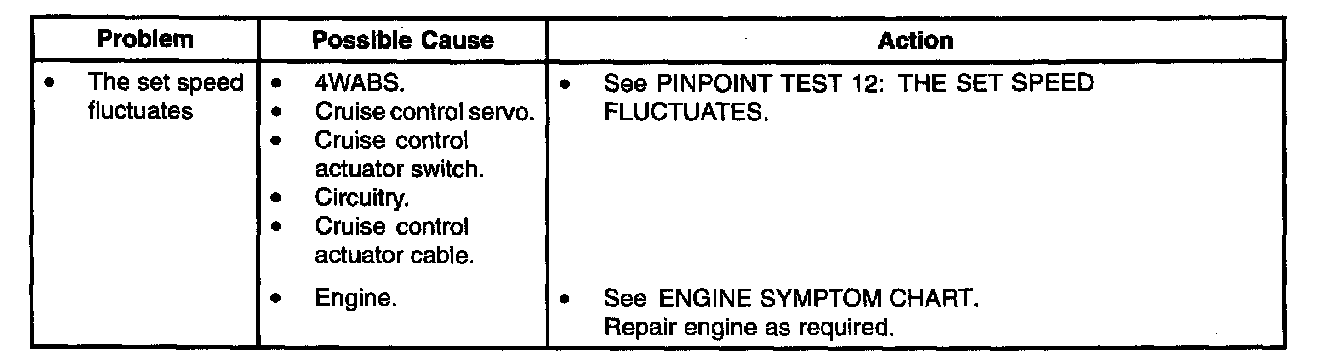

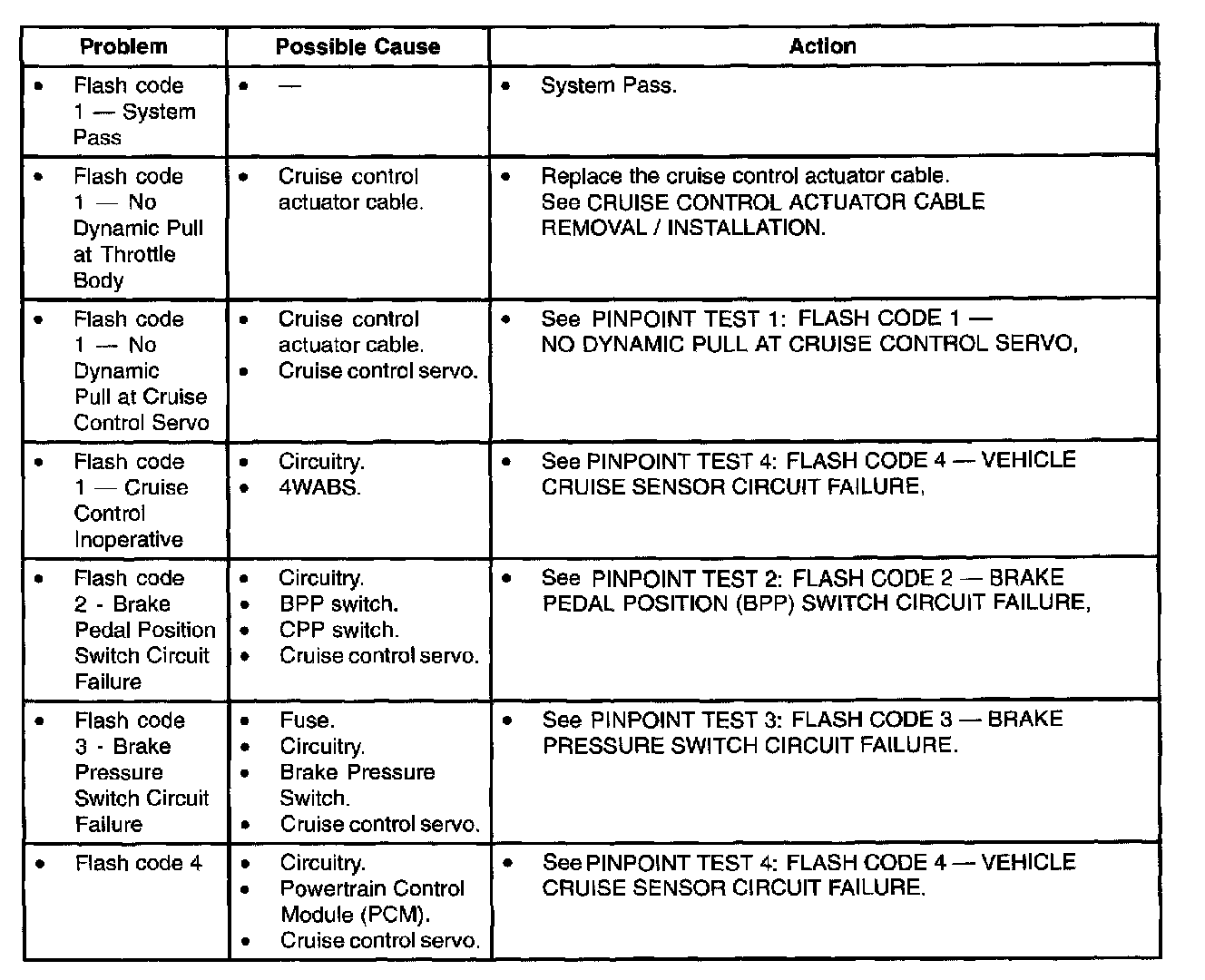

Problem / Possible Cause Part 1:




Problem / Possible Cause Part 2:




Problem / Possible Cause Part 3:






NOTE: Self-Test Diagnostics must be performed before proceeding to Symptom Troubleshooting Chart.
