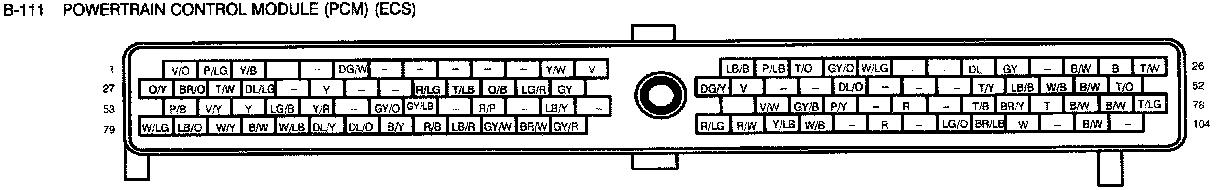

Engine Control Module






Terminal 1 - 22:






Terminal 21 - 41:






Terminal 42 - 63:






Terminal 64 - 80:






Terminal 81 - 95:






Terminal 97 -104:
