General Module

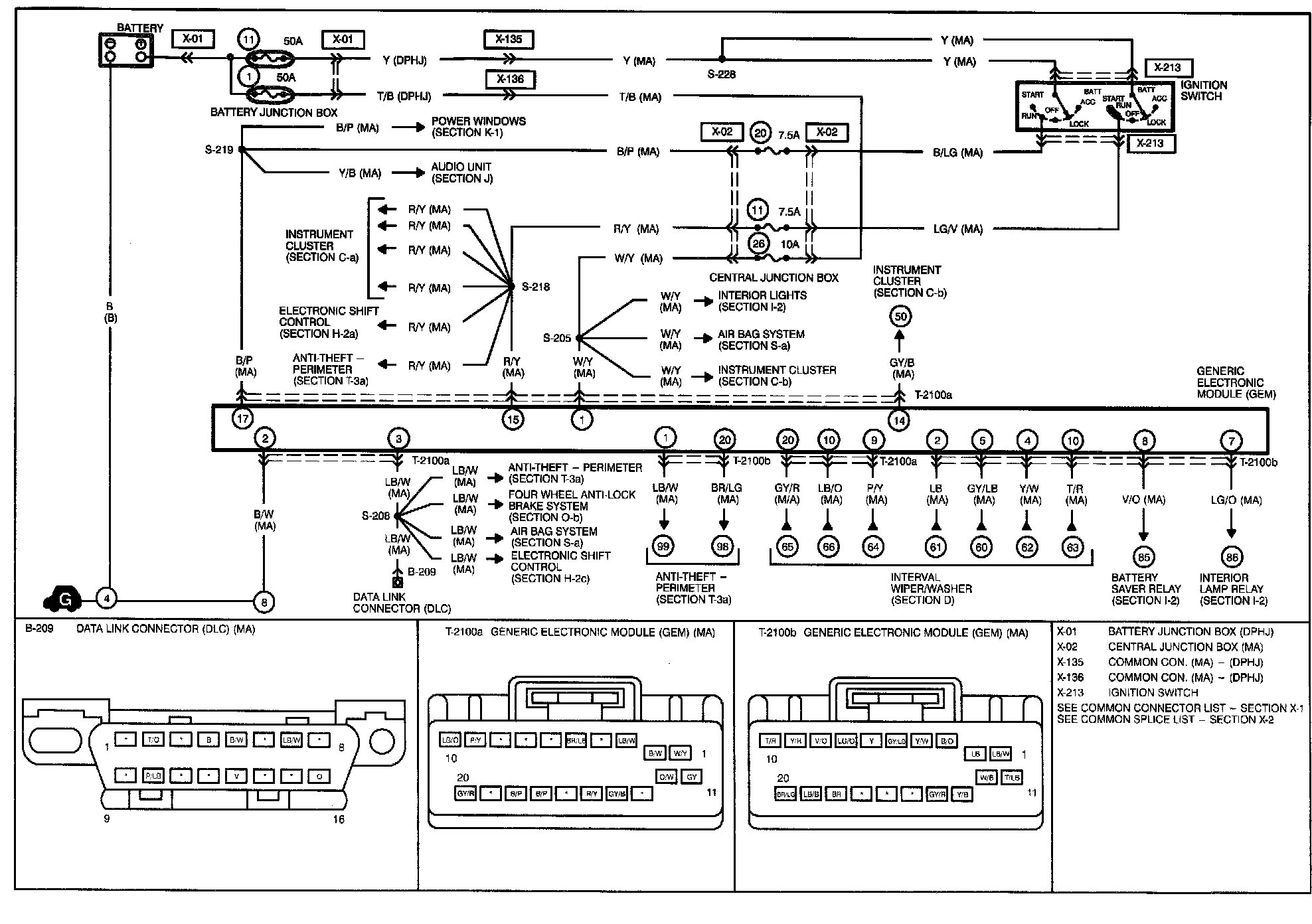

F-2a - Generic Electronic Module (GEM) System Circuit:

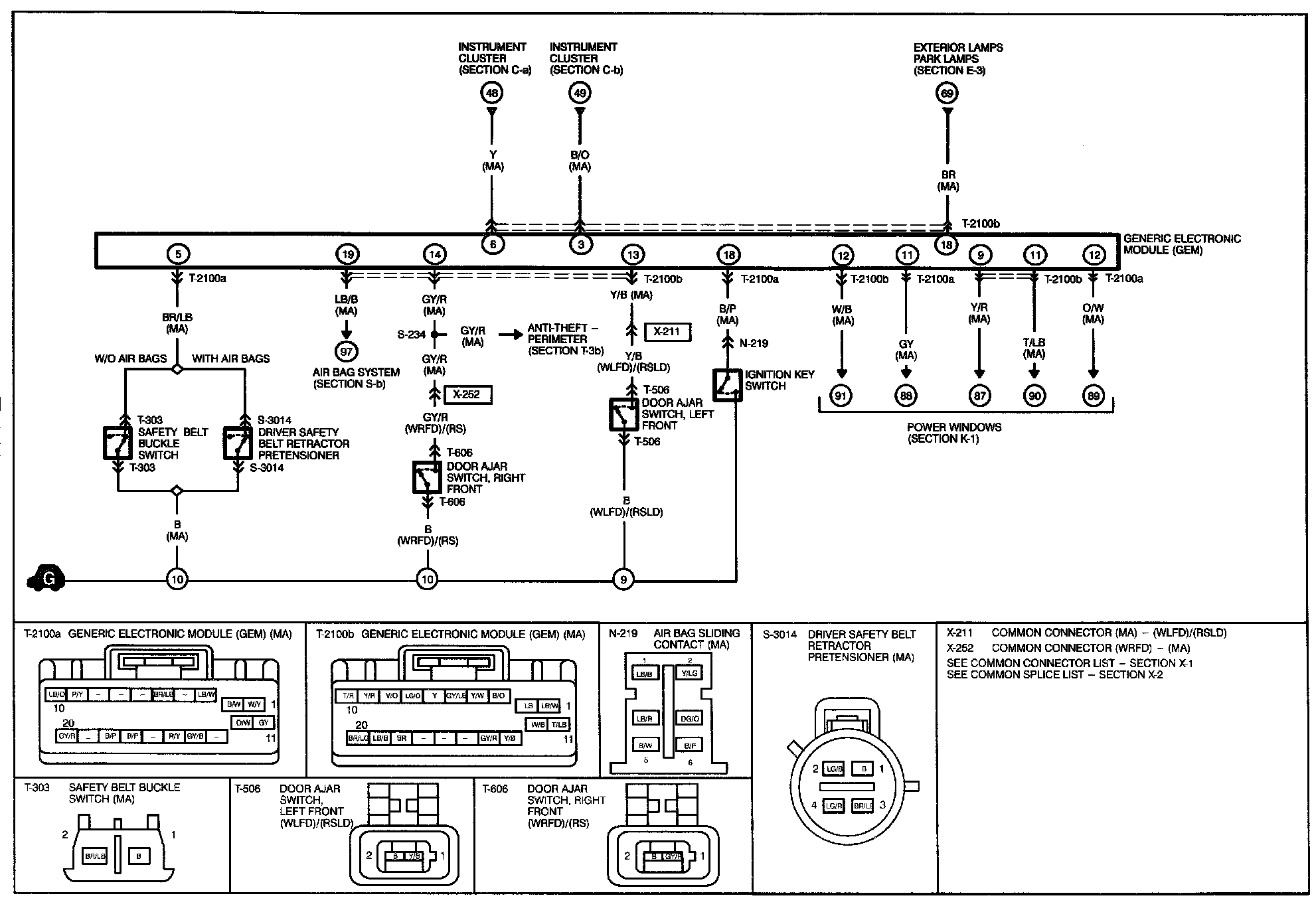

T-2b - Generic Electronic Module (GEM) System Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
