Automatic Transmission/Transaxle

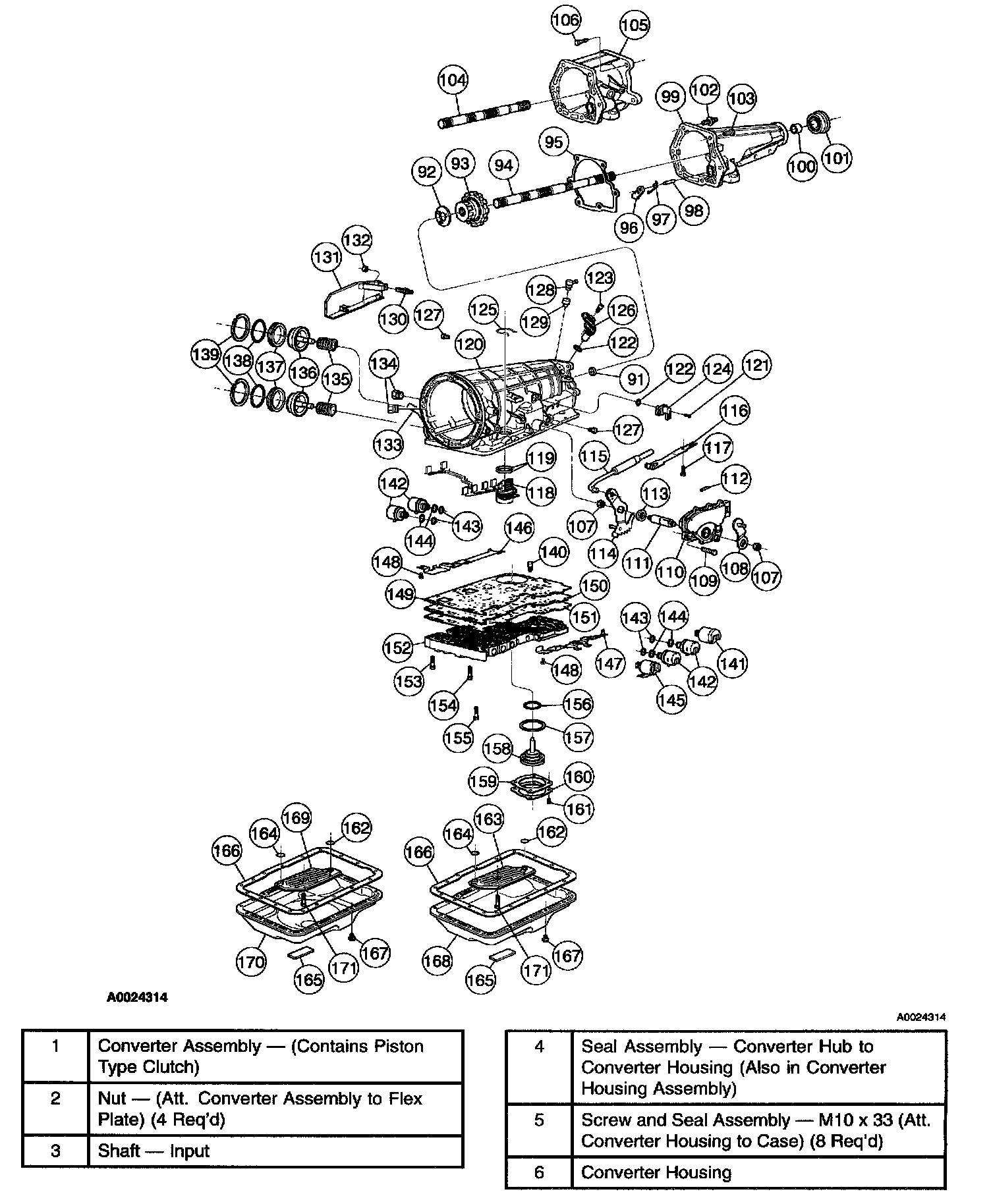

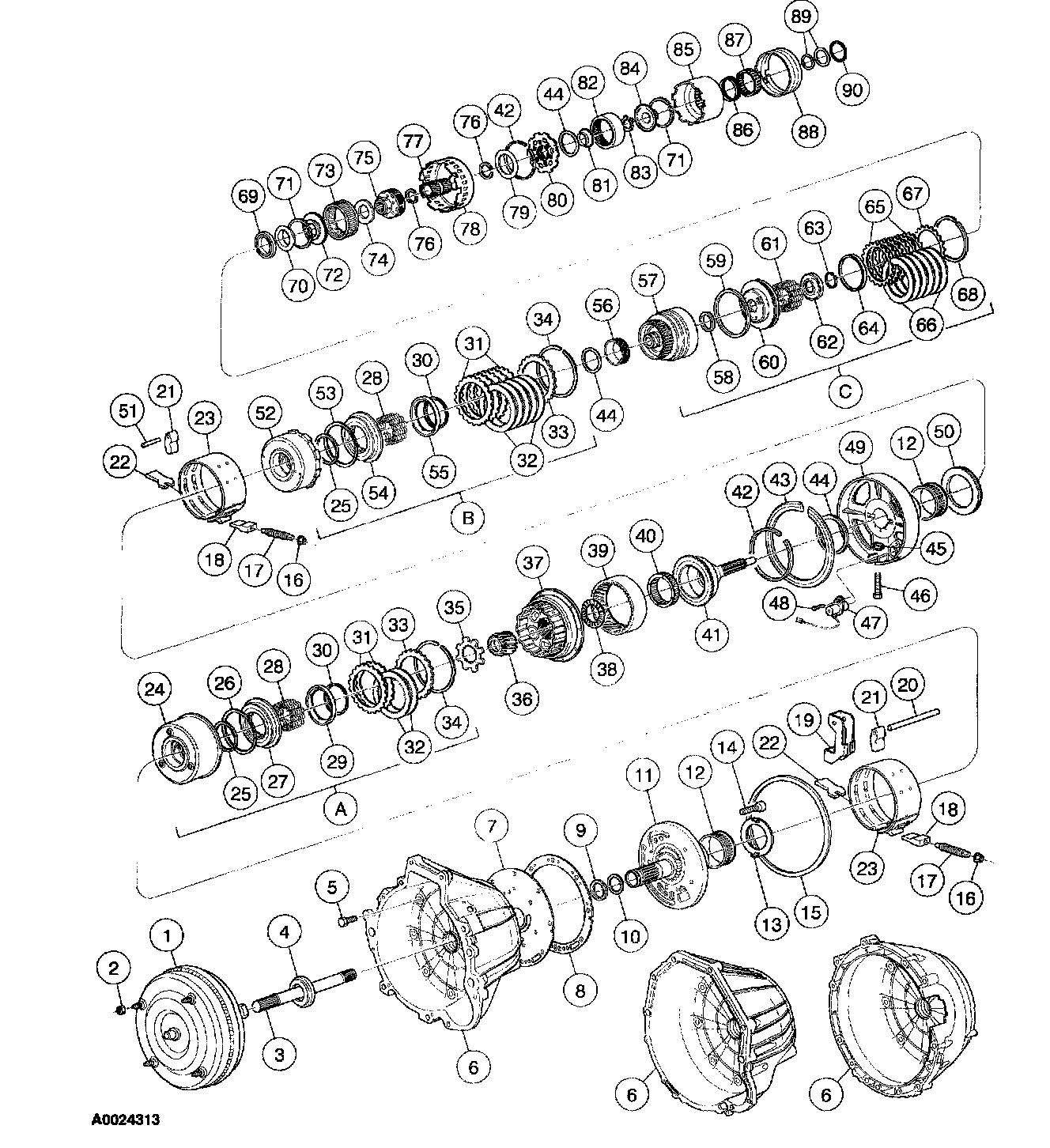

Disassembled View

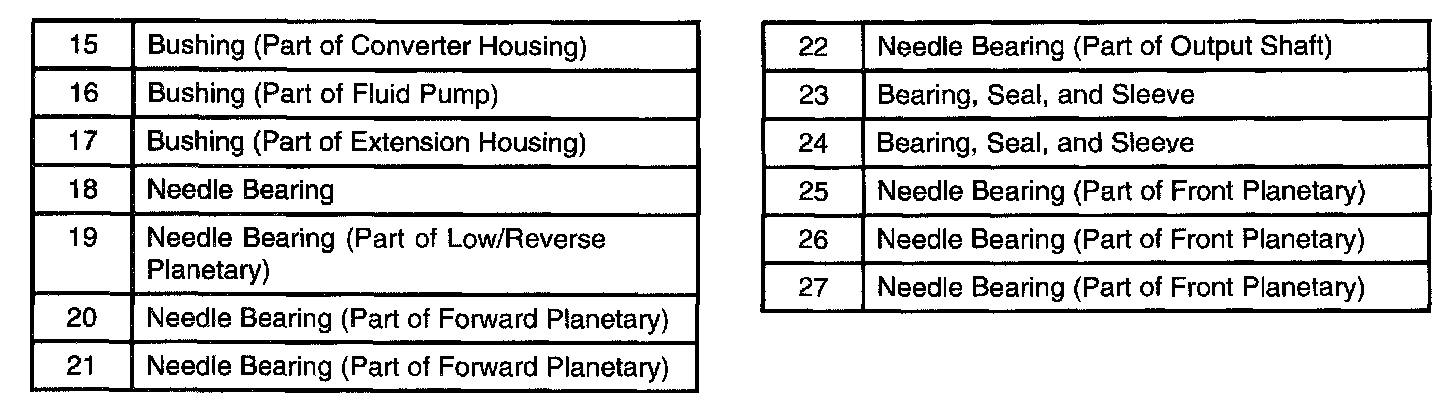

Bushings, Bearings and Thrust Washers Locator

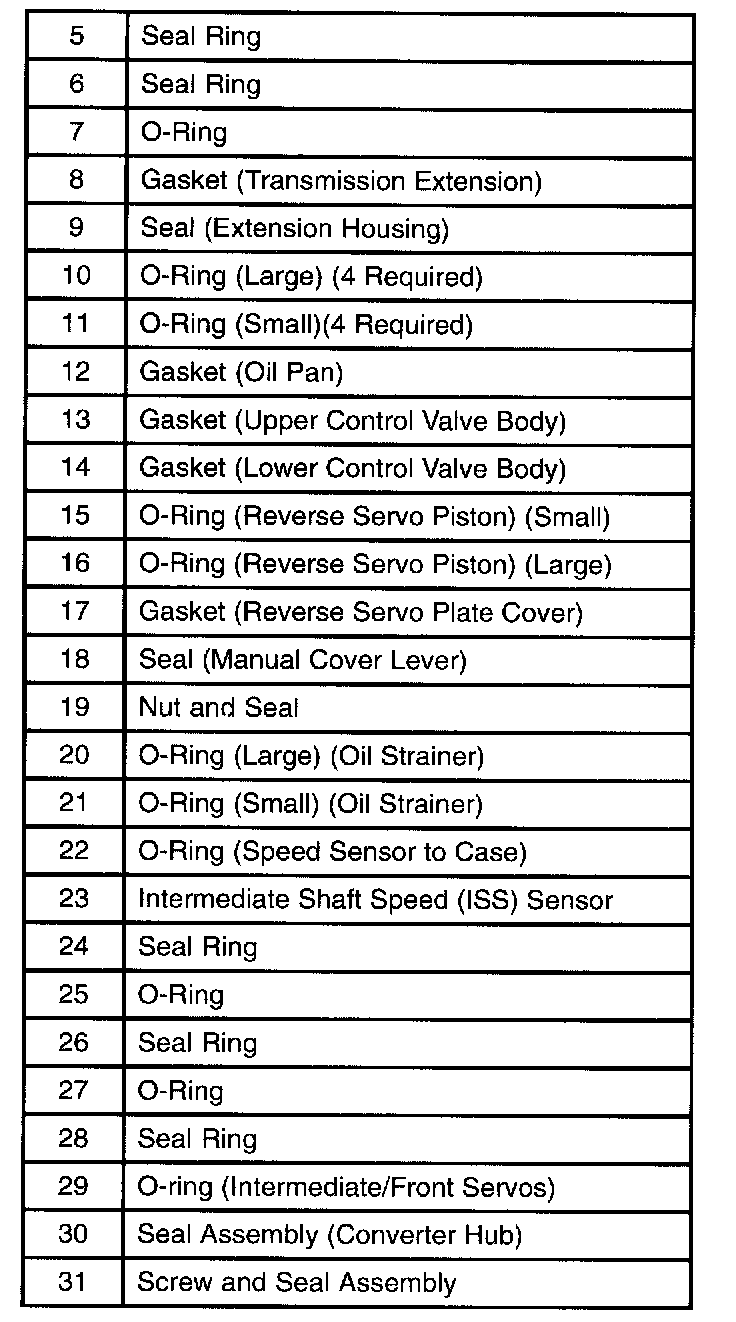

Seals, Rings and Gaskets Locator
