Differential Assembly

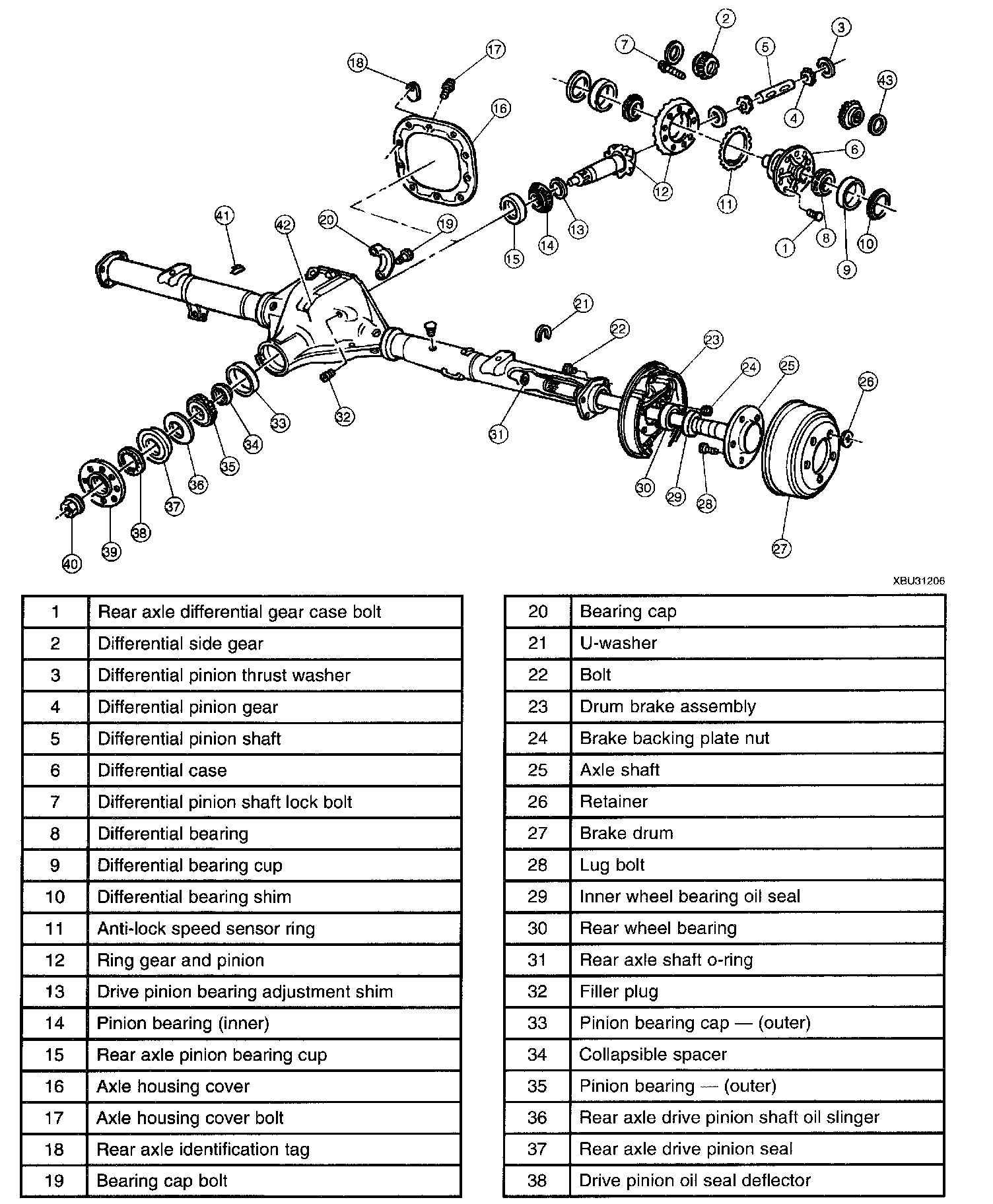

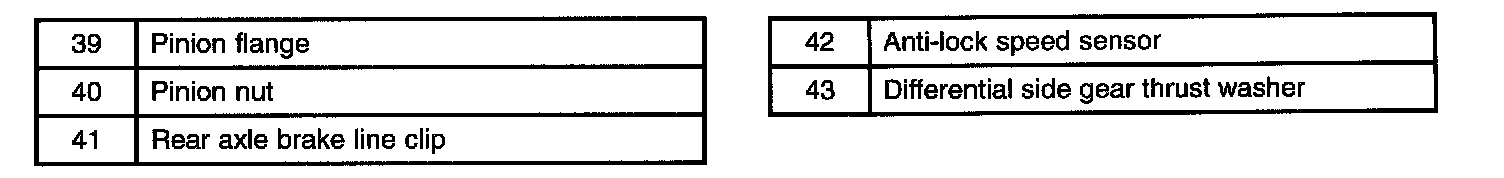

STANDARD REAR AXLE AND DIFFERENTIAL STRUCTURAL VIEW

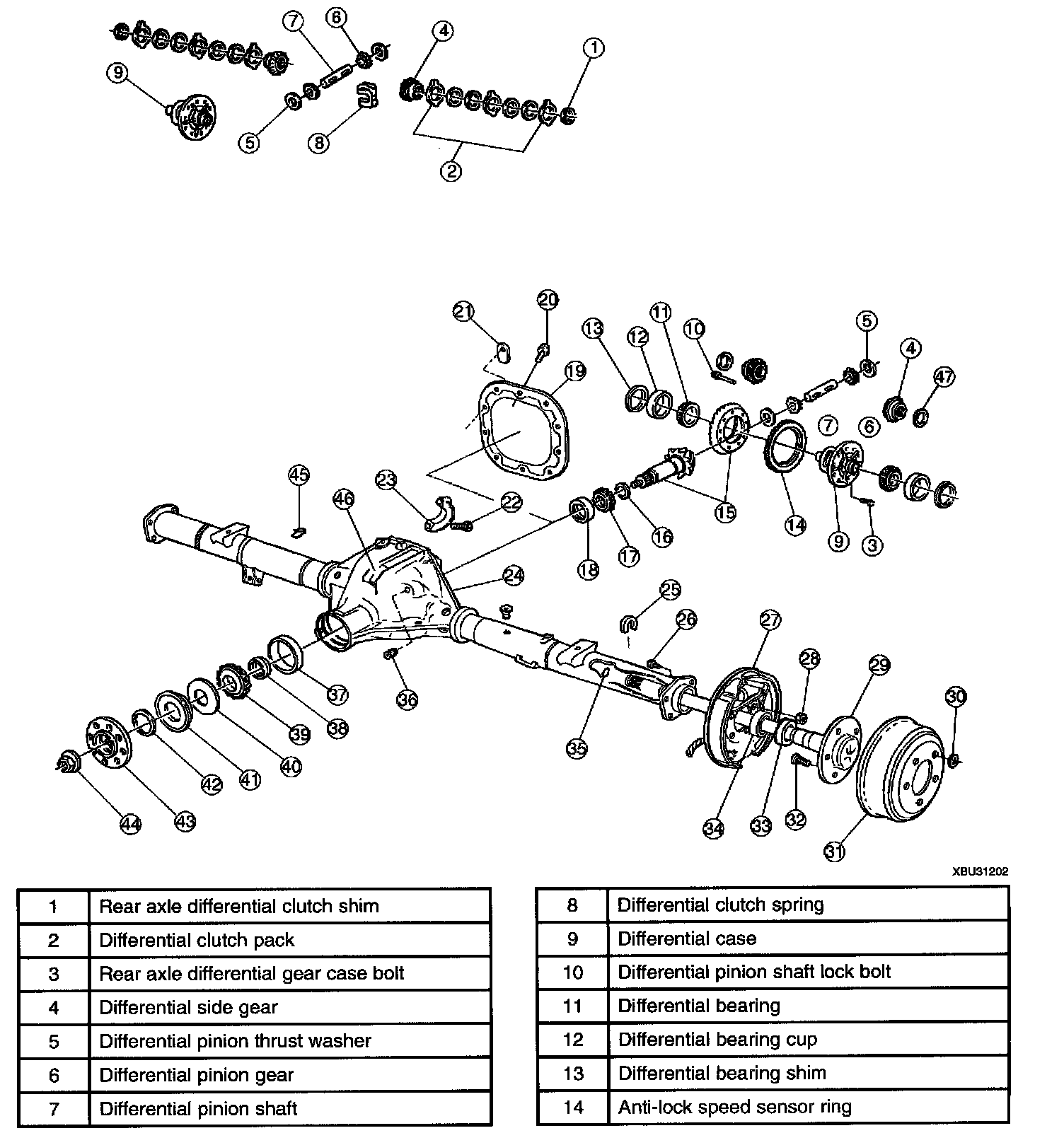

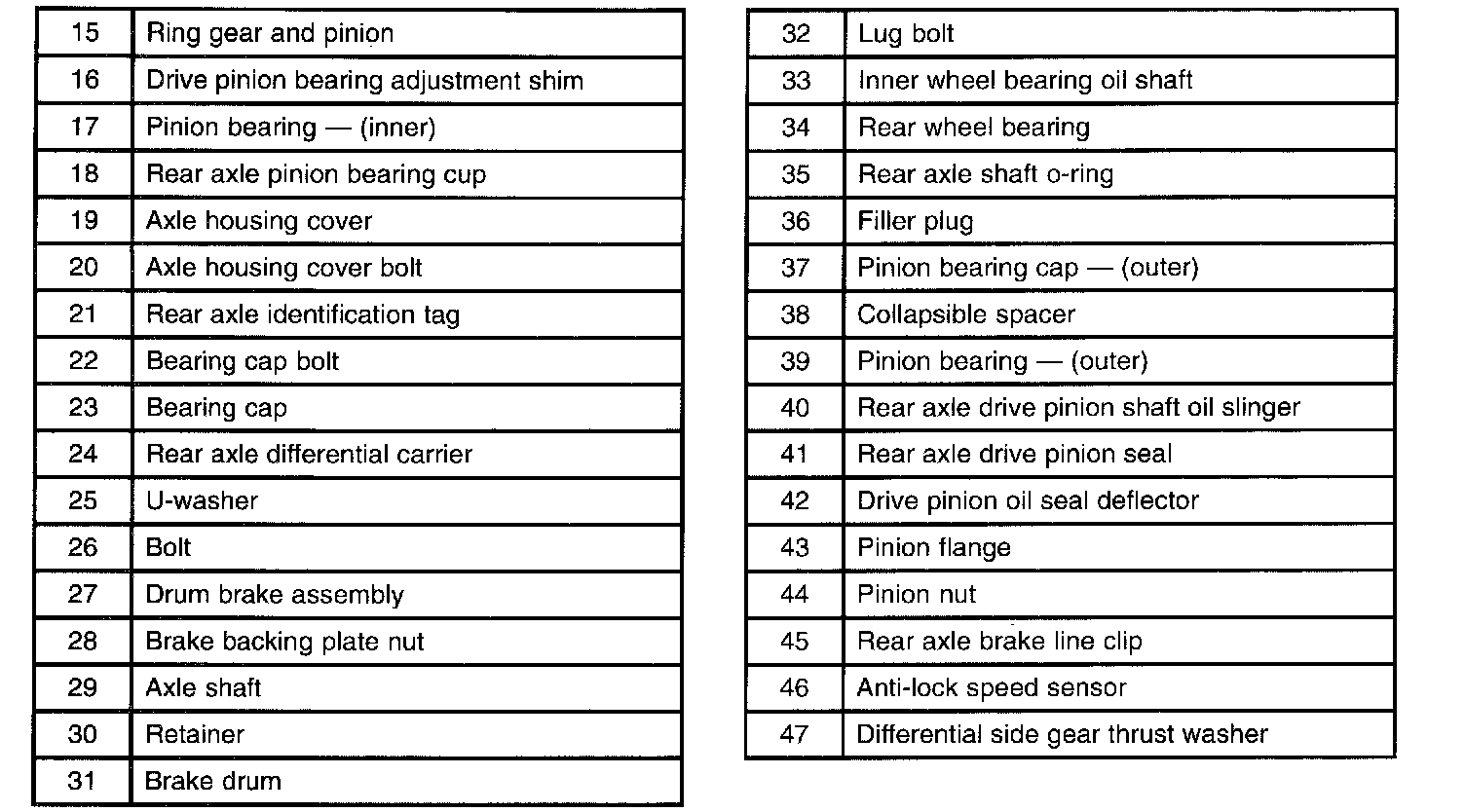

LIMITED SLIP REAR AXLE AND DIFFERENTIAL STRUCTURAL VIEW
