A/C Compressor Bracket

1. Remove the manifold and tube assembly.
2. Remove the power steering pump from the A/C compressor mounting bracket; see POWER STEERING OIL PUMP REMOVAL/INSTALLATION.

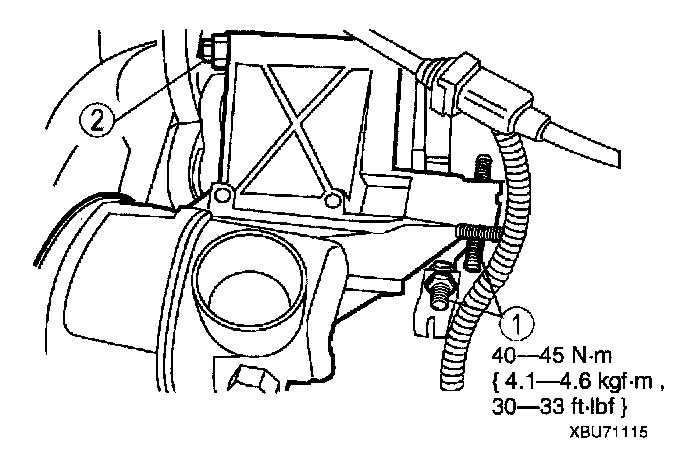

3. Remove the A/C compressor mounting bracket.

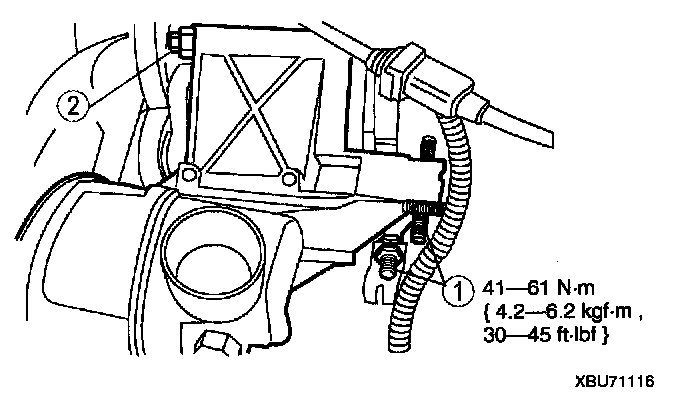

1. Remove the stud bolts.
2. Remove the bolts and remove the A/C compressor mounting bracket.




4. Remove the tensioner from the A/C compressor mounting bracket.

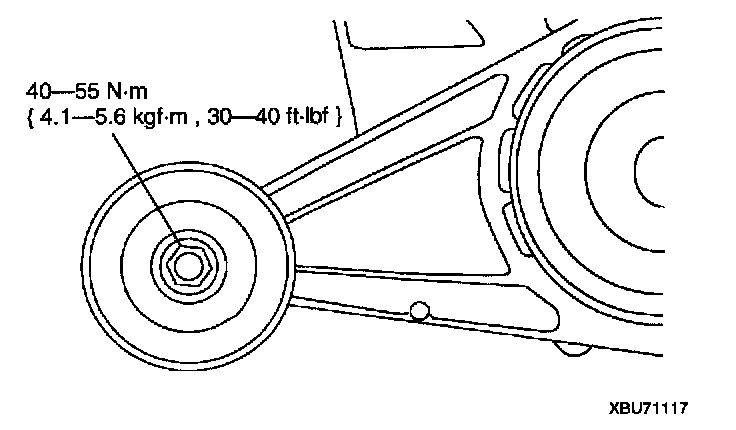

5. Remove the idler pulley from the A/C compressor mounting bracket.
6. Install in the reverse order of removal.
