Home
>>
Mazda
>>
2002
>>
B3000 DS Cab Plus 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Component Locations
>>
Basic System
Basic System

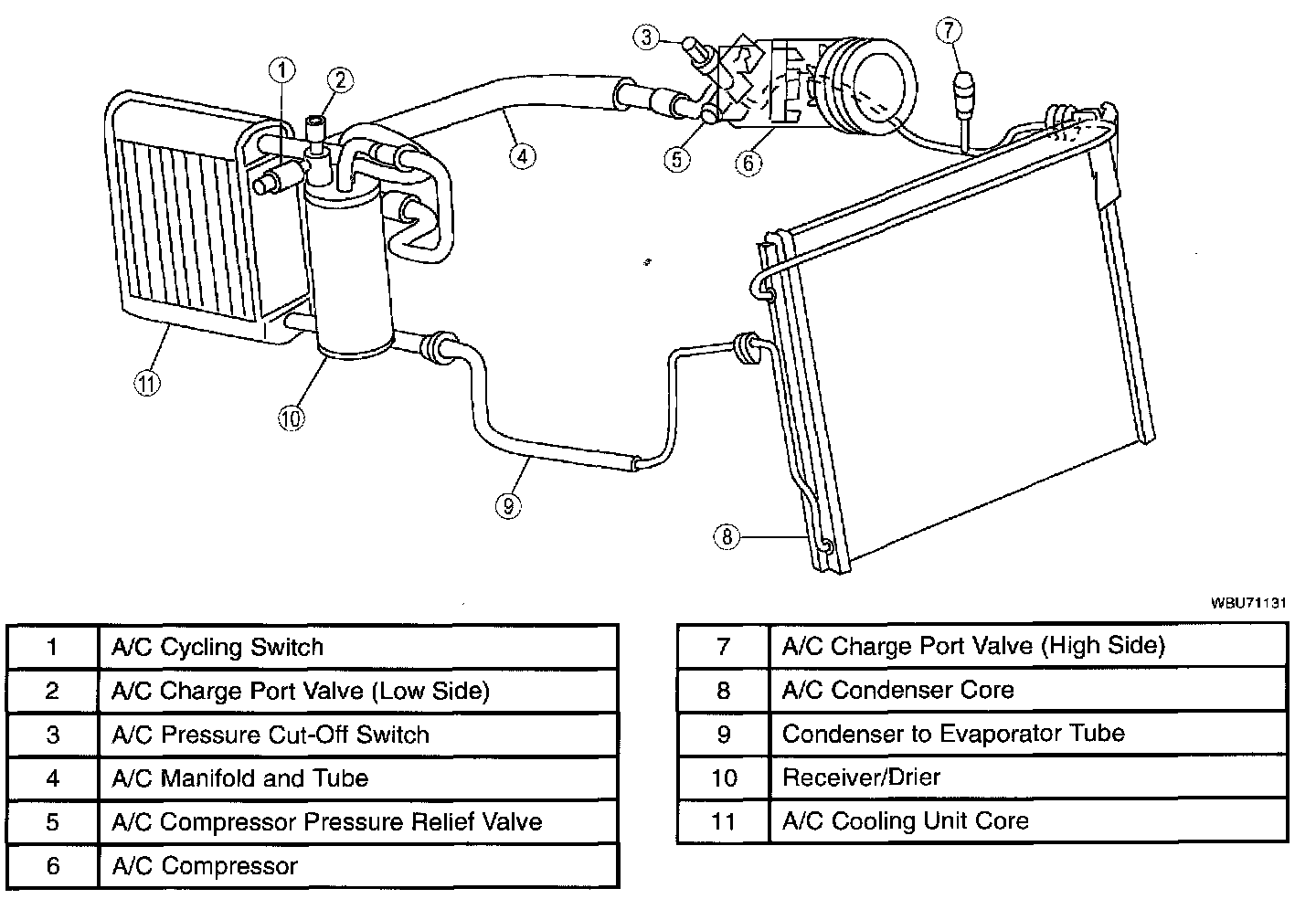

Basic System Structural View:
