Crankshaft Position Sensor: Service and Repair

Removal and Installation

1. Disconnect the negative battery cable.
2. Raise and support the vehicle. See LIFTING.

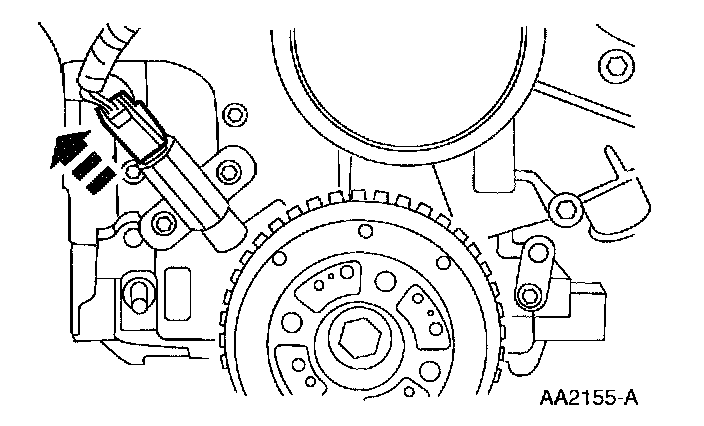

3. Disconnect the crankshaft position (CKP) sensor electrical connector.

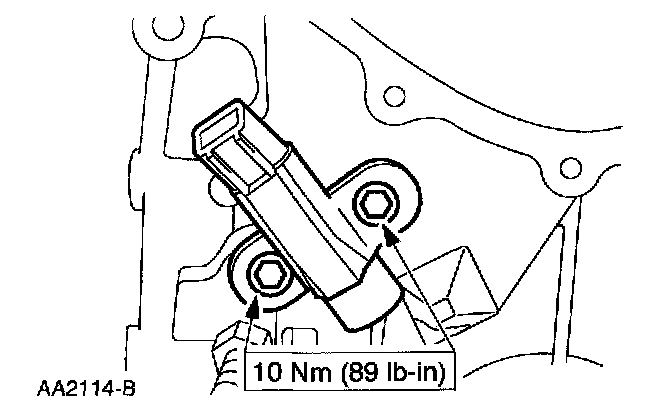

4. Remove the bolts and the CKP sensor.
5. To install, reverse the removal procedure.
