Connector Locations

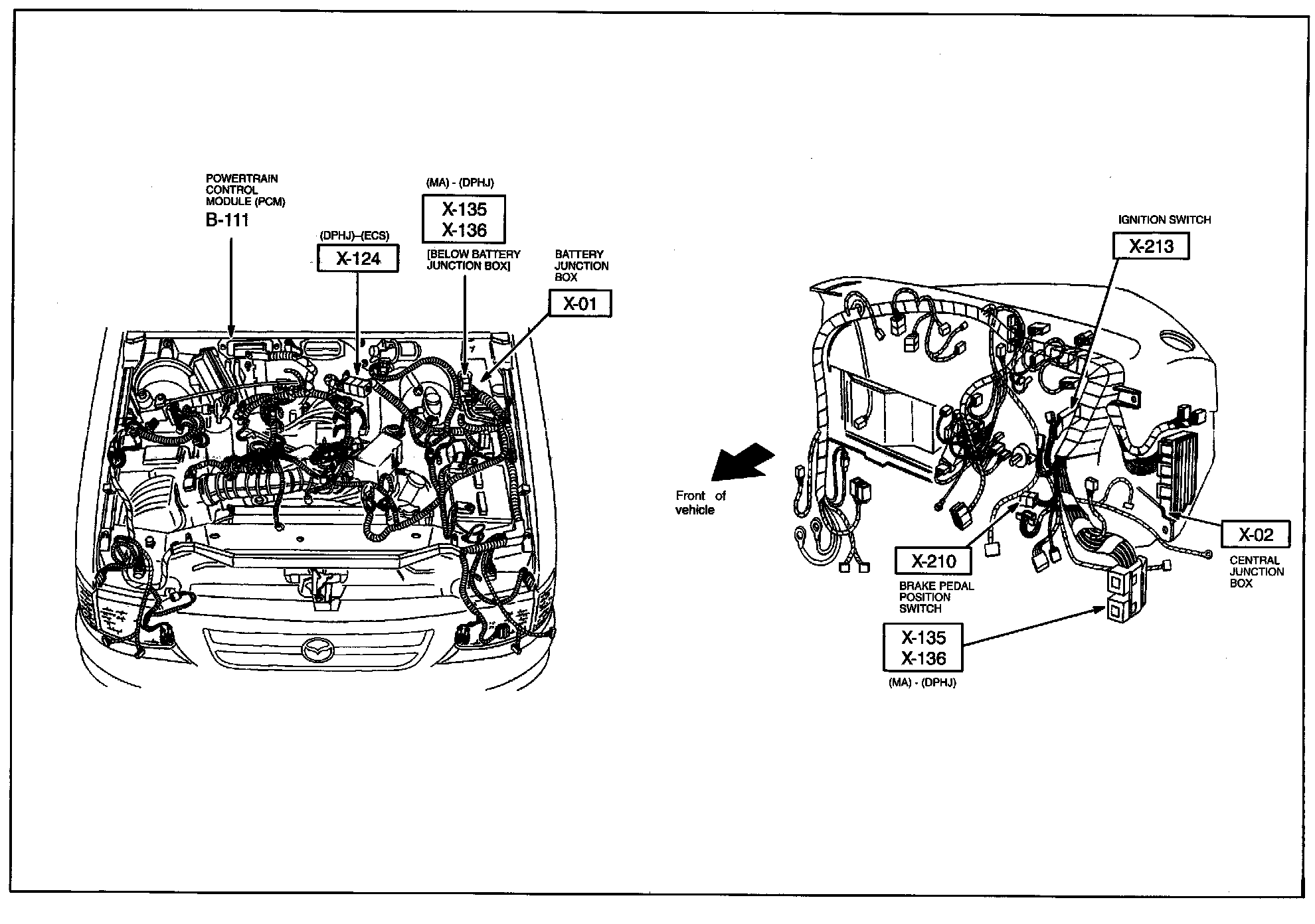

A-2a - Starting And Charging System Harness/Connector Symbols:

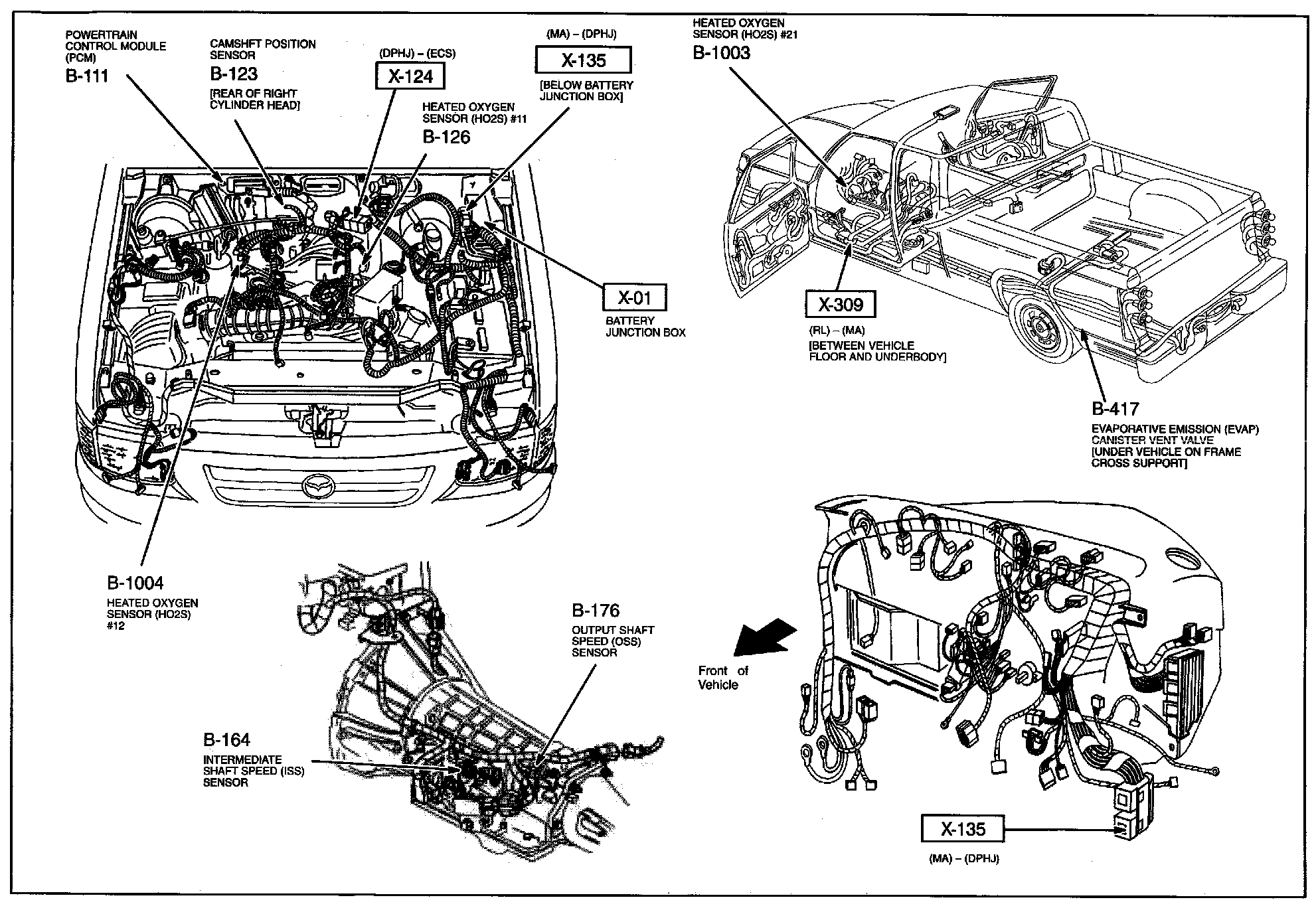

B-2b - Engine Control System (3.0L) Harness / Connector Symbols:

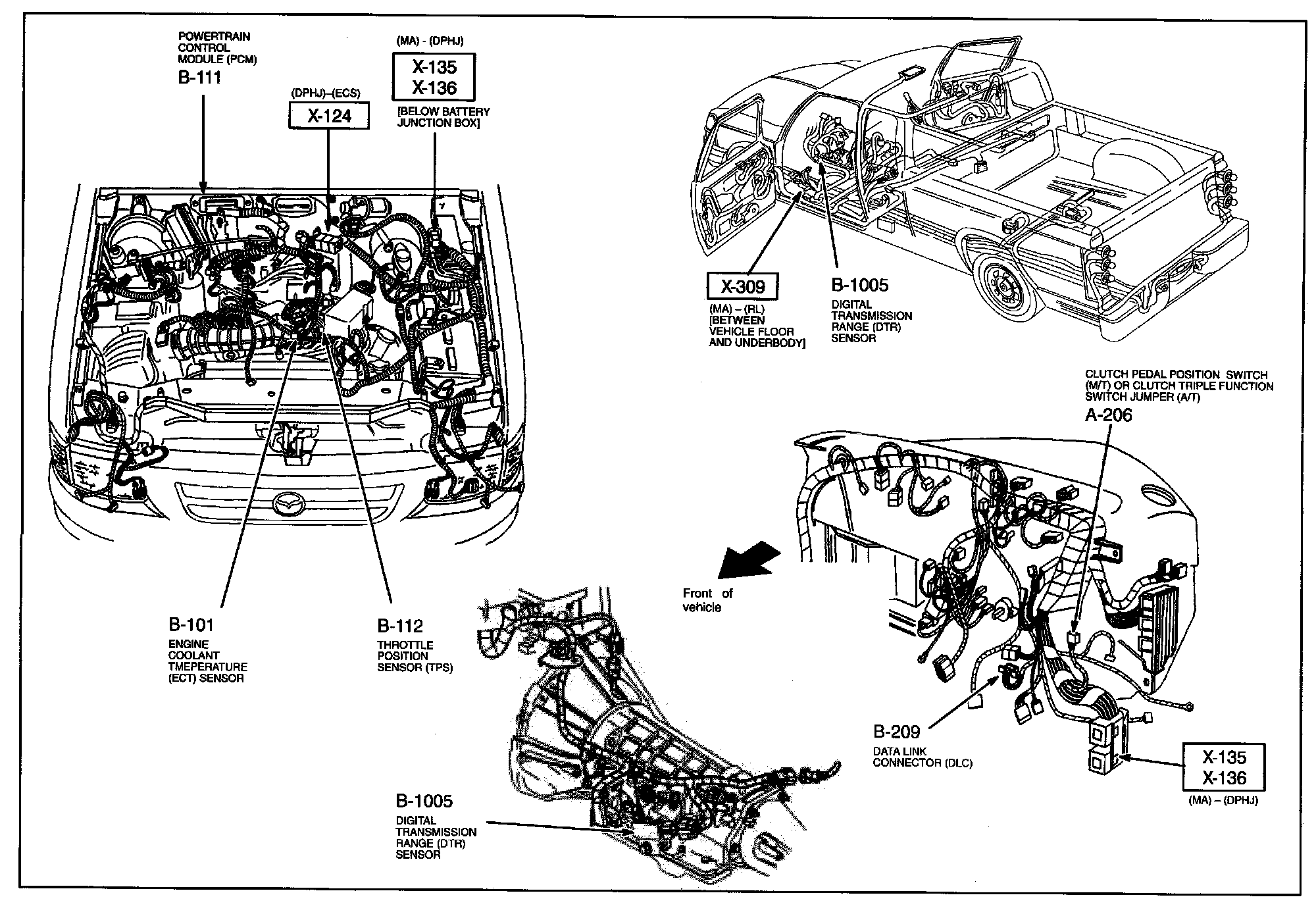

B-2c - Engine Control System Harness/Connector Symbols:

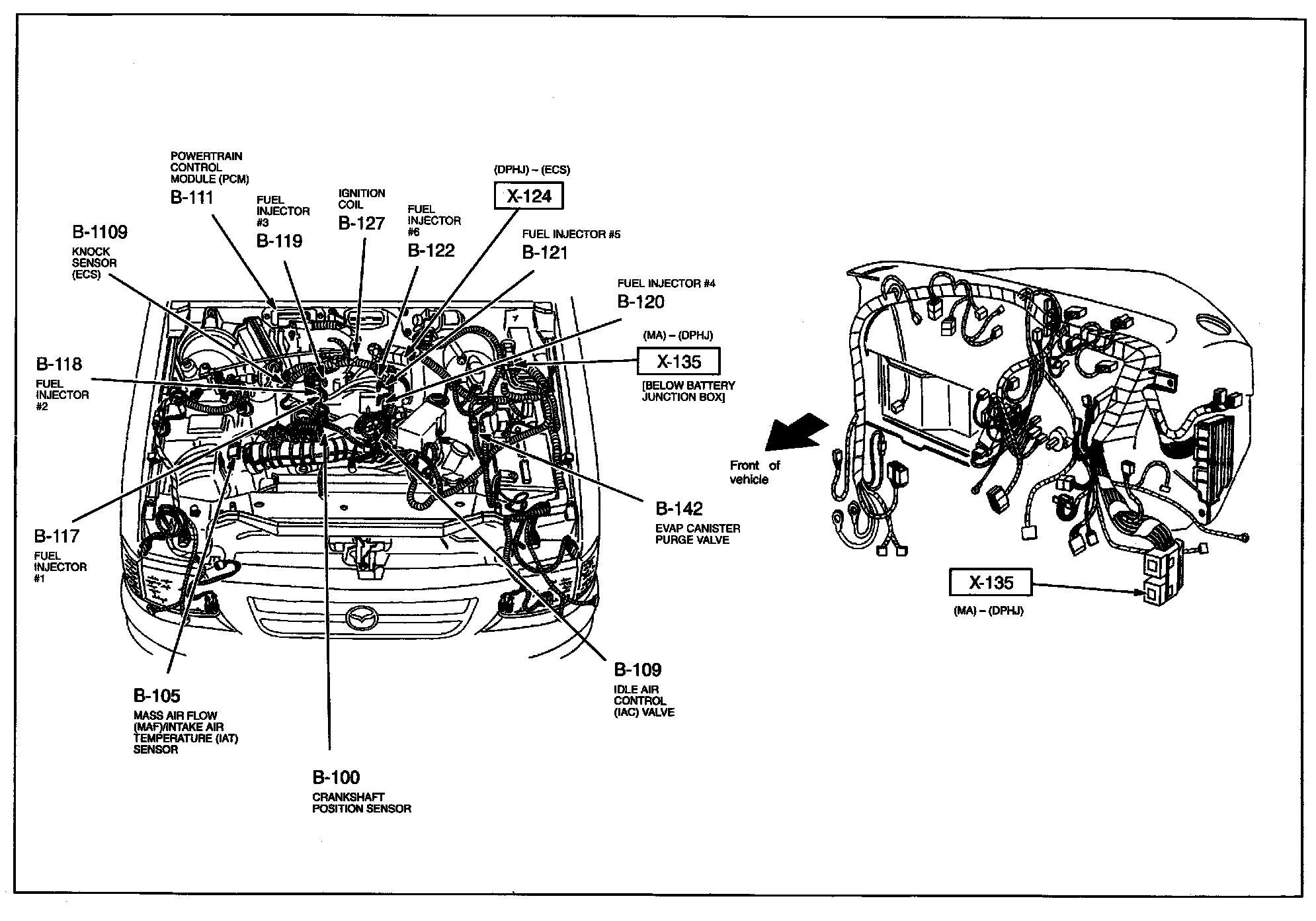

B-2d - Engine Control System Harness / Connector Symbols:

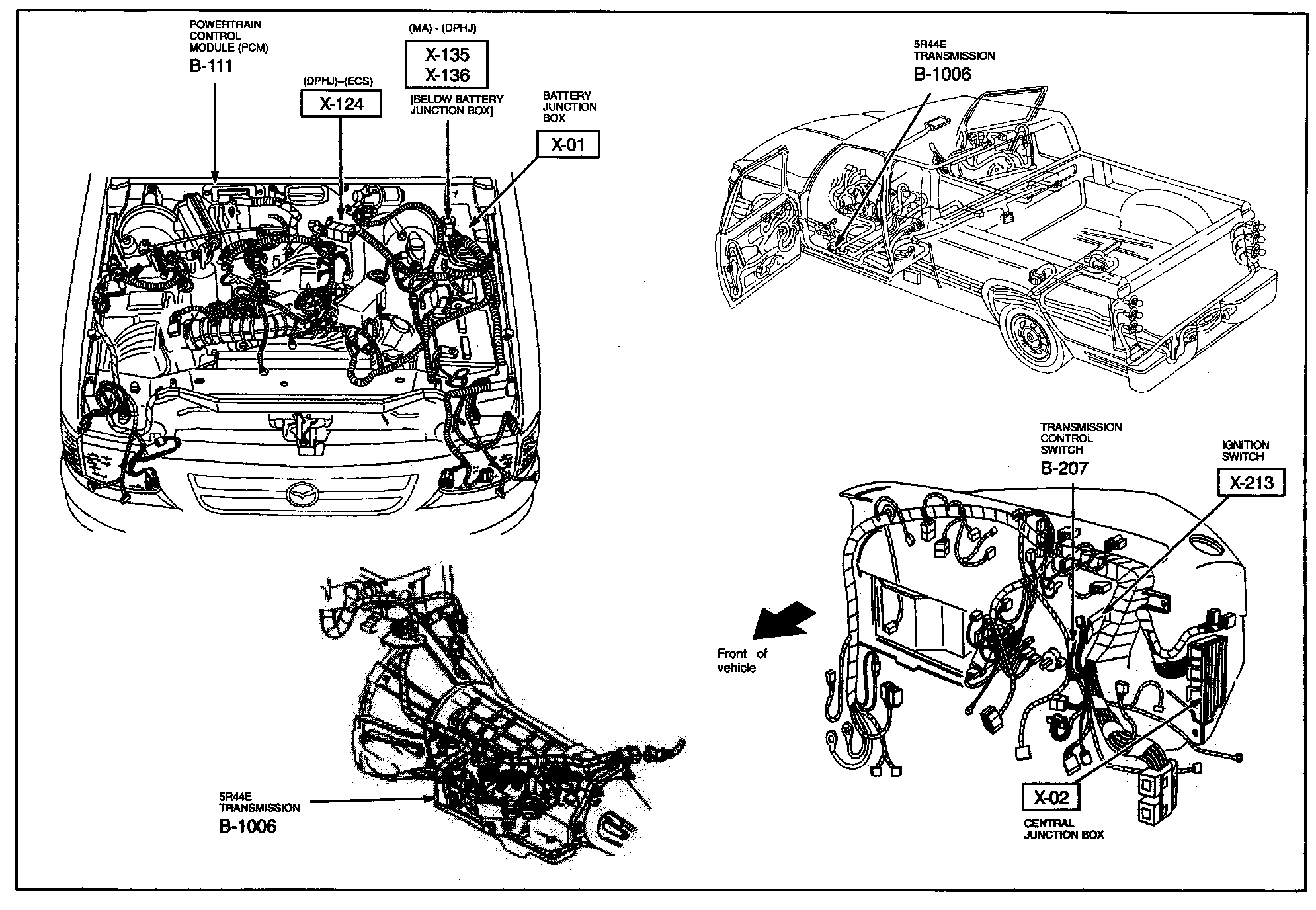

B-2e - Engine Control System Harness / Connector Symbols:

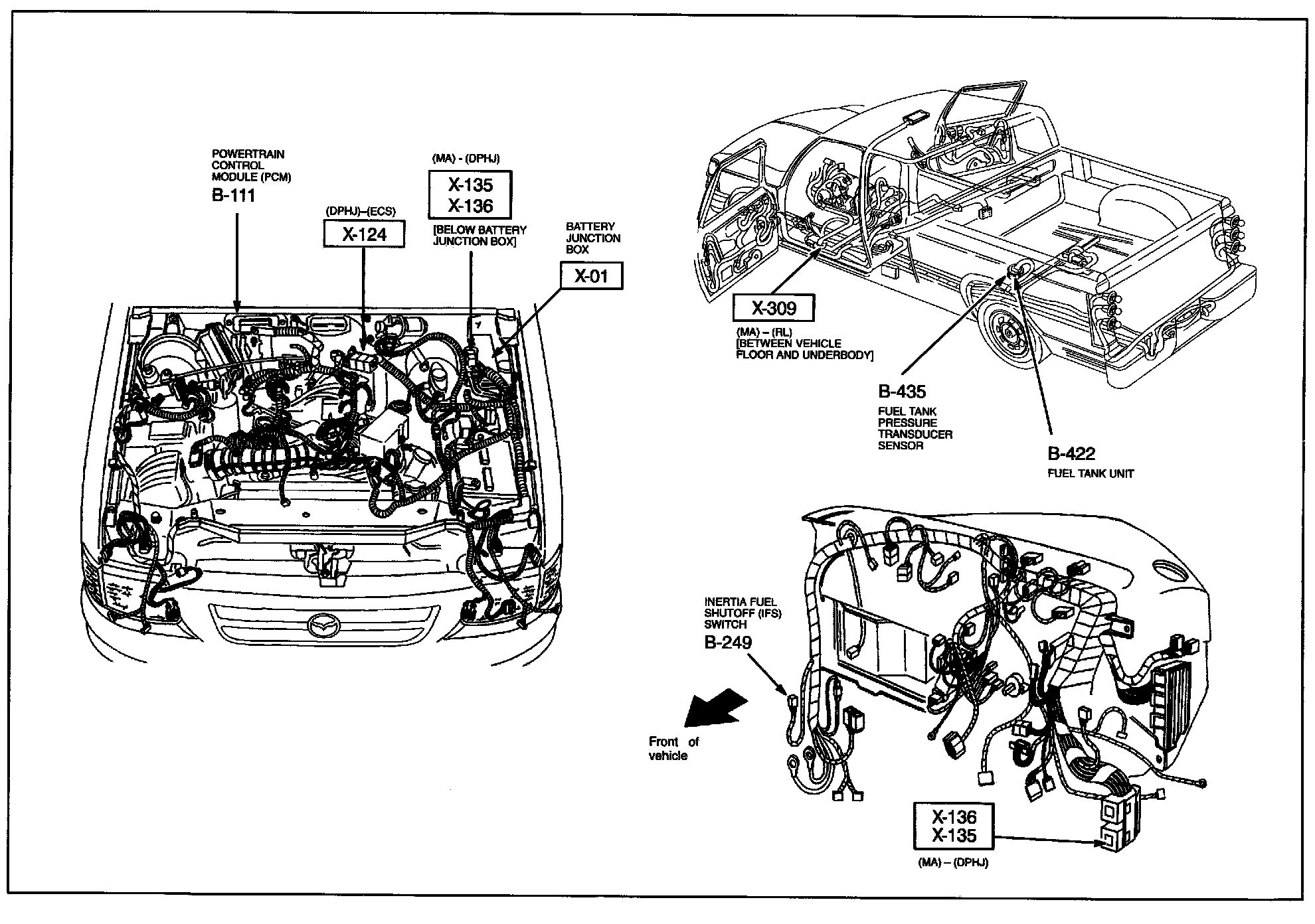

B-2f - Engine Control System Harness / Connector Symbols:
