Vehicle Speed Sensor: Service and Repair

INTERMEDIATE SHAFT SPEED (ISS) SENSOR REMOVAL / INSTALLATION
1. Raise and support the vehicle.

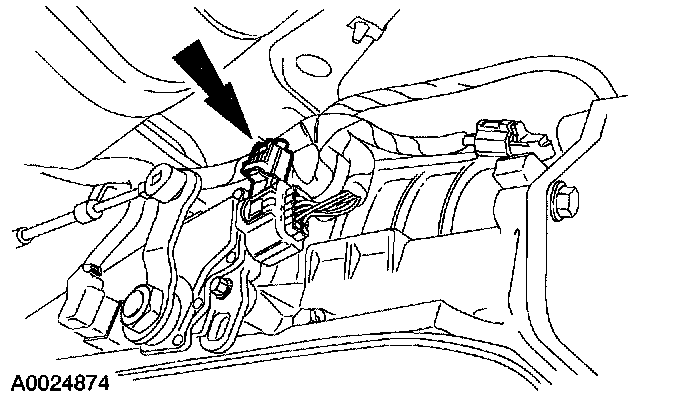

2. Disconnect Intermediate Shaft Speed (ISS) sensor electrical connector.

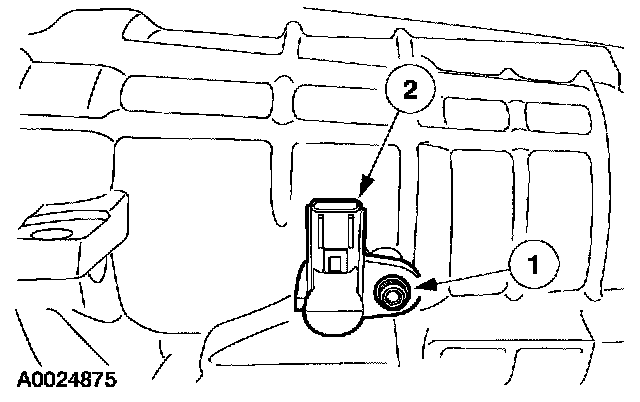

3. Remove ISS sensor.
1) Remove the screw.
2) Remove the ISS sensor from the transmission.
3) Inspect the ISS sensor O-ring for damage. If damaged, install a new O-ring.
4. Inspect and lubricate O-ring with petroleum jelly.

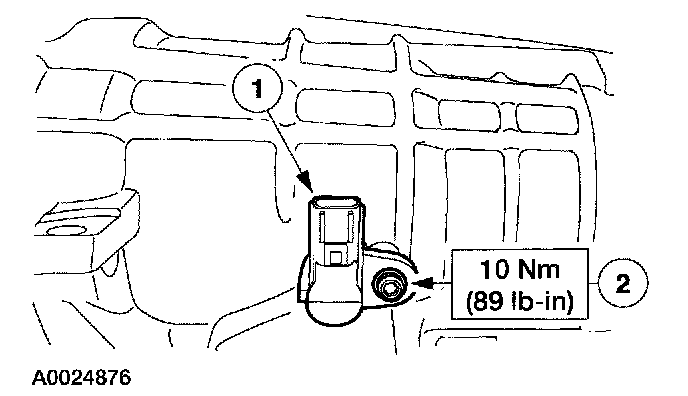

5. Install the (1) ISS sensor into the transmission.





6. Tighten the (2) ISS sensor screw.

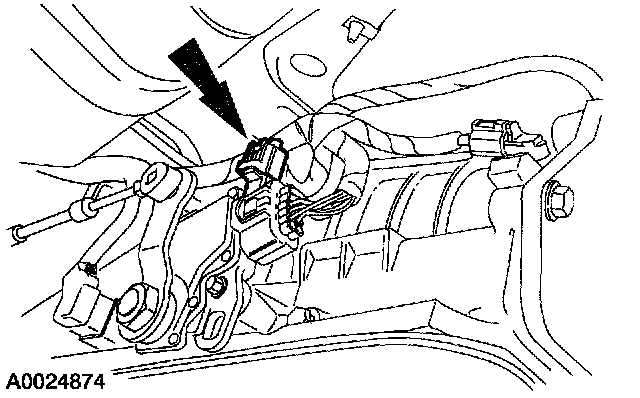

7. Connect OSS sensor electrical connector.
8. Lower the vehicle.
