General Specifications

ENGINE SPECIFICATIONS

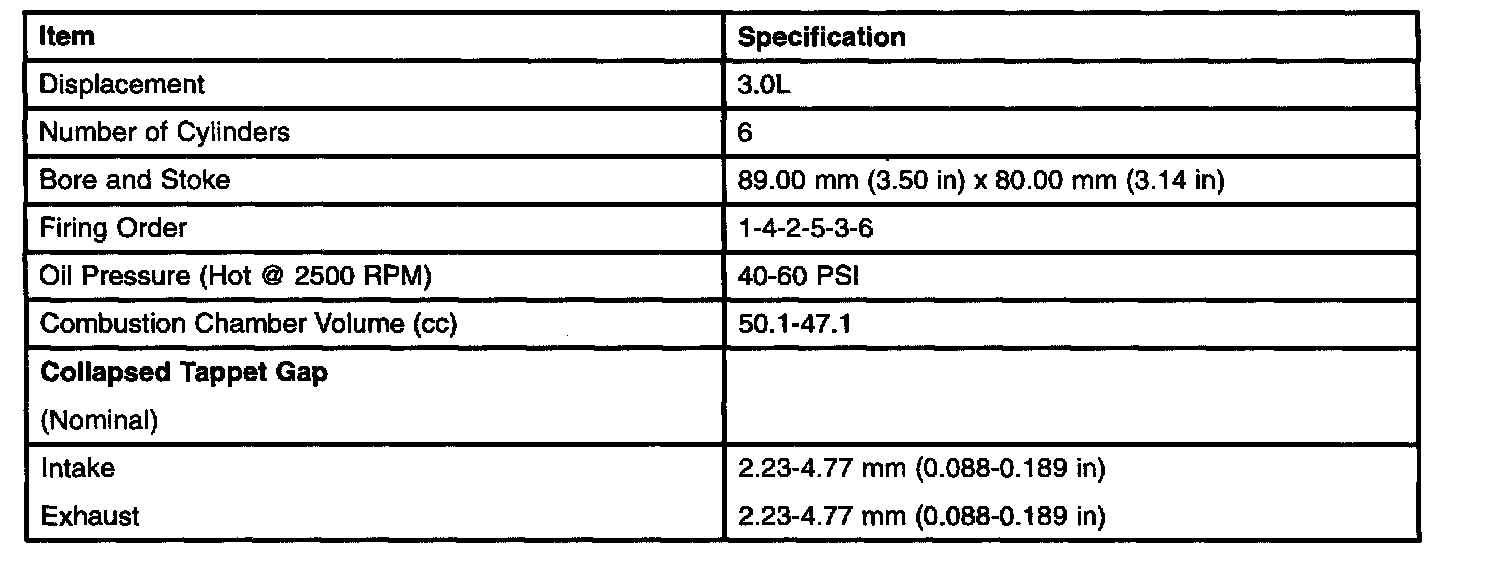

Engine Specifications

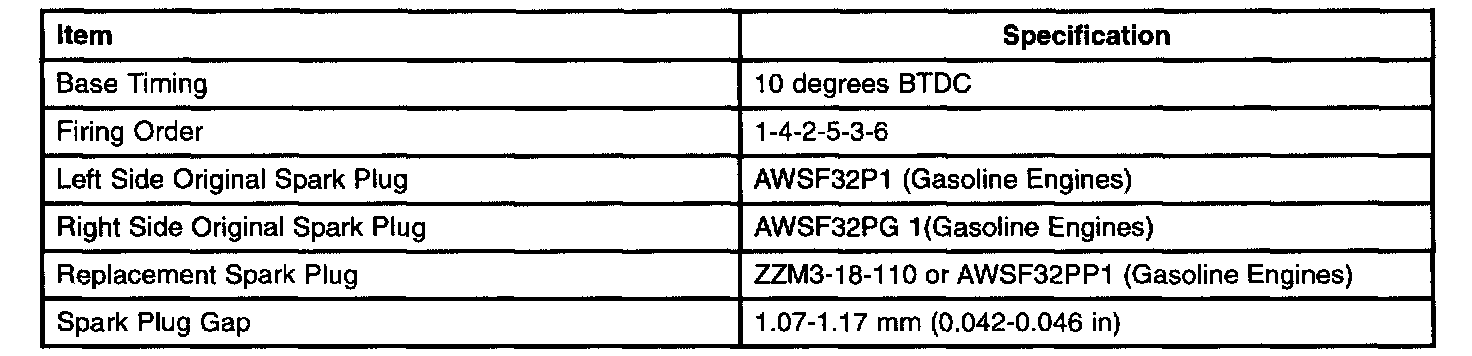

Engine Ignition Specifications
Refer to Vehicle Emission Control Information (VECI) decal for spark plug is removed for examination, it must be reinstalled in the same cylinder. Cylinders 1, 2 and 3 use a "PG" suffix. Cylinders 4, 5 and 6 use a "P" suffix. If a spark plug needs to be replaced, use only spark plugs with the part number suffix letter "PP" as shown on the engine decal.





Fuel System Specifications





Charging System Specifications

Starting System Specifications





Part 1 of 2





Part 2 of 2
