Throttle Position Sensor: Service and Repair

Removal and Installation

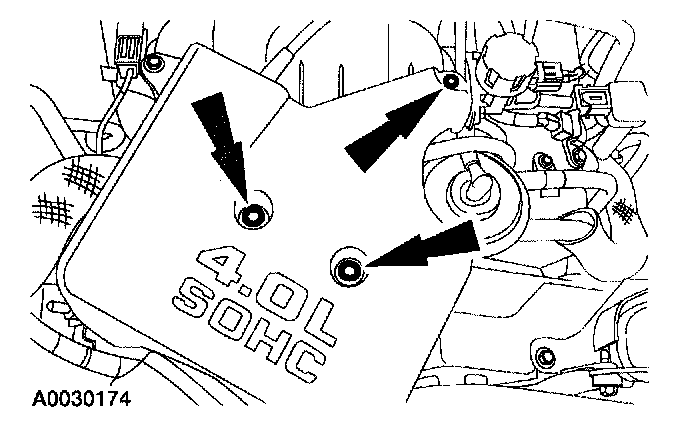

1. Remove the accelerator control snow shield.

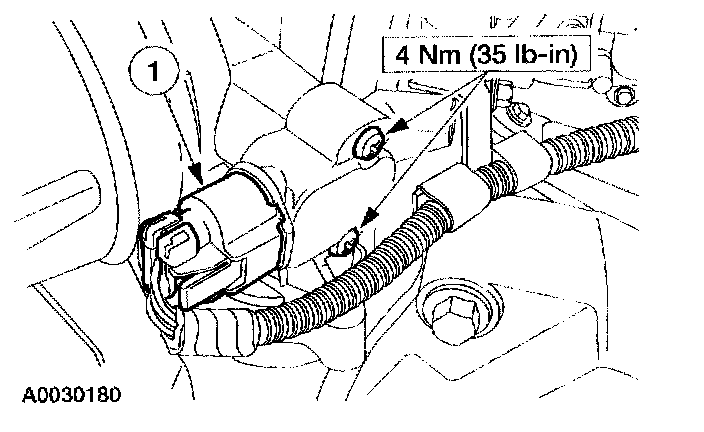

2. Remove the throttle position (TP) sensor.
1. Disconnect the electrical connector
2. Remove the bolts and the TP sensor

3. To install, reverse the removal procedure
