MAT Set End Plate

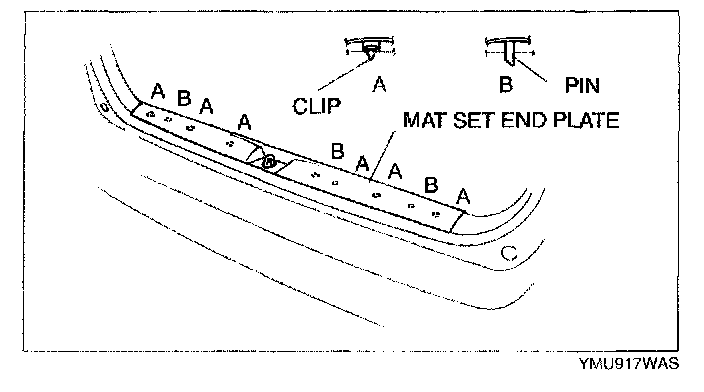

MAT SET END PLATE REMOVAL/INSTALLATION

1. Turn the weatherstrip over.
2. Disengage clips A and pins B using a fastener remover, and remove the mat set end plate.
3. Install in the reverse order of removal.
