Front Door Lock-Link Switch
FRONT DOOR LOCK-LINK SWITCH INSPECTIONNOTE: The front door lock-link switch is together with the front door lock actuator.
1.
Disconnect the front door lock actuator connector.
Driver's/Passenger's Side (With Theft-Deterrent System):
2.

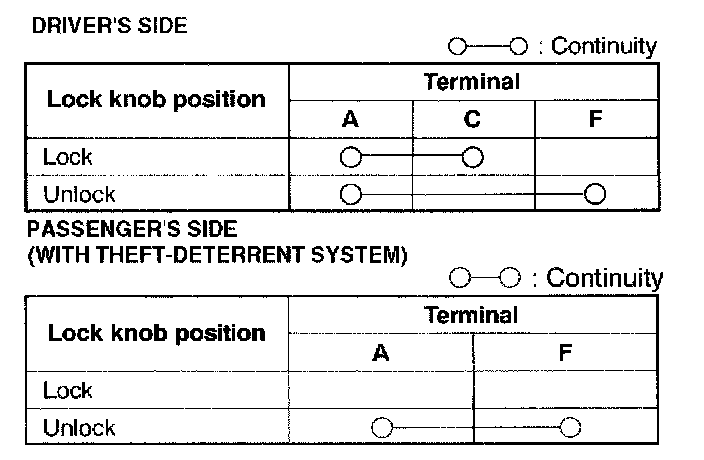

Inspect for continuity between the front door lock-link switch terminals using an ohmmeter.
-
If not as specified, replace the front door lock actuator.
