Power Seat Switch: Testing and Inspection

POWER SEAT SWITCH INSPECTION




1. Disconnect the power seat switch connector.
2. Remove the seat back trim. (See FRONT SEAT DISASSEMBLY/ASSEMBLY.)
3. Disconnect the recliner motor connector.
4. Remove the seat cushion trim. (See FRONT SEAT DISASSEMBLY/ASSEMBLY.)
5. Disconnect the rear tilt motor connector.

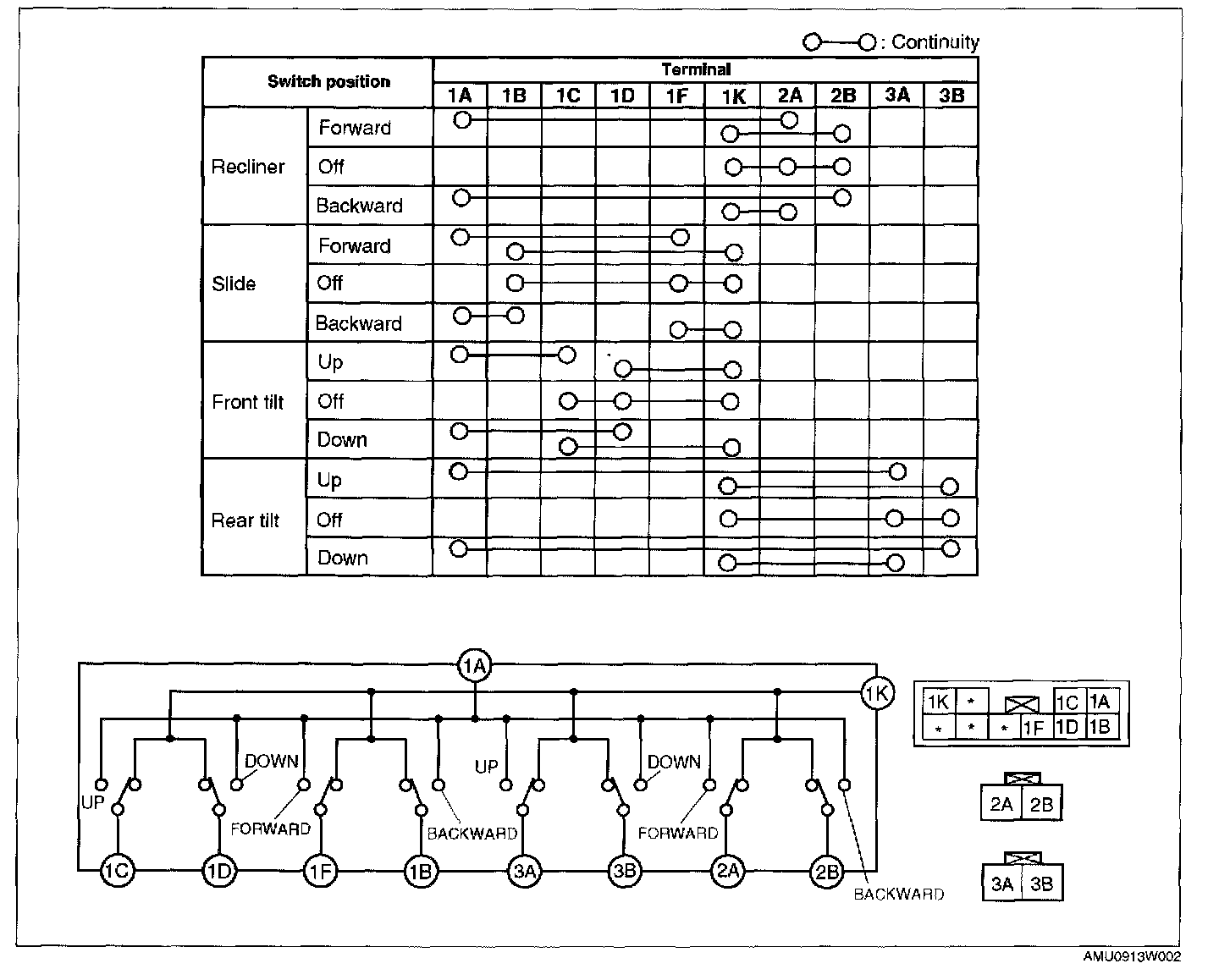

6. Inspect for continuity between the power seat switch, recliner motor connector, and rear tilt motor connector terminals using an ohmmeter.
- If not as specified, replace the power seat switch.
