Cruise Control Servo: Testing and Inspection

CRUISE ACTUATOR INSPECTION

1. Disconnect the cruise actuator connector.
2. Measure the voltage, continuity and resistance at the cruise actuator terminals as indicated below.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise actuator.

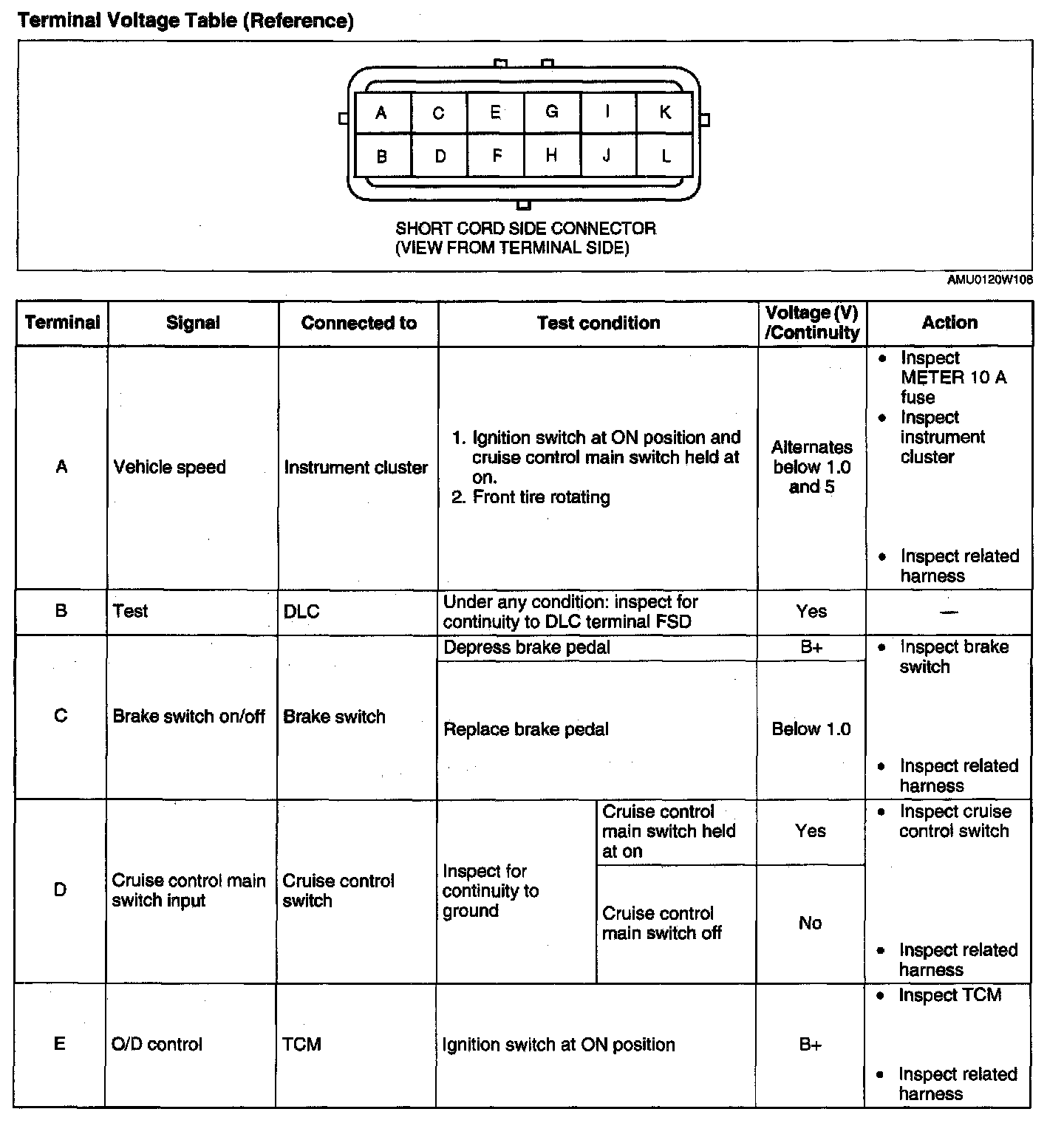

Terminal Voltage Table (Reference) - Terminal (A - E):

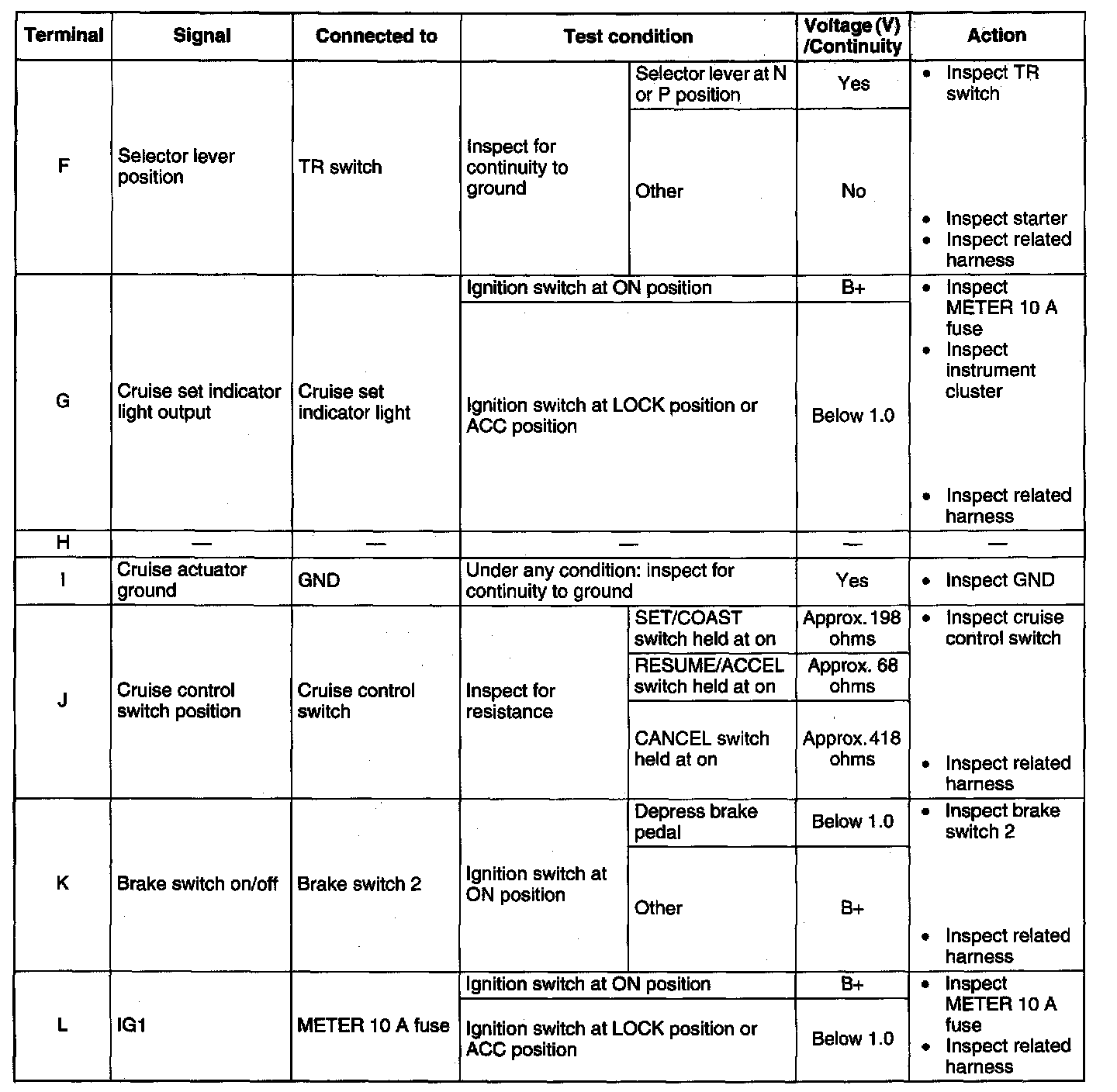

Terminal Voltage Table (Reference) - Terminal (F - L):

Terminal Voltage Table (Reference)
