Cruise Control
>>
Locations
>>
Connector Locations
Connector Locations

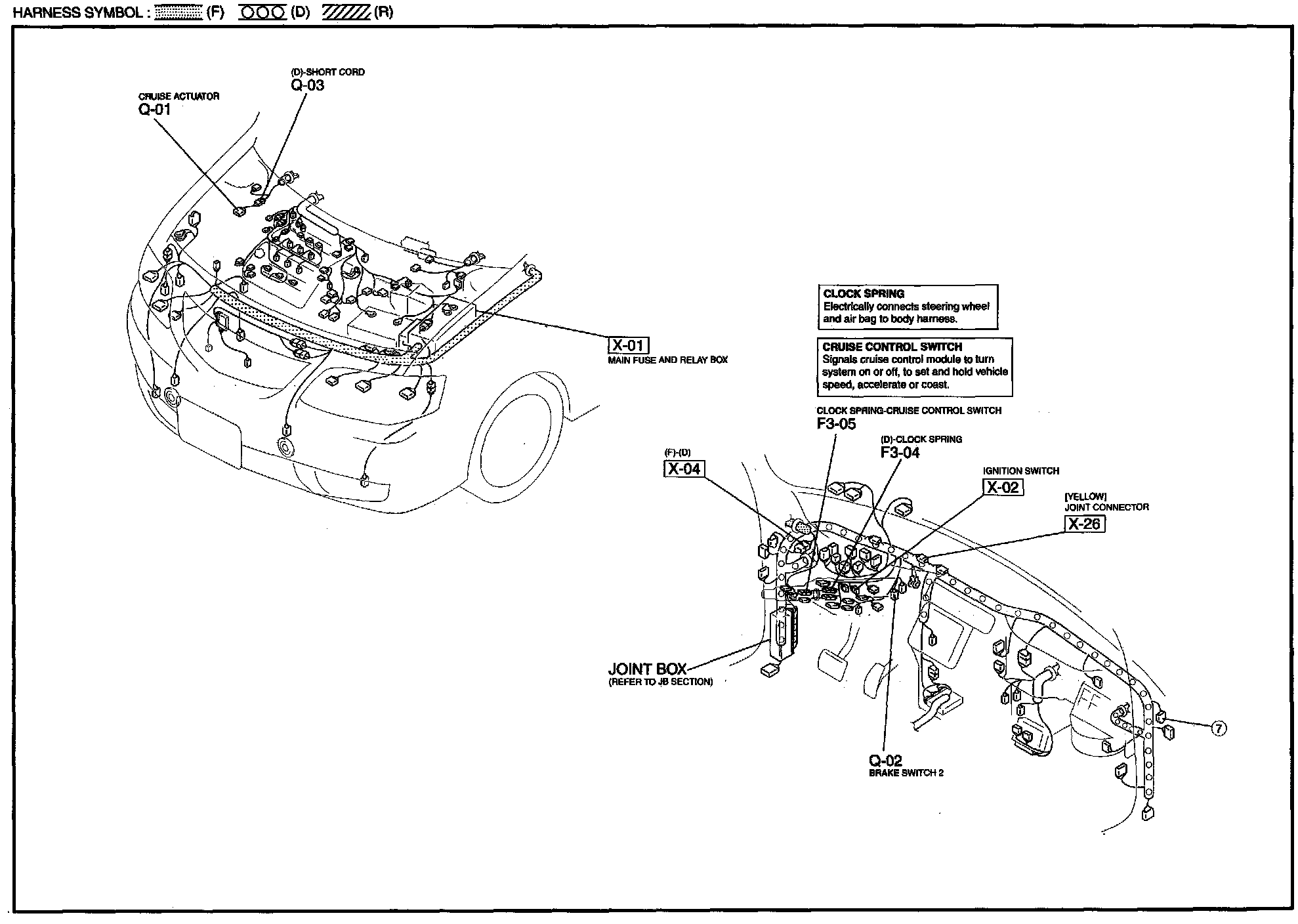

Q - Cruise Control System Harness/Connector Symbols:
