Symptom Related Diagnostic Procedures

Outline
- There are two on-board diagnostic functions: Operation mode, which inspects for and indicates correct operation of the input signals to the control module, and Condition detection mode, which indicates troubles in the system.
- The two functions can be done using either of the following methods:
- Verifying the flashing pattern of the cruise set indicator light in the instrument cluster.
- Verifying the output of the DLC using the SST (WDS or equivalent).

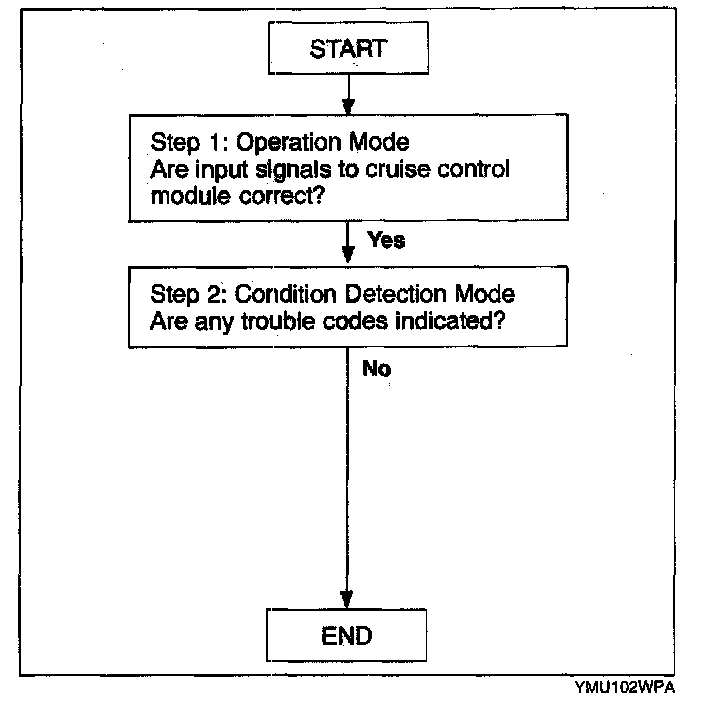

Inspection Order:

Inspection Order
