System Diagram
System Diagram

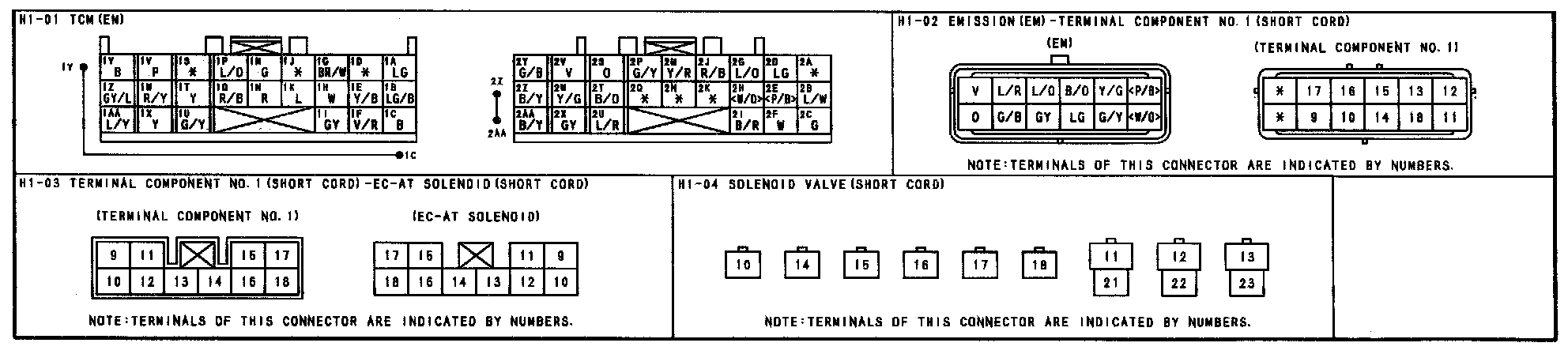

H-1a - EC-AT Control System Connectors:

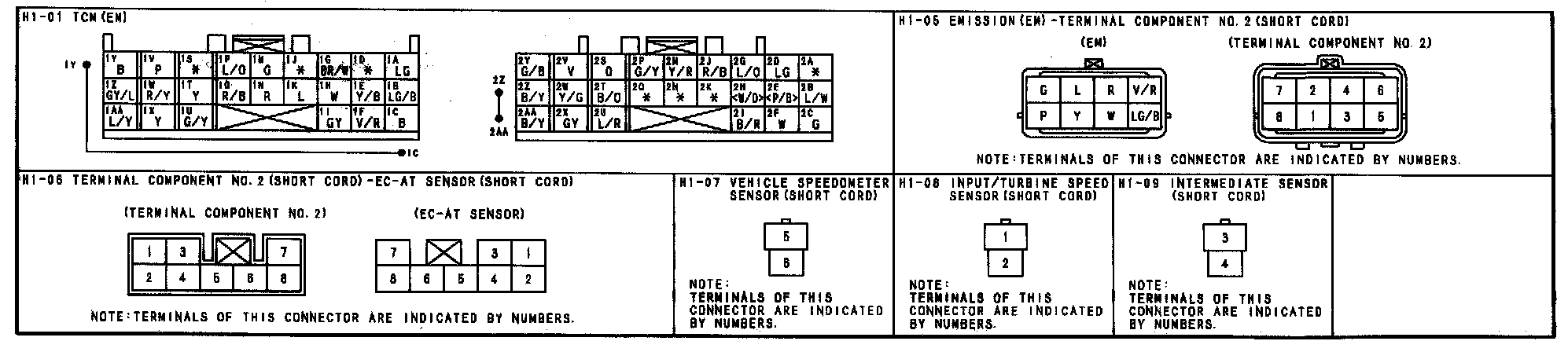

H-1b - EC-AT Control System Connectors:
H-1c - EC-AT Control System Connectors:
