License Plate Lamp
License Plate Lamp

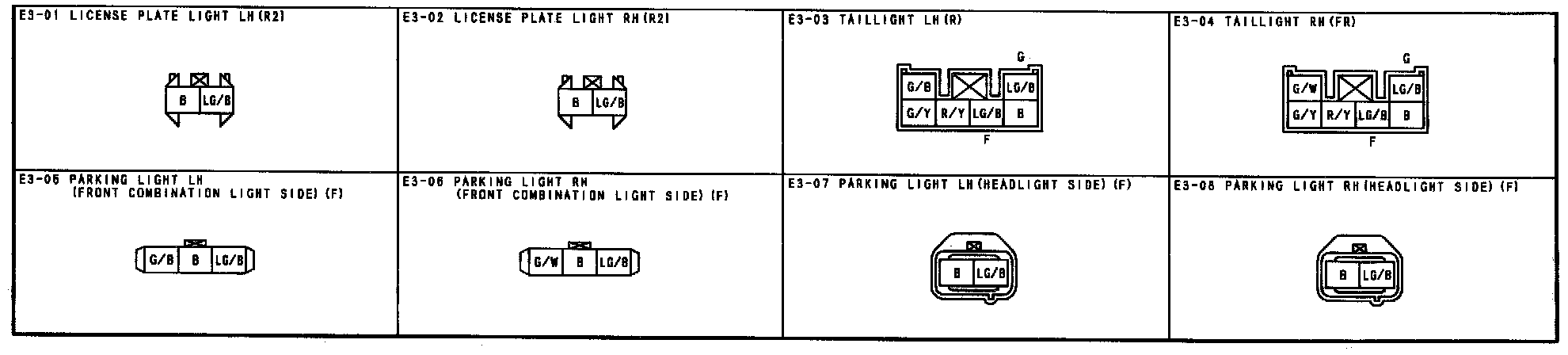

E-3 - License Plate Light / Parking Light / Tail Light Connectors:
