Sliding Door

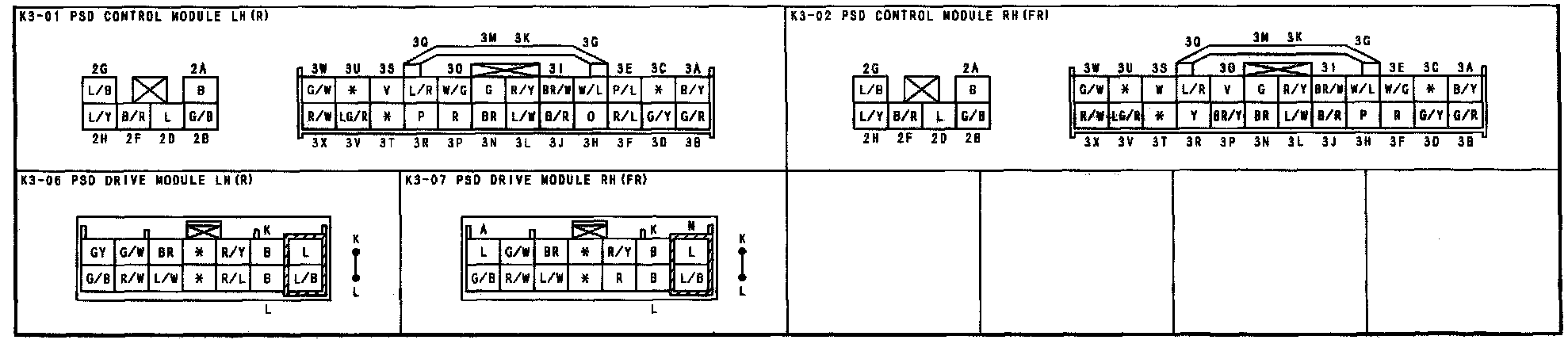

K-3a - Power Sliding Door(PSD) Connectors:

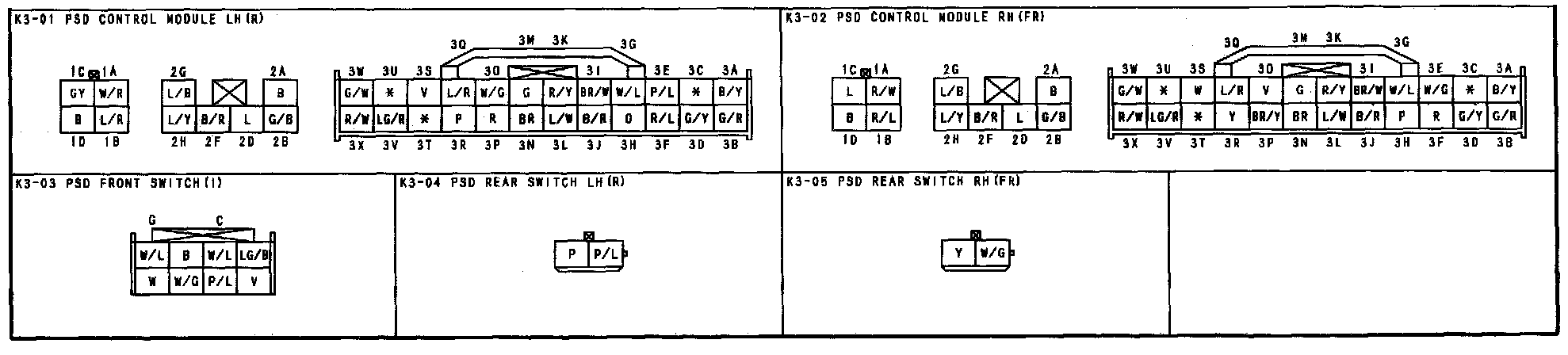

K-3b - Power Sliding Door(PSD) Connectors:

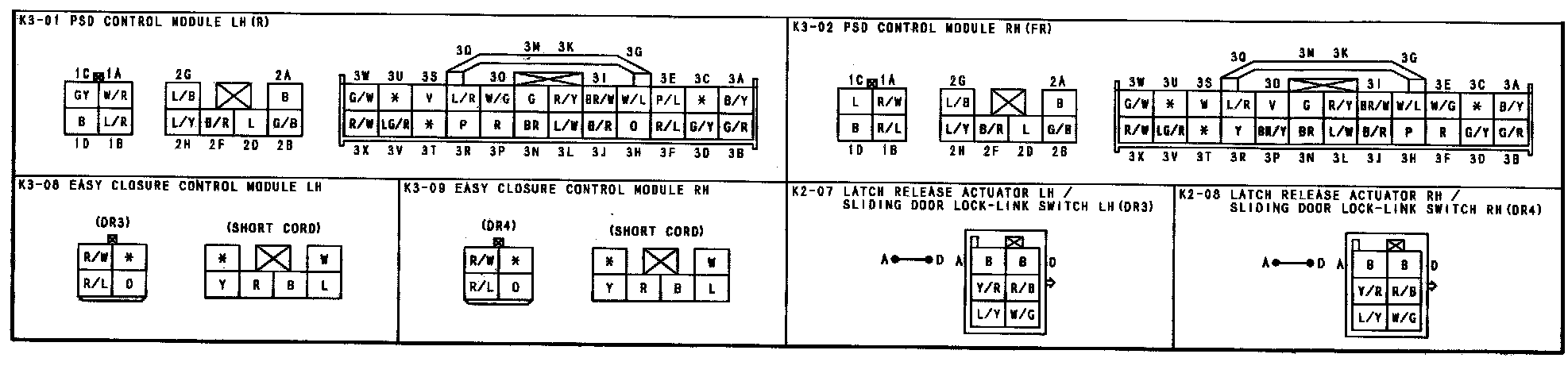

K-3c - Power Sliding Door(PSD) Connectors:



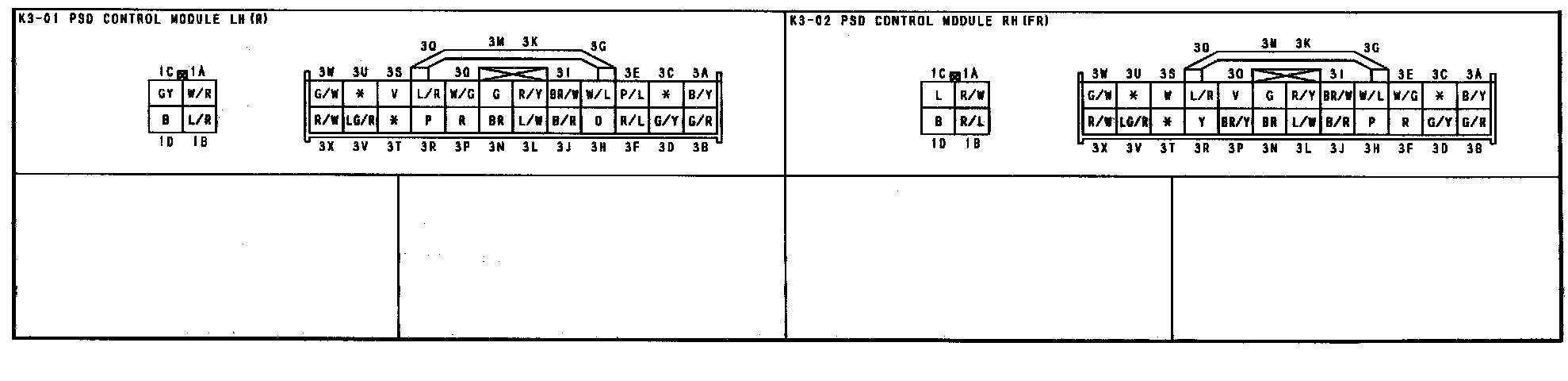

K-3d - Power Sliding Door(PSD) Connectors:



K-3e - Power Sliding Door(PSD) Connectors:

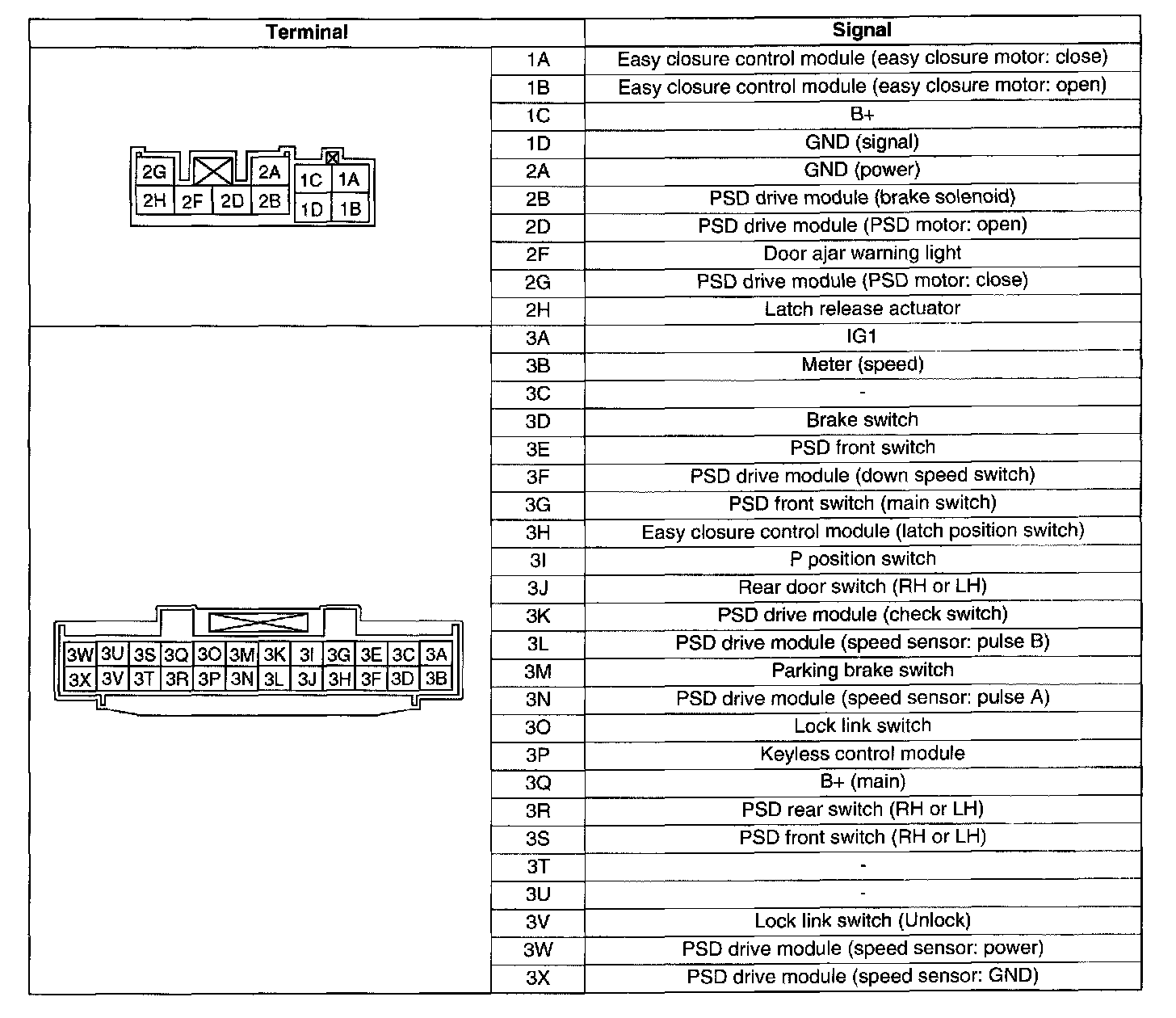

Power Sliding Door (PSD) System Terminal Layout And Signals:

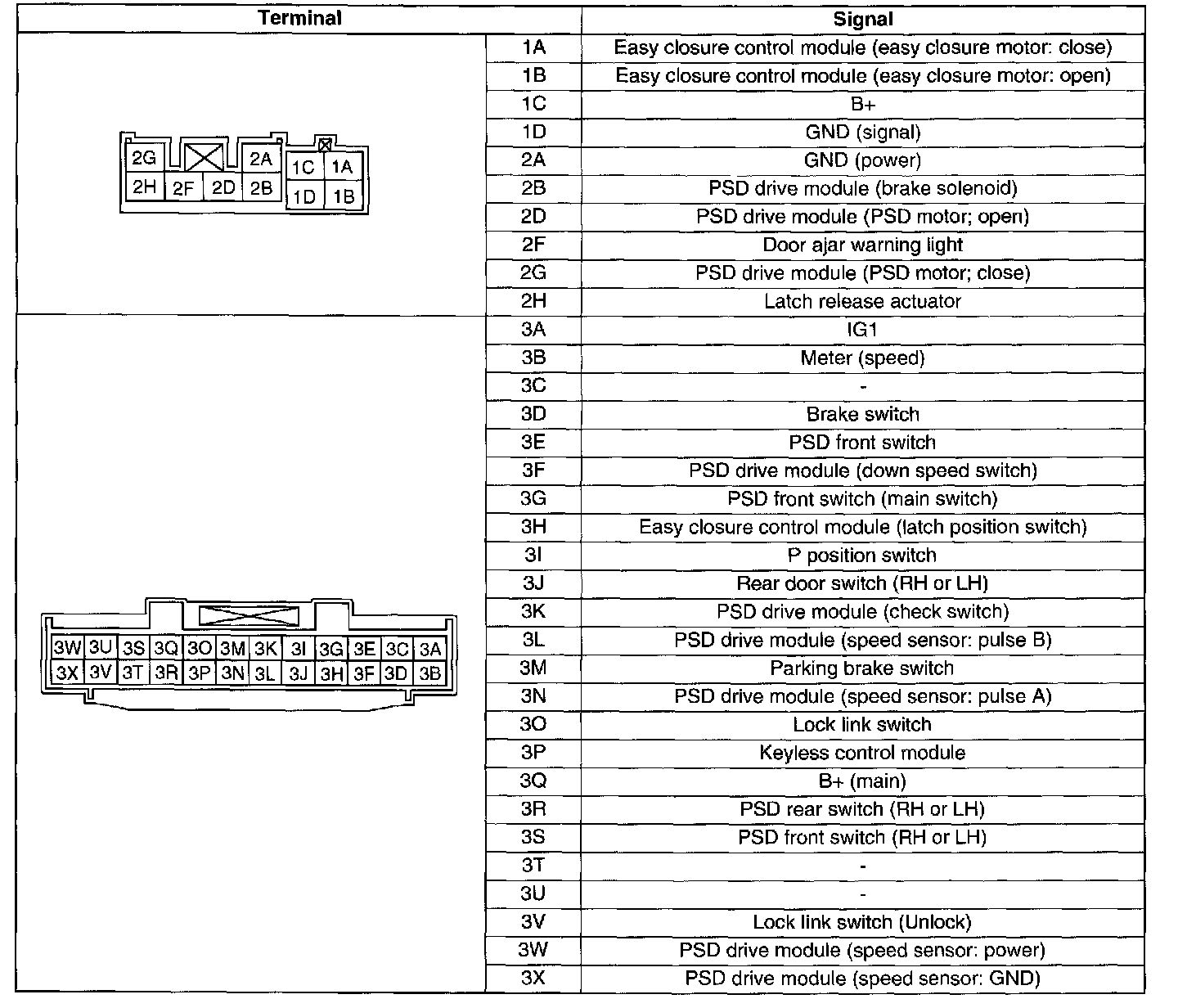

Power Sliding Door (PSD) System Terminal Layout And Signals:
