Antitheft and Alarm Systems

T-1 - Immobilizer System Circuit:

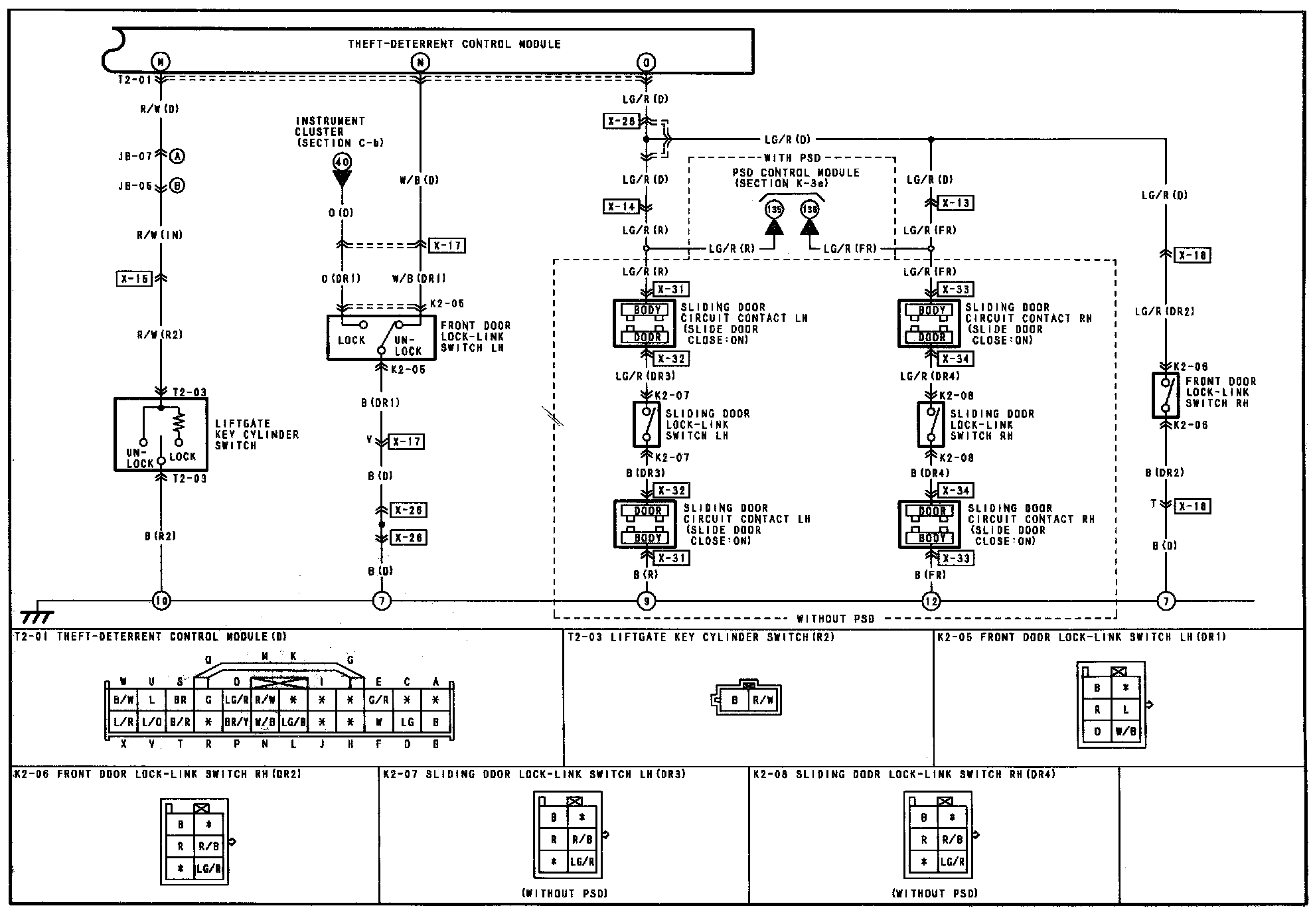

T-2a - Theft-Deterrent System Circuit:

T-2b - Theft-Deterrent System Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
