Keyless Entry

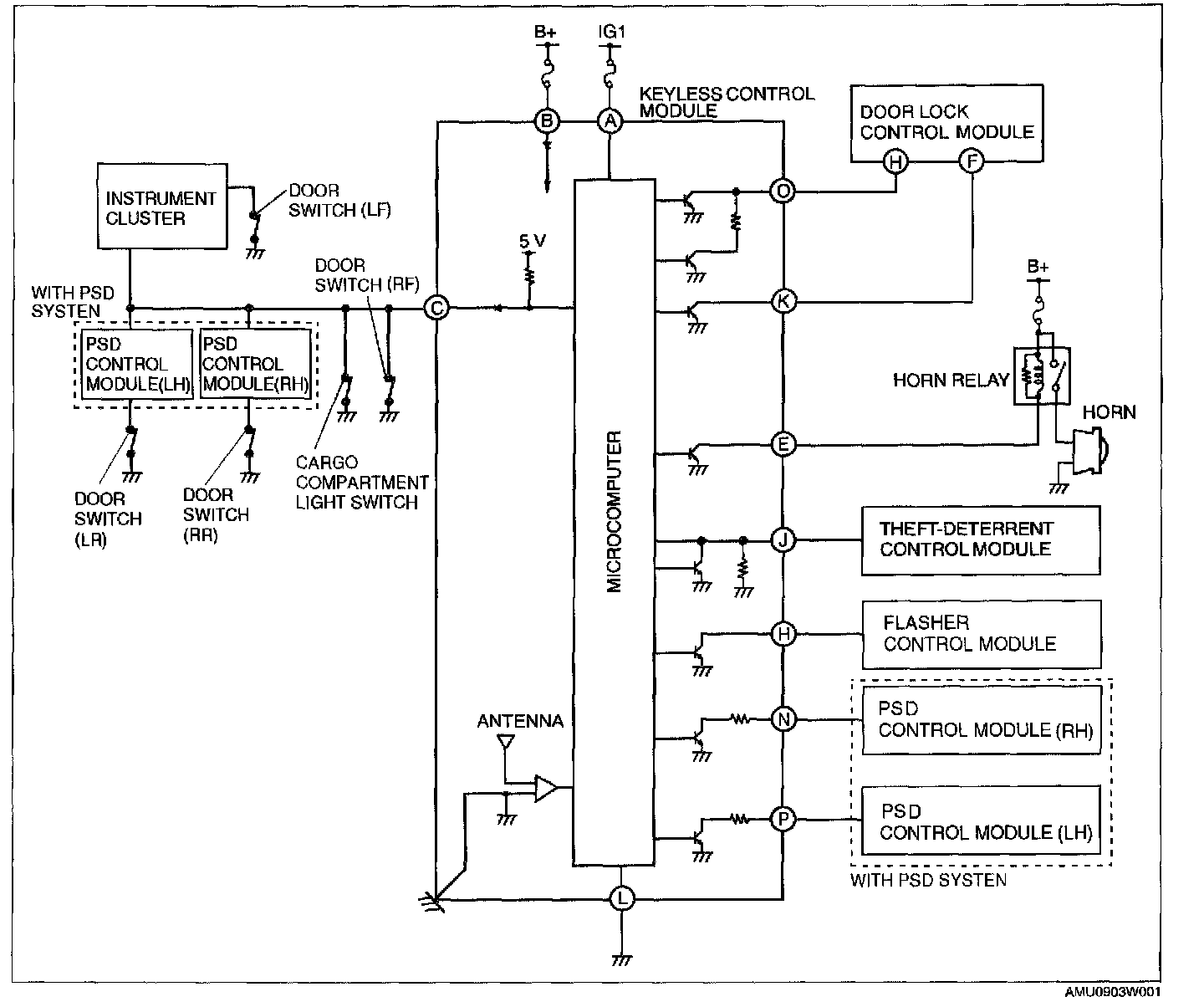

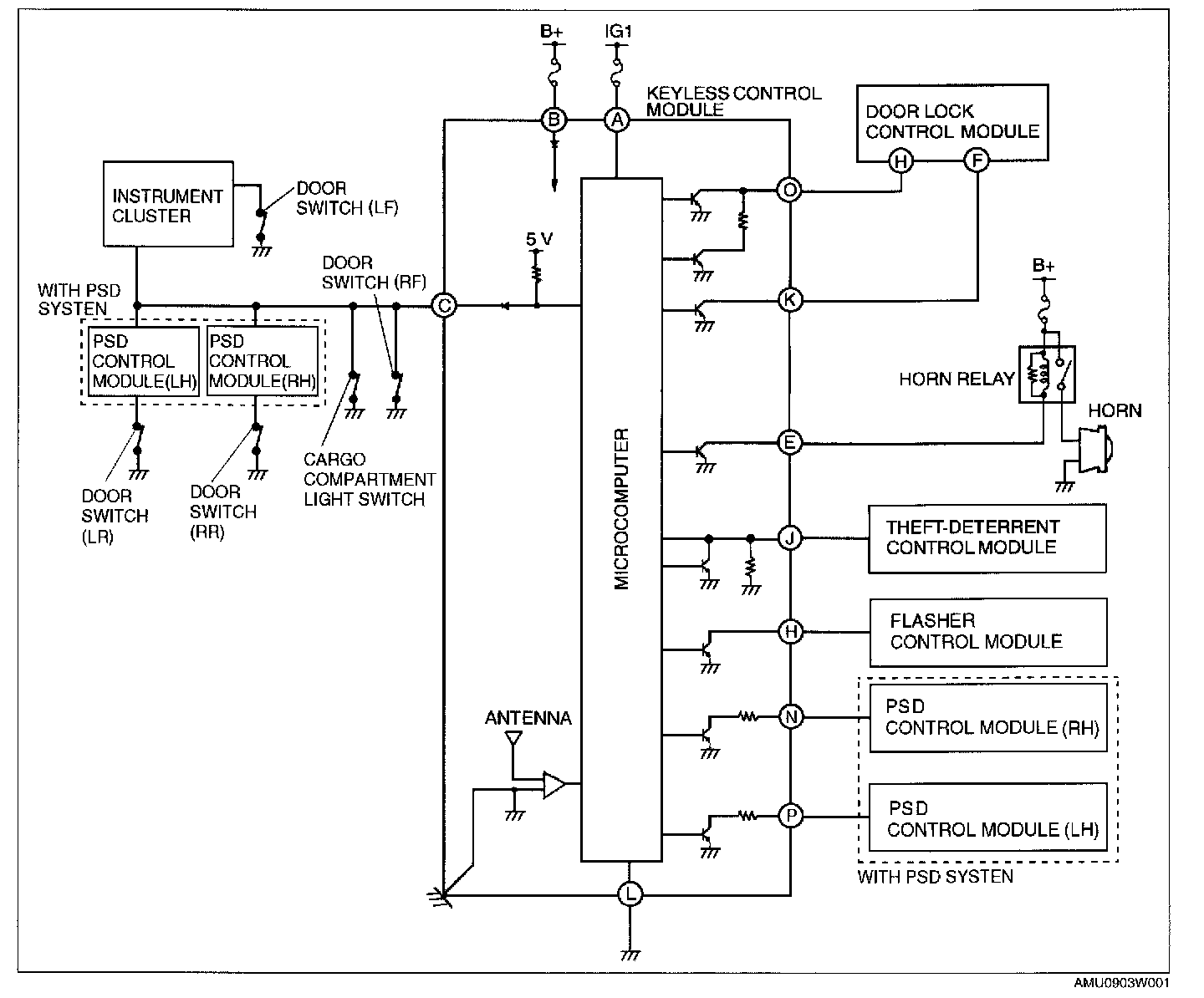

I-4 - Keyless Entry System Circuit:

Keyless Entry System Wiring Diagram:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
