Power Locks

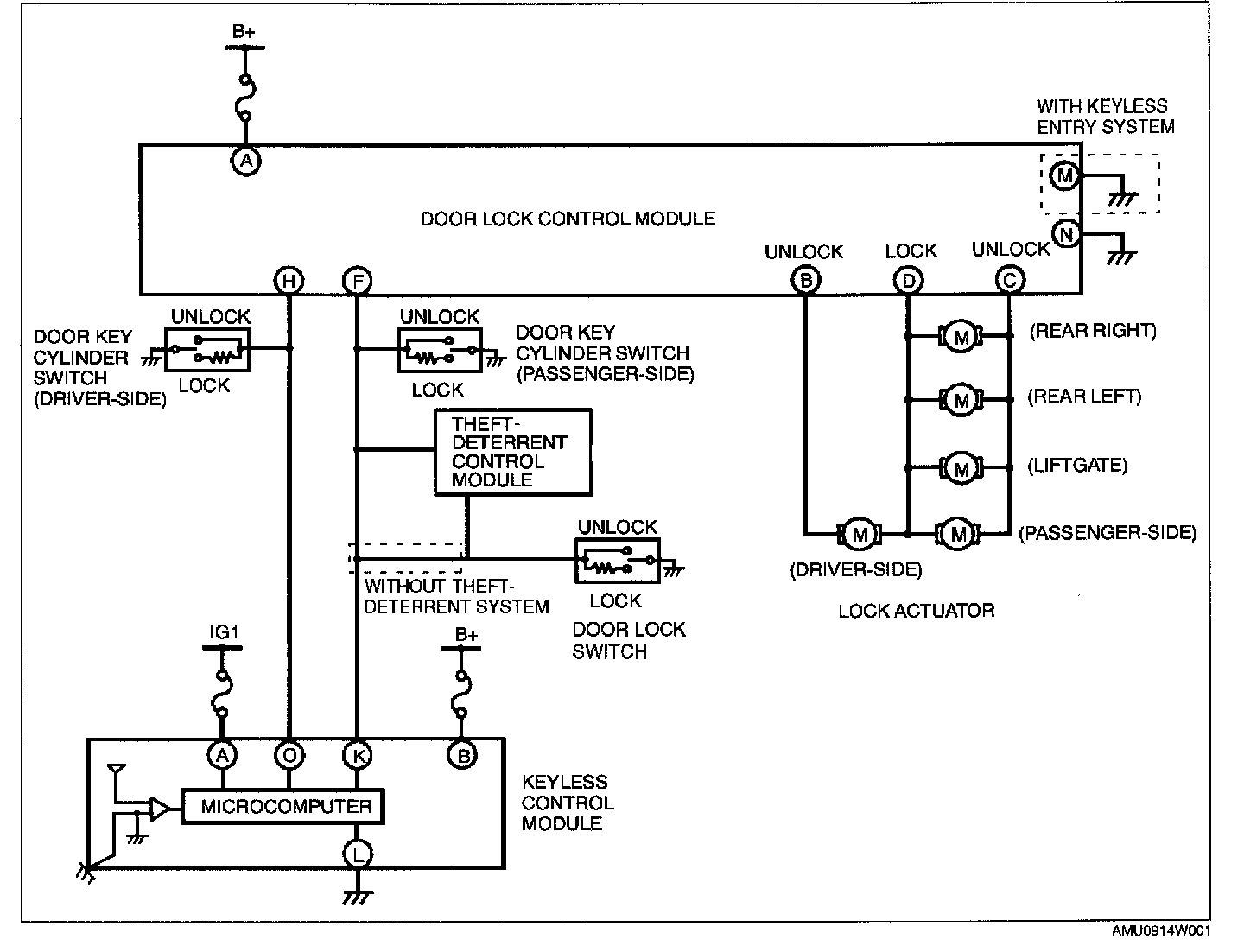

K-2a - Power Door Lock System Circuit:

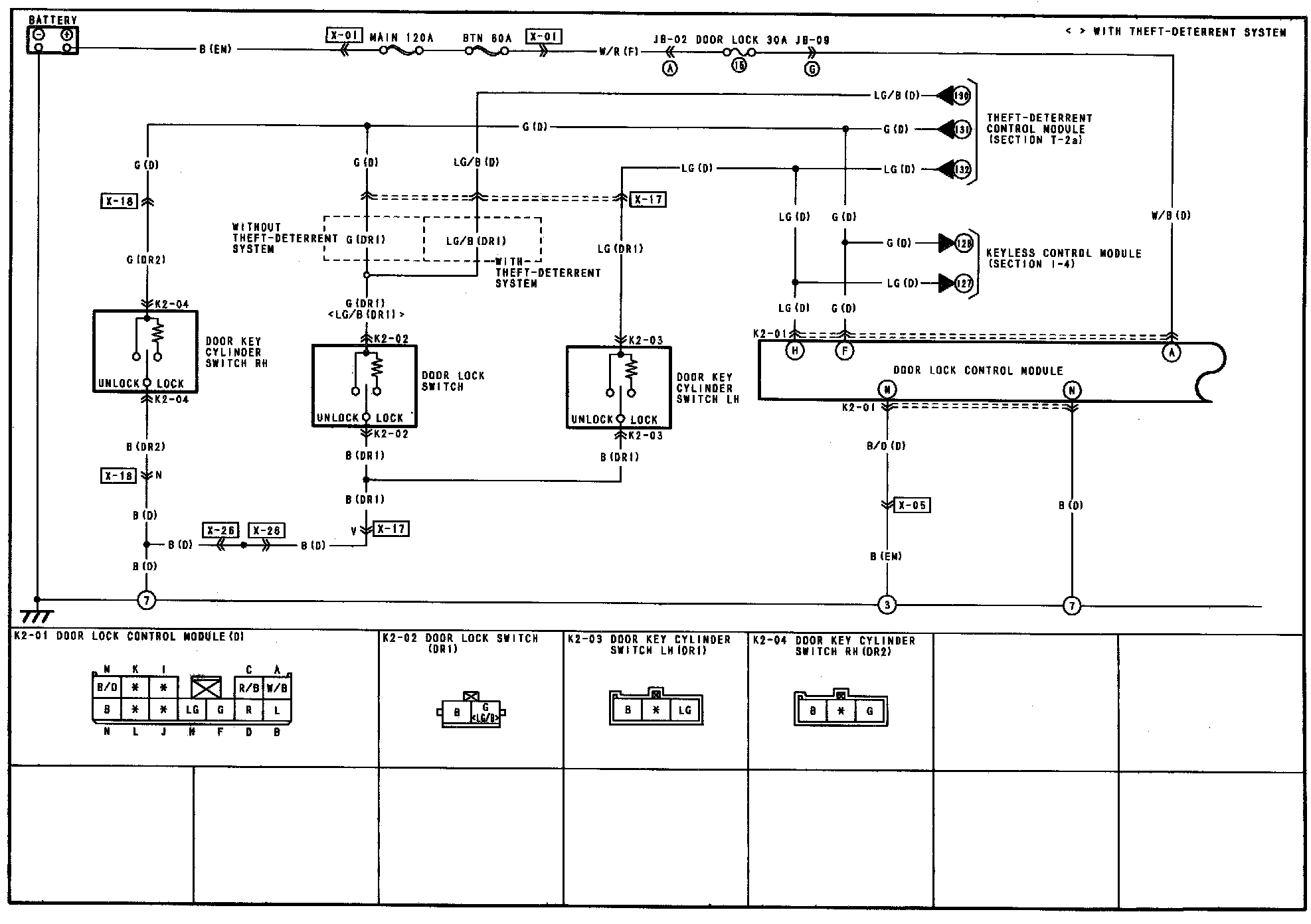

K-2b - Power Door Lock System Circuit:

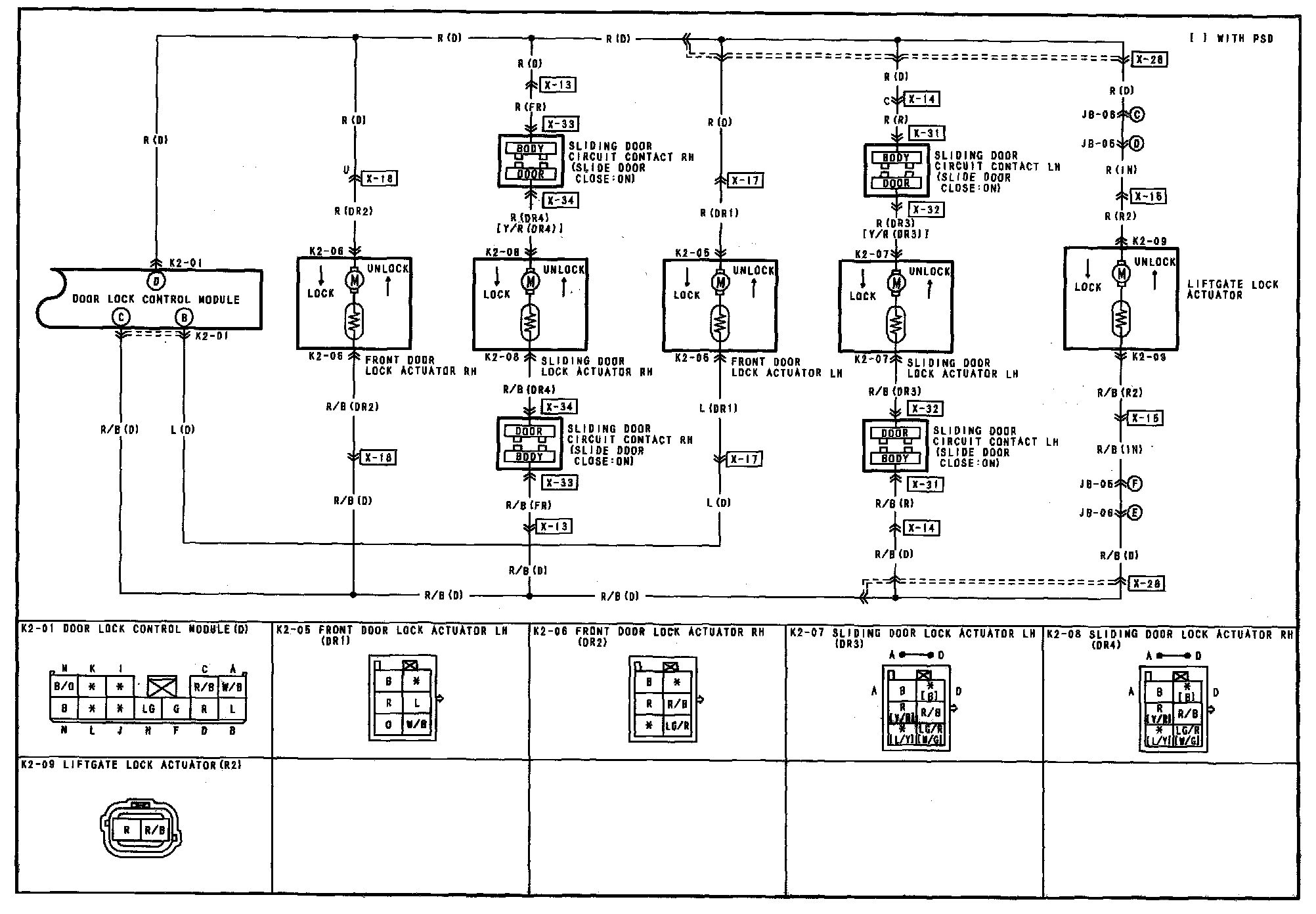

Power Door Lock System Wiring Diagram:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
