Drive Plate Assembly Note

Drive Plate Assembly Note

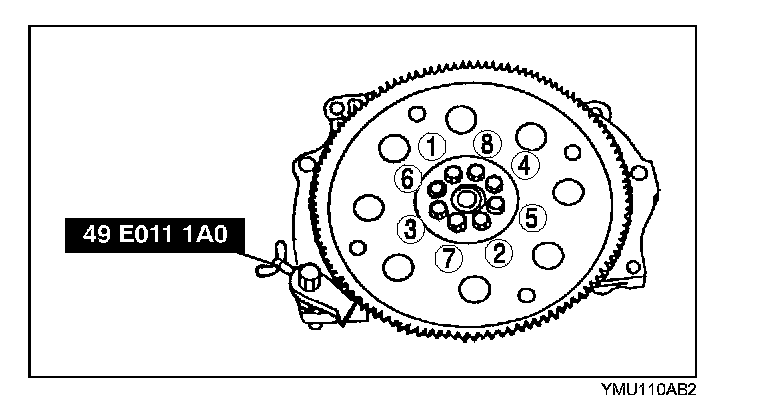

1. Hold the crankshaft using the SST.
2. Tighten the bolts in the order indicated in the figure in several passes.
