Disassembly and Reassembly

ENGINE DISASSEMBLY / REASSEMBLY
1. Disconnect the engine and automatic transaxle.
2. Remove the drive plate.
3. Remove the intake-air system.
4. Remove the exhaust system

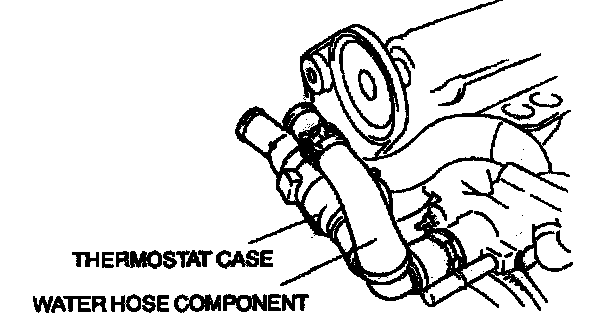

5. Remove the thermostat case and water hose component.
6. Remove the water bypass tube.
7. Remove the Ignition coils.

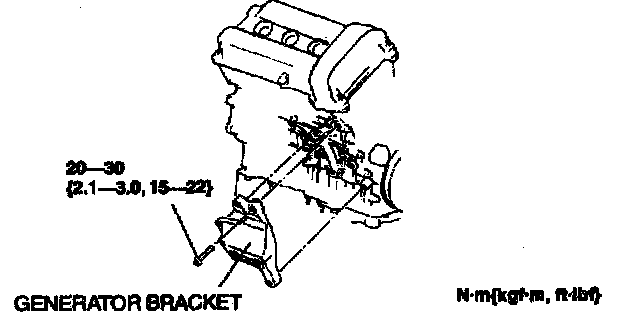

8. Remove the generator bracket.
9. Disassemble in the order indicated in the table.
10. Assemble in the reverse order of disassembly.
