Blower Motor Switch: Service and Repair

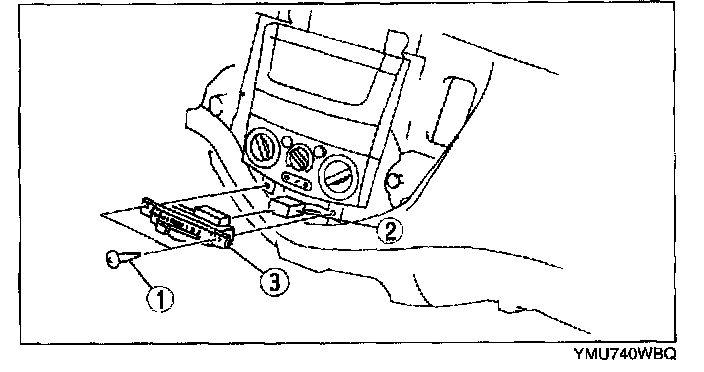

REAR MAIN FAN SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the center upper panel. (See METER HOOD REMOVAL/INSTALLATION.)




3. Remove in the order indicated below.
1. Screw
2. Connector
3. Rear main fan switch

4. Install in the reverse order of removal.

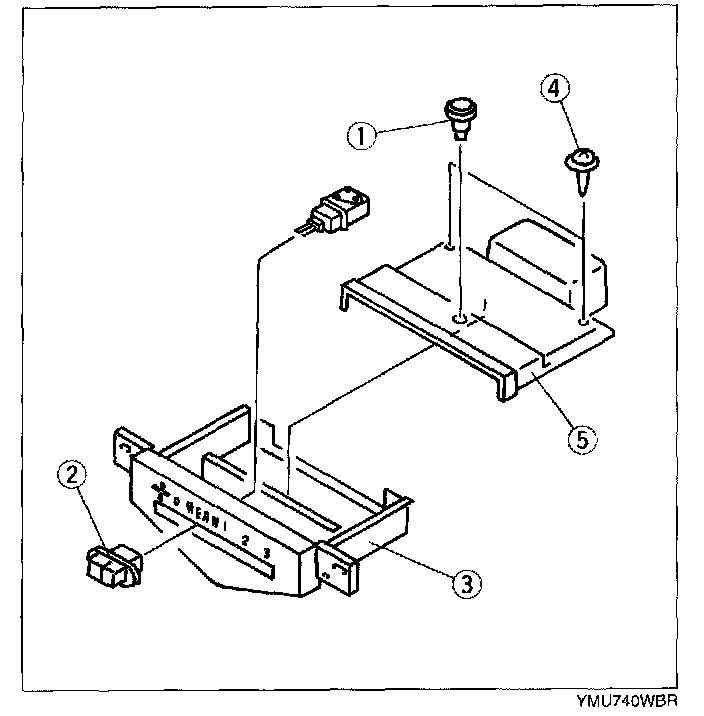

REAR MAIN FAN SWITCH DISASSEMBLY/ASSEMBLY

1. Remove the rear main fan switch.




2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
