Front Fan Switch

FRONT FAN SWITCH INSPECTION

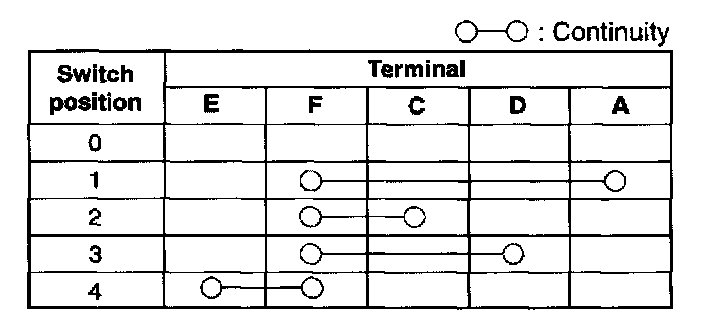

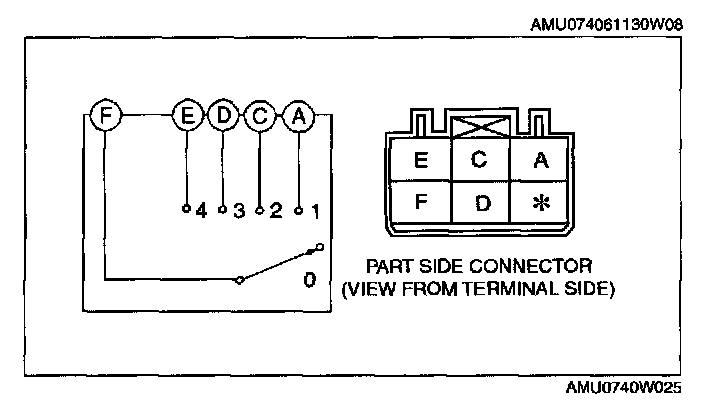

1. Inspect for continuity between the front fan switch terminals using an ohmmeter.
- If not as specified, replace the front fan switch.
