Lighting and Horns: Service and Repair

LIGHT SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

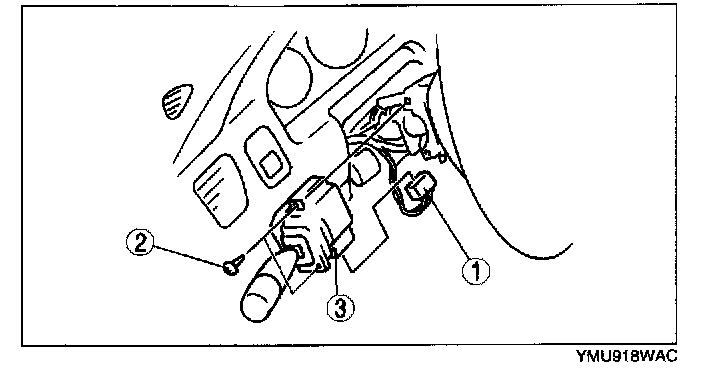

3. Remove in the order indicated below.
1. Connector
2. Screw
3. Light switch

4. Install in the reverse order of removal.
