Home >> Mazda >> 2002 >> MPV V6-3.0L DOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> E-4 - Front Fog Light

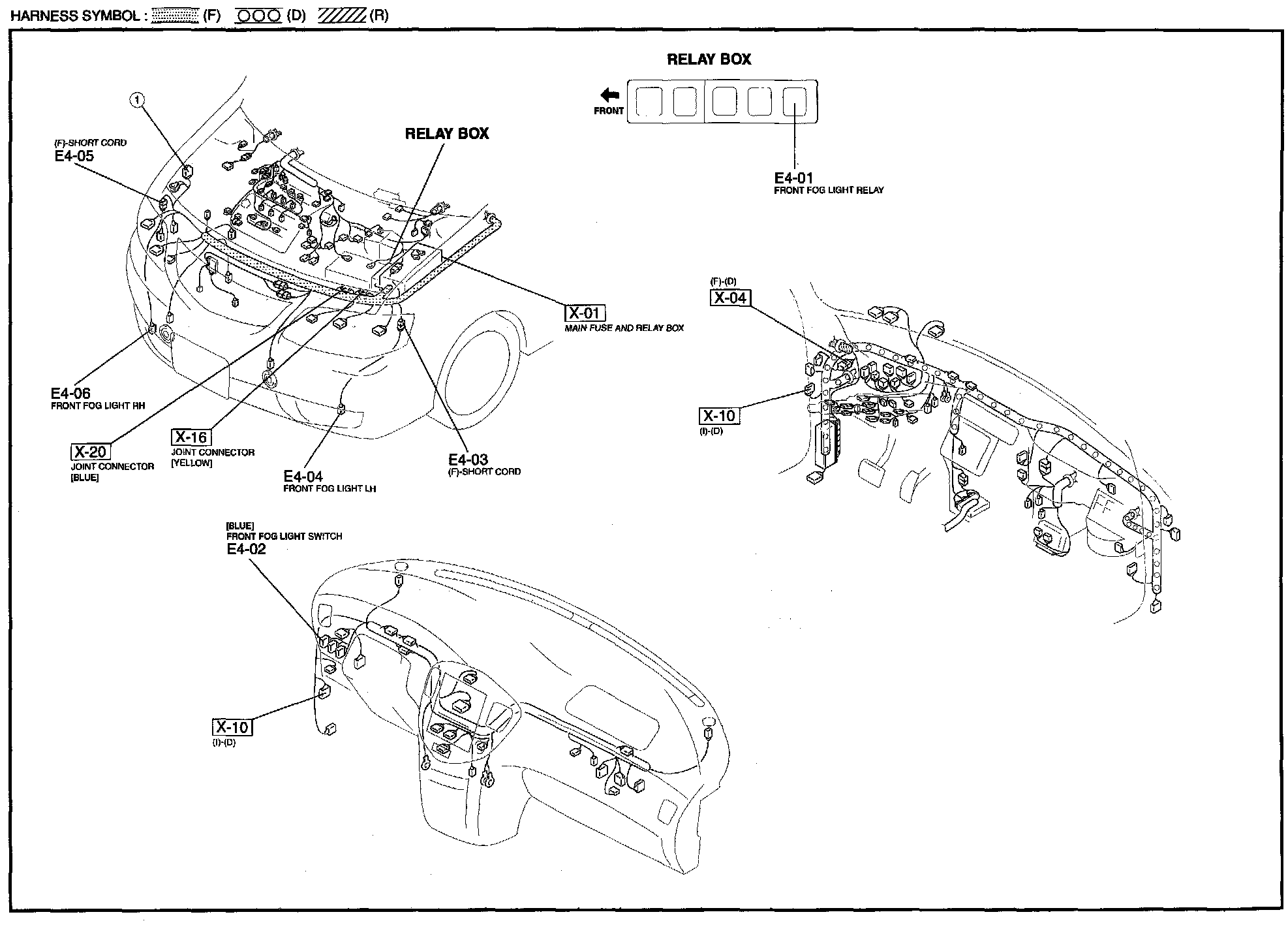

E-4 - Front Fog Light

E-4 - Front Fog Light Harness / Connector Symbols:
