Locations
>>
Connector Locations
>>
H-1a - EC-AT Control System
H-1a - EC-AT Control System

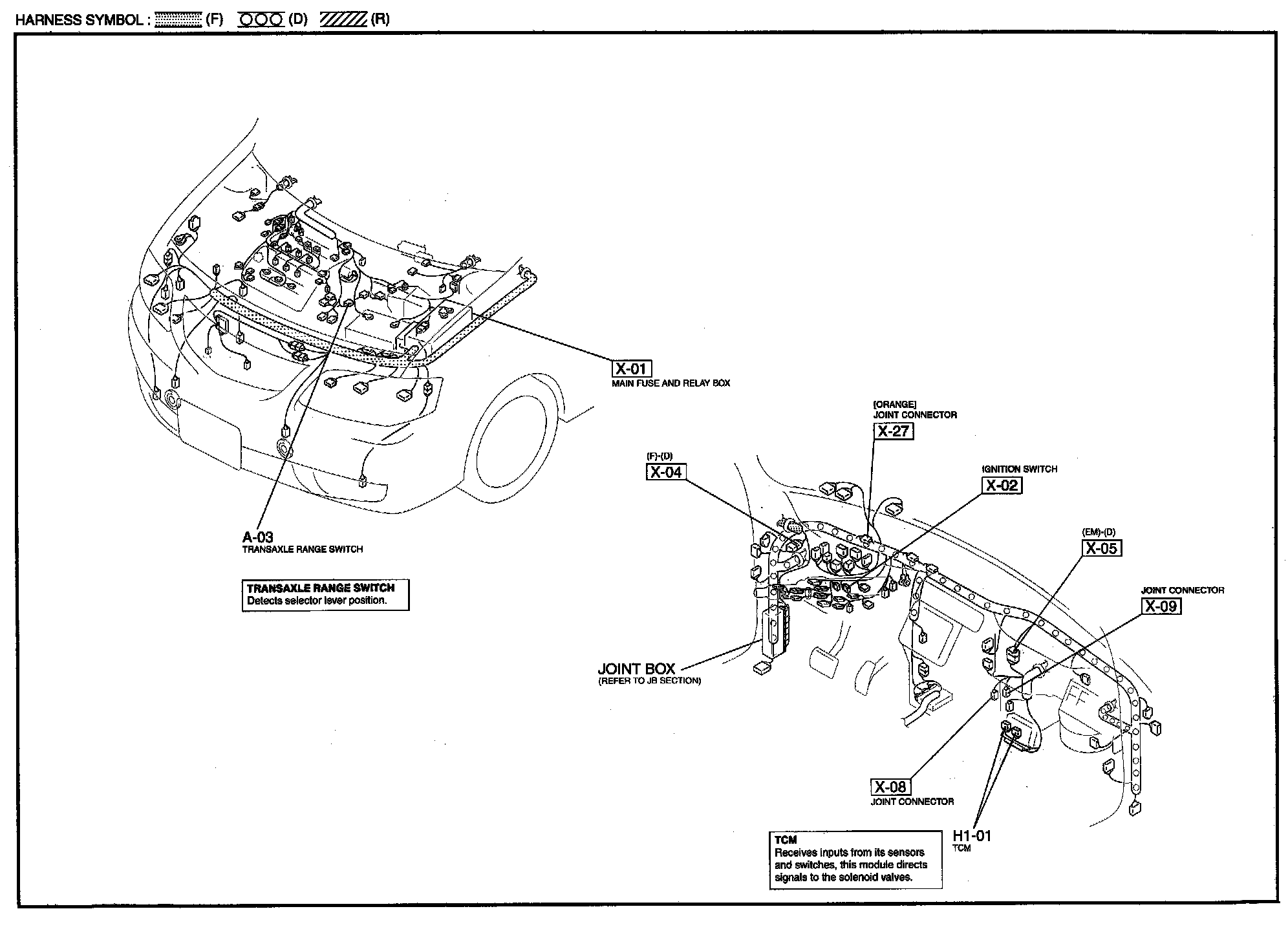

H-1a - EC-AT Control System Harness/Connector Symbols:

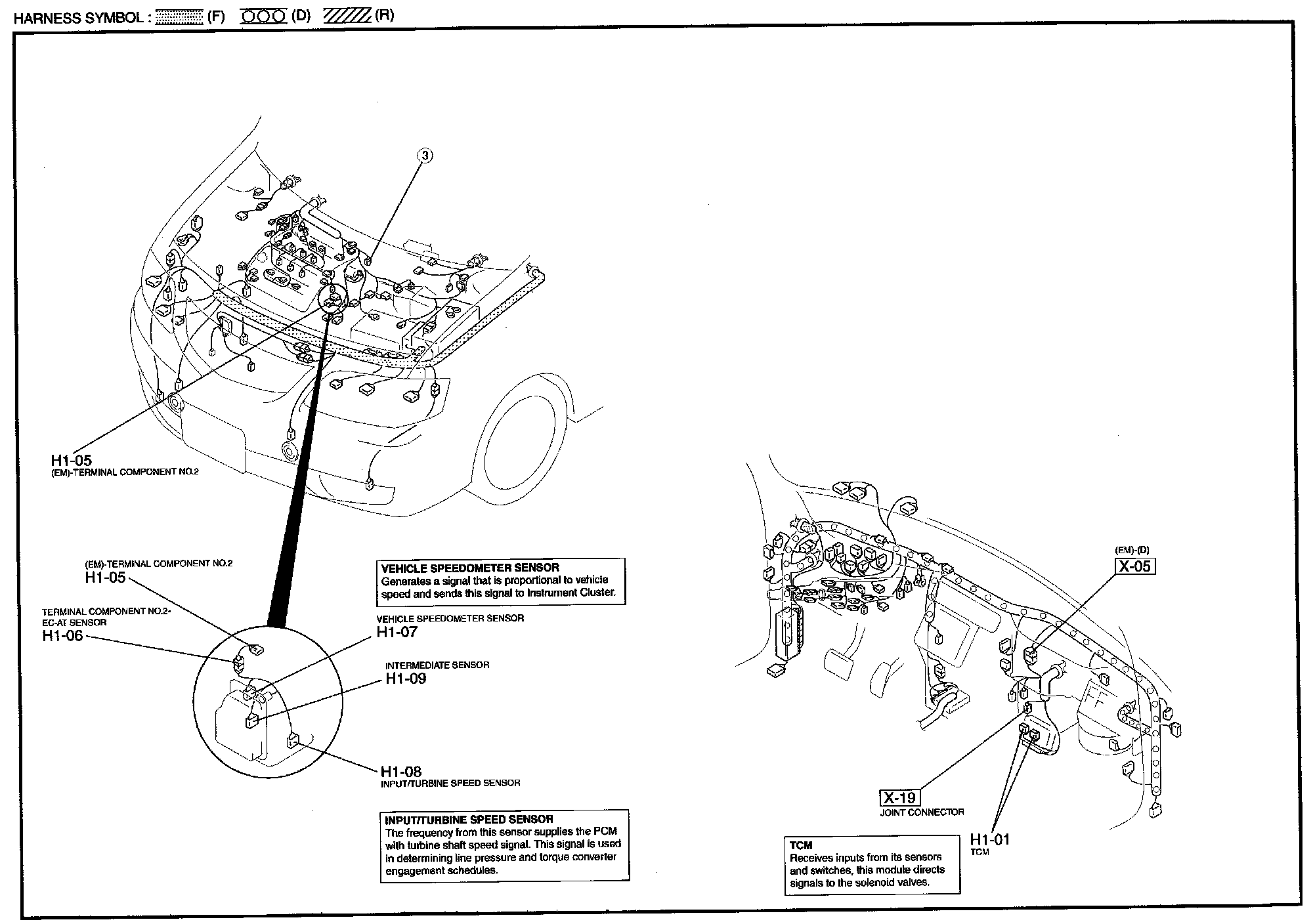

H-1b - EC-AT Control System Harness/Connector Symbols:
H-1c - EC-AT Control System Harness/Connector Symbols:
