Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2002
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
T-2b - Theft-Deterrent System
T-2b - Theft-Deterrent System

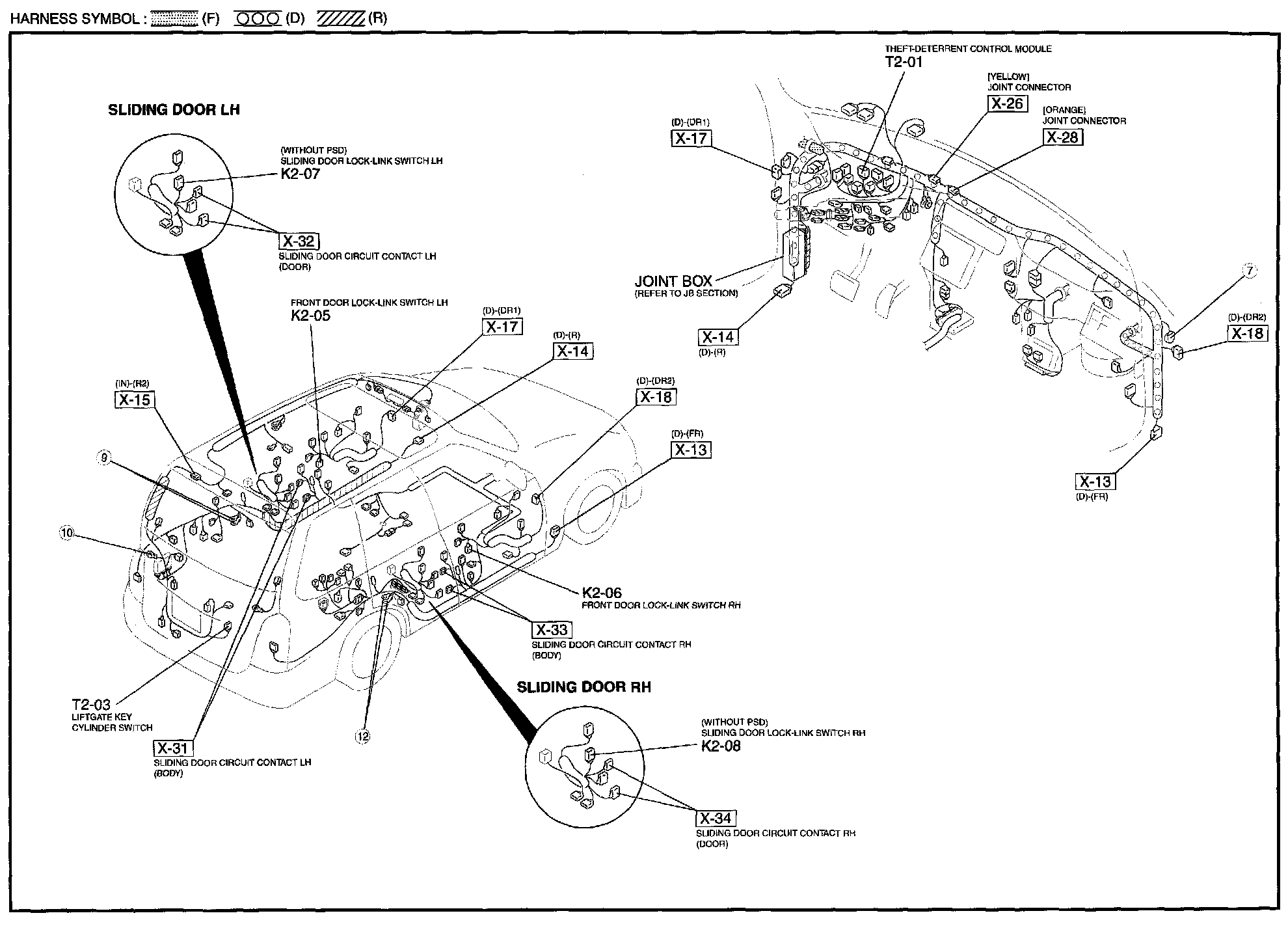

T-2b - Theft-Deterrent System Harness/Connector Symbols:
