Vehicle Speedometer Sensor Inspection
VEHICLE SPEEDOMETER SENSOR (VSS) INSPECTIONOn-Vehicle Inspection

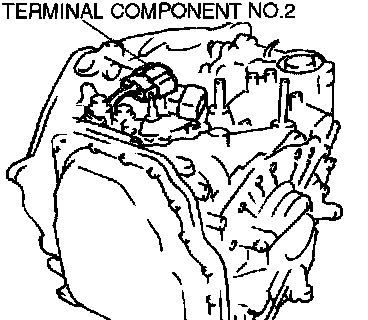

1. Disconnect the terminal component No. 2 connector.

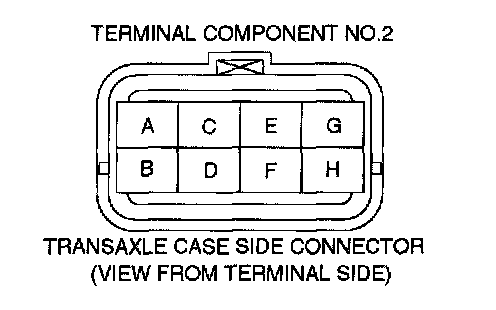

2. Measure resistance between the terminals A and B.
^ If not as specified, inspect the VSS sensor.
Resistance (ATF temperature: 20°C {68°F}) 513 - 627 ohms
3. Connect the terminal component No. 2 connector.
Inspection of Individual Part
1. Remove the VSS sensor.

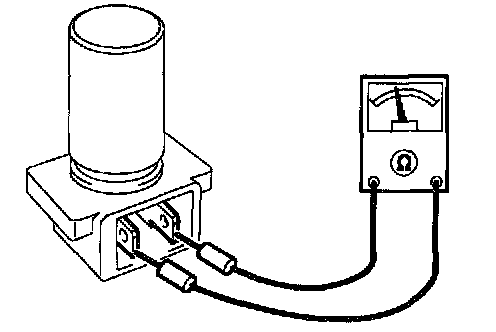

2. Measure resistance between the terminals of the VSS speed sensor.
^ If not as specified, replace the VSS sensor.
^ If it is normal, replace the harness.
Resistance (ATF temperature: 20°C {68°F}) 513 - 627 ohms
3. Install the VSS sensor.
