Power Sliding Door (PSD) Control Module

POWER SLIDING DOOR (PSD) CONTROL MODULE REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.

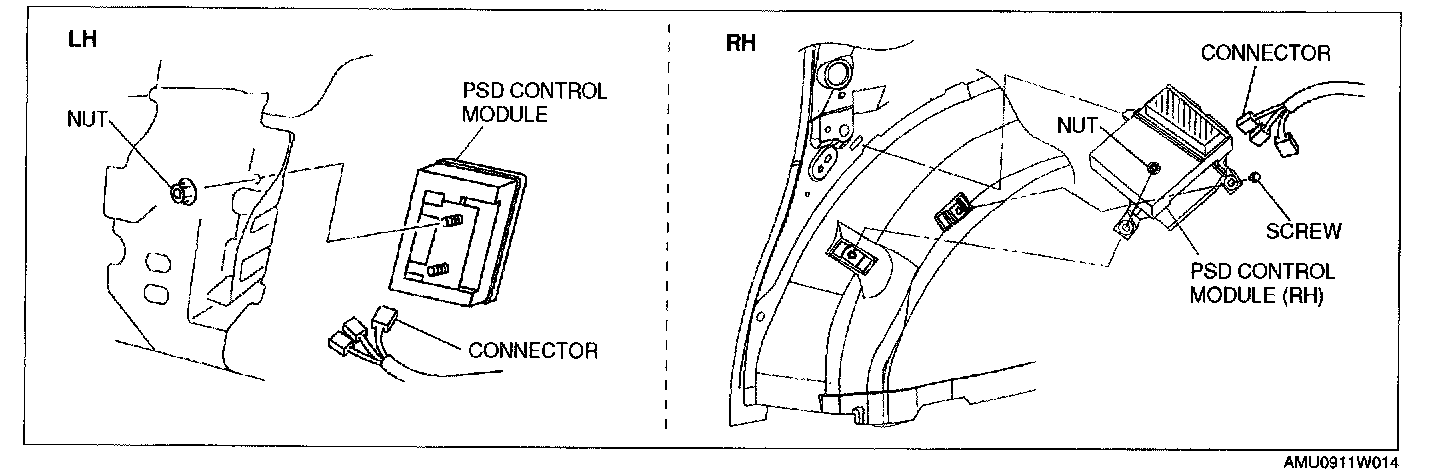

2. Remove the rear side trim.
3. Remove the woofer. (LH only)
4. Remove the nuts, and screw.
5. Remove the PSD control module.
6. Disconnect the PSD module connector.
7. Install in the reverse order of removal.
